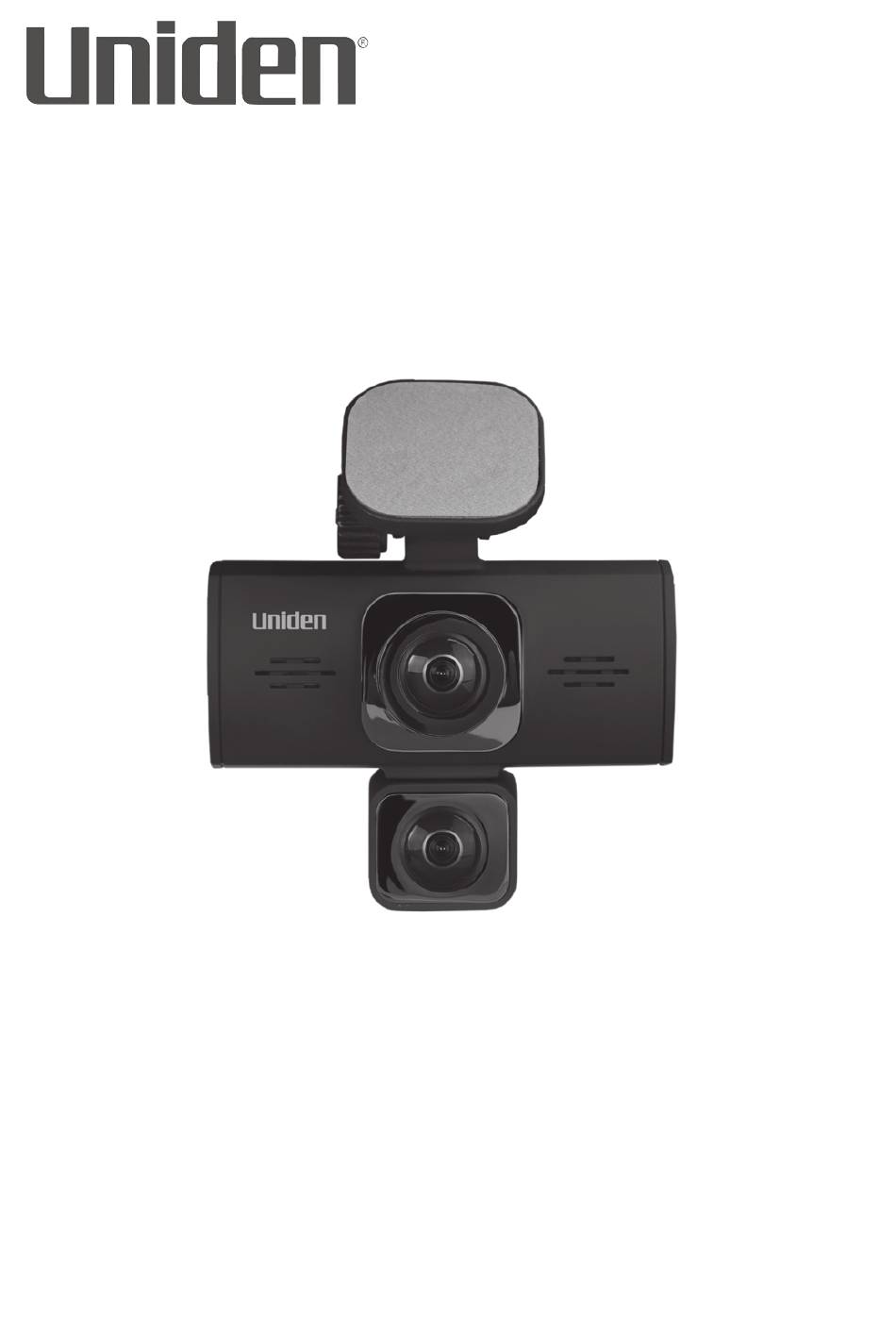

- Page 1 DC360 AUTOMOTIVE VIDEO RECORDER OWNER’S MANUAL © 2018 Uniden America Corporation Issue 2, August 2018 Irving, Texas Printed in China...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Uniden does not represent this product to be waterproof. Do not expose this product to rain or moisture. • This product is intended for use in a motor vehicle. Don’t install the device where it will block the driver’s view of the road (including the mirrors) or the deployment of the airbag. -
Page 3: Table Of Contents
CONTROLS AND INDICATORS ........7 INSTALLATION AND POWER UP ......7 INSTALLING THE MICROSD CARD ..........7 ATTACHING THE WINDSHIELD MOUNT ........8 POWERING UP THE DC360 ............8 OPERATING THE DC360 ..........9 SCREEN SELECTION ..............9 SELECT LANGUAGE ..............10 OPERATING MODES .............. - Page 4 TROUBLESHOOTING ..........15 SPECIFICATIONS ............16 ONE-YEAR LIMITED WARRANTY ......19...
-
Page 5: Overview
The built-in G-Sensor system triggers the camera to instantly begin recording if the vehicle is bumped or scraped. The DC360 can even record outside the vehicle for the duration of the internal battery’s power. -
Page 6: What's In The Box
WHAT’S IN THE BOX? Uniden DC360 16GB MicroSD card Also Included: Printed Materials Car Charger - USB Connection If any items are missing or damaged, get answers 24/7 at our website: www.uniden.com. -
Page 7: Controls And Indicators
INSTALLATION AND POWER UP INSTALLING THE MICROSD CARD A compatible microSD card (16 GB supplied) is required to record and store videos and photos. The unit can support microSDHC cards (High Capacity microSD) up to 64GB in capacity. Uniden recommends... -
Page 8: Attaching The Windshield Mount
Tighten the nut. Readjust the cameras if necessary. POWERING UP THE DC360 Only use the DC car adapter that comes with your device. Any other adapter might damage the device. Refer to your car’s owner’s manual to verify where the power outlets are on and around the dashboard. -
Page 9: Operating The Dc360
Half Full OPERATING THE DC360 SCREEN SELECTION The DC360 defaults to a split screen when you power it on. Press ▼ to cycle the screen from split screen to front camera, rear camera, and then back to split screen again. -
Page 10: Select Language
SELECT LANGUAGE The DC360 firmware can display in English, Spanish, or French. Select the display language from the Menu. Press . The menu displays. Press ▲ or ▼until Language displays. Press OK. Language options display. Press ▲ or ▼ to select the language you want and press OK. -
Page 11: Lock Current Recording
displays (hh:mm:ss) with a flashing red dot beside it to indicate recording is in progress. If the unit is not recording, press OK to start recording. A flashing red dot appears next to the timer. To stop recording, press OK and the red dot and timer disappear, indicating that recording has stopped. -
Page 12: Video Files
• Press OK. The recorded file plays. After the recorded file plays, the screen goes blank. • Press . Options to delete or save recorded files display. Video Files Video files are manually recorded files and files that record on power up. Press OK to select Video. A list of recorded files displays. - Page 13 Option Description Seamless Seamless allows you to set video file length [1, 2, or 3 (default) minutes; 3 minutes shown on icon). Selecting a file length activates loop recording (Seamless). When the microSD card fills up, it loops back to the oldest file and records over it.
-
Page 14: Screen Description
Option Description Power Save Sets the amount of time the camera is idle before it turns off. [15 sec, 30 sec, 1 min, Off (default)] Date Stamp Select how the date and time information displays on the screen. [Off, Date, Date&Time (default)] Date&Time Set the date and time. - Page 15 ON or ACC position. If you have connected your camera accordingly and it still remains on when the car is turned off, go to www. uniden.com for assistance.
- Page 16 General Problems Possible Solutions The unit cannot record • Ensure that the microSD card is formatted videos properly and inserted correctly. The unit automatically • Use the recommended stops when recording type of microSD card (minimum 16GB Class Video is unclear Ensure that there are no fingerprints or dirt on the lens.
- Page 17 Storage microSD (up to 64GB), Class 10 (16GB microSD card included) Video 1920x1080 Resolution View Angle 170° Power Supply Input: DC12V - 24V Output: 5VDC/1.0A Rechargeable 3.7V / 230mAh Battery Image Sensor Digital FHD color CMOS Video Frame 30fps Rate Frequency 50Hz/60Hz USB Port...
- Page 18 Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Avis de conformité à la FCC : Ce dispositif a été testé et s’avère conforme à l’article 15 des règlements de la Commission fédérale des communications (FCC).
- Page 19 WARRANTOR: Uniden America Corporation (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials & craftsmanship with only the limitations or exclusions set out below.
- Page 20 STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is in effect, warrantor will either, at its option, repair or replace the defective unit & return it to you without charge for parts, service, or any other cost (except shipping &...
- Page 21 Include evidence of original purchase & a note describing the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at: Uniden America Service C/O Saddle Creek 743 Henrietta Creek Rd., Suite 100 Roanoke, TX 76262...
