(2) Device Type Manager (DTM) and Device
Revision
When configuring the parameters by FieldMate, use the
DTM (Device Type Manager) of the following table.
DTM Name
DTM Revision
Device Type
Device Revision
* : The DTM is included in Yokogawa DTM Library HART 6.5
or later.
NOTE
The DTM revision can be confirmed by "DTM setup".
Device Files is a Media included in FieldMate. The user
registration site provides Device Files with the latest
update programs.
(URL: https://voc.yokogawa.co.jp/PMK/)
When updating the DTM, following operation by "DTM
setup" is required.
• Update DTM catalog
• Assign corresponding DTM to the device.
For details, read the user's manual of FieldMate.
AXW HART 7 DTM
5.6.4.0 or later *
AXW4A (0x371B)
1
<5. Basic Operating Procedures>
5.8

Modbus Configuration Tool

The connection of the Modbus configuration tool is shown
as below.
Read the user's manual of Modbus communication type
as listed in Table 1.1 for the detailed parameter setting via
Modbus communication.
5.8.1 Connections with Modbus
Configuration Tool
The Modbus configuration tool is connected to the
transmitter instead of Modbus host.
RS-485 USB Adaptor is required to connect transmitter
to PC.
See Figure 5.8.
LT Balanced Pair
B A C
R R
D D
ADMAG Slave n

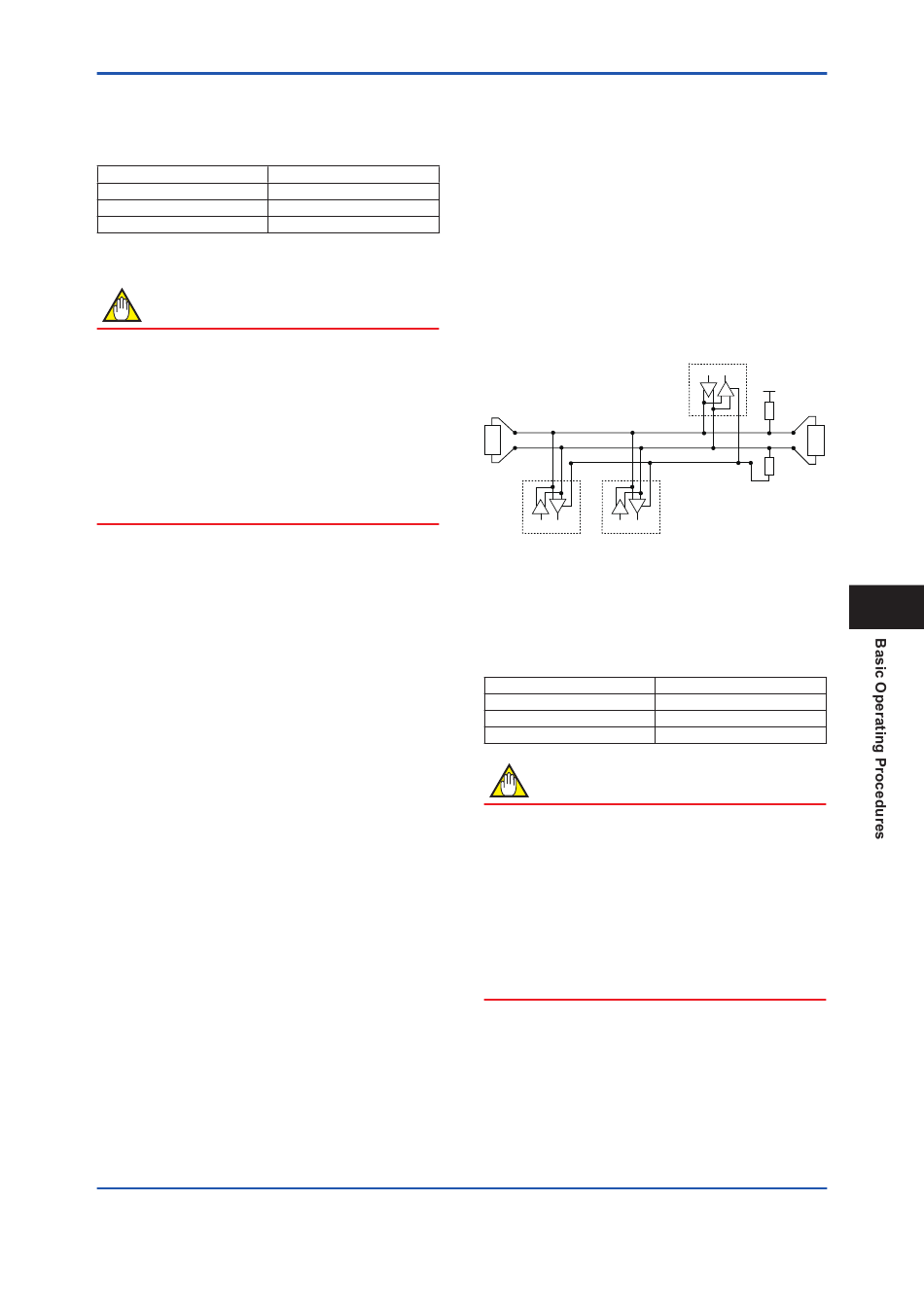

Figure 5.8 Connecting the Modbus Configuration tool
5.8.2 Modbus Configuration Tool and
Device Revision
When configuring the parameters by FieldMate, use the
DTM (Device Type Manager) of the following table.
DTM name
DTM Revision
Device type
Device Revision
NOTE
The DTM revision can be confirmed by "DTM setup".
Device Files is a Media included in FieldMate. The user
registration site provides Device Files with the latest
update programs.
(URL: https://voc.yokogawa.co.jp/PMK/)
When updating the DTM, following operation by "DTM
setup" is required.
• Update DTM catalog
• Assign corresponding DTM to the device.
For details, read the user's manual of FieldMate.
47
e.g. FieldMate
D
R
Pull Up
D1 (+) LT
D0 (-)
Common Pull Down
LT: Line Termination
F0531.ai
AXW4A Modbus DTM
1.0.1.0 or later
AXW4A
1
IM 01E25A01-01EN
