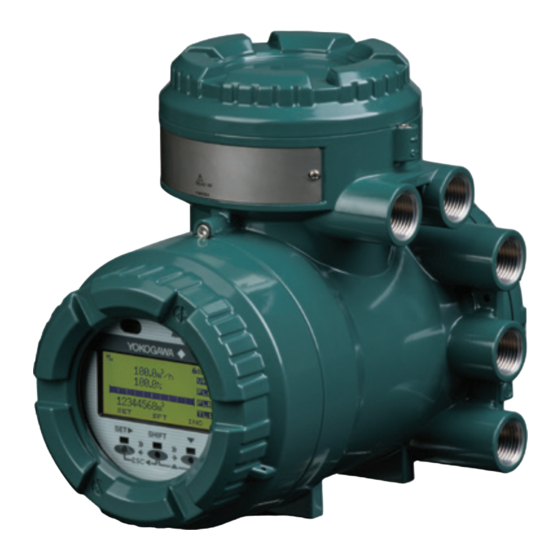

Admag AXG Series User Manual

User's
Manual
IM 01E21A21-01Z1
This manual contains important information for safe operation of this product and common
information among user's manuals on this product. Should thoroughly read this manual prior to
other manuals before using this product.
n Regarding This User's Manual
• This manual should be provided to the end user.
• The contents of this manual are subject to change
without prior notice.
• All rights reserved. No part of this manual may be
reproduced in any form without YOKOGAWA's written
permission.
• YOKOGAWA makes no warranty of any kind with
regard to this manual, including, but not limited to,
implied warranty of merchantability and fi tness for a
particular purpose.
• If any question arises or errors are found, or if any
information is missing from this manual, inform the
nearest YOKOGAWA sales offi ce.
• The specifi cations covered by this manual are limited
to those for the standard type under the specifi ed
model number break-down and do not cover custom-
made products.
• Note that changes in the specifi cations, construction,
or component parts of the product may not
immediately be refl ected in this manual at the time of
change, provided that postponement of revisions will
not cause diffi culty to the user from a functional or
performance standpoint.
• This manual is intended for the following personnel;
Engineers responsible for installation and wiring of
the product.
Personnel responsible for normal daily operation and
maintenance of the product.
• This manual is part of the product. Keep on safe
place for future reference.
NOTE
When describing the model name like AXG### in
this manual, "###"means any of the following.
For AXG###:
002, 005, 010, 015, 025, 032, 040, 050, 065,
080, 100, 125, 150, 200, 250, 300, 350, 400
For AXW###:
025, 032, 040, 050, 065, 080, 100, 125, 150,
200, 250, 300, 350, 400
ADMAG TI Series
AXG###, AXW###, AXG4A, AXW4A
Magnetic Flowmeter
Read Me First
To ensure correct use this product, read the following
manuals. Read the following general specifi cations for
its specifi cation.
Enable to download the following YOKOGAWA's web
page.
http://www.yokogawa.com/fld/
IM 01E21A21-01Z1
IM 01E21A21-02EN
IM 01E21A03-03EN
IM 01E21A03-04JA
IM 01E22A01-01EN
IM 01E22A01-02EN
IM 01E22A02-01EN
IM 01E22A02-02EN
IM 01E21A02-05EN
IM 01E24A01-01EN
IM 01E24A01-02EN
IM 01E24A02-01EN
IM 01E24A02-02EN
GS 01E22A01-01EN
GS 01E24A01-01EN
All Rights Reserved. Copyright © 2017, Yokogawa Electric Corporation.
Document No. Document Title
ADMAG TI Series
AXG###, AXW###, AXG4A, AXW4A
Magnetic Flowmeter
Read Me First
ADMAG TI Series
AXG/AXW Magnetic Flowmeter
Safety Manual
ADMAG TI Series
AXG and AXW Magnetic Flowmeter
IECEx Explosion Protection Type
ADMAG TI Series
AXG Magnetic Flowmeter
Japan Explosion Protection Type
ADMAG TI Series
AXG Magnetic Flowmeter
Installation Manual
ADMAG TI Series
AXG Magnetic Flowmeter
Maintenance Manual
ADMAG TI Series
AXG Magnetic Flowmeter
BRAIN Communication Type
ADMAG TI Series
AXG Magnetic Flowmeter
HART Communication Type
ADMAG TI Series
AXG, AXW Magnetic Flowmeter
Modbus Communication Type
ADMAG TI Series
AXW Magnetic Flowmeter
[Size: 25 to 400 mm (1 to 16 in.)]
Installation Manual
ADMAG TI Series
AXW Magnetic Flowmeter
[Size: 25 to 1800 mm (1 to 72 in.)]
Maintenance Manual
ADMAG TI Series
AXW Magnetic Flowmeter
BRAIN Communication Type
ADMAG TI Series
AXW Magnetic Flowmeter
HART Communication Type
ADMAG TI Series
AXG Magnetic Flowmeter
ADMAG TI Series
AXW Magnetic Flowmeter
[Size: 25 to 400 mm (1 to 16 in.)]
Note: The last 2 digits at the document number express a
described language.
IM 01E21A21-01Z1
1st Edition June 2017 (KP)
3rd Edition Oct. 2018 (KP)
