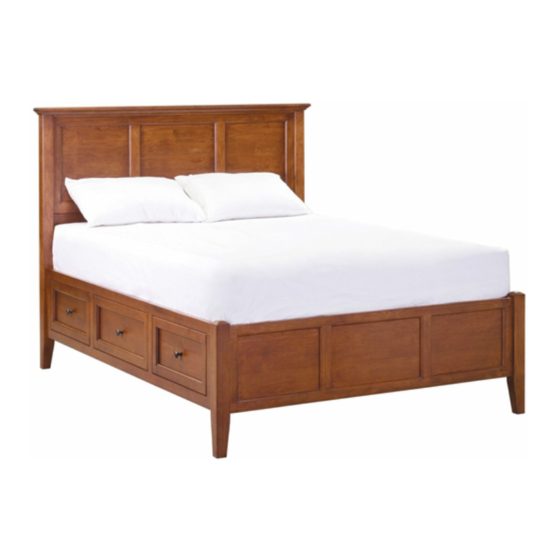

McKenzie Storage Beds
GAC = Glazed Antique Cherry finish
CAF = Caffe finish
Assembly Instructions
Model #
1316GACf
1316CAFf
McKenzie
Queen Storage
Bed
McKenzie King Storage
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
1326GACe
1326CAFe
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Remove items before you move this unit.
• Do not overload the drawers.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
Bed
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
WARNING
Production Code:
VN
05/17
Advertisement
Related Manuals for Whittier Wood 1316GACf
Summary of Contents for Whittier Wood 1316GACf
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 #10 x 3/4" Pan Head Screw (inserted) #8 x 1-1/4" Pan Head Screw (inserted) #8 x 1" Black Screw (inserted) Left Bracket (attached) Right Bracket (attached) 1/4" T-Nut (inserted) #8 x 1-5/8" Black Screw (inserted) Foot Bracket (attached) 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 2 — 05/17...
- Page 3 #10 x 3/4" Pan Head Screw (inserted) #8 x 1-1/4" Pan Head Screw (inserted) #8 x 1" Black Screw (inserted) Left Bracket (attached) Right Bracket (attached) 1/4" T-Nut (inserted) #8 x 1-5/8" Black Screw (inserted) Foot Bracket (attached) 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 3 — 05/17...
- Page 4 #6 x 1/2" Philtruss Screw (inserted) #6 x 3/4" Philtruss Screw (inserted) #8 x 7/8" Black Lo-Profile Screw (inserted) #8 x 1" Black Screw (inserted) Left Bracket (attached) Right Bracket (attached) #8 x 1-5/8" Black Screw (inserted) 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 4 — 05/17...
- Page 5 Place both Pedestals (Id) approximately 63" apart for #1316 Queen Bed, or 79" apart for #1326 King Bed as shown in Figures 2 and 2a. (For 1316) 63" Fig. 2 (For 1326) 79" Fig. 2a 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 5 — 05/17...
- Page 6 To attach the Footboard (Ba/Bb) to the Pedestal Assembly (Id), align the Brackets and slide the Pedestal Assembly down on to the Footboard (Ba/Bb). See Figures 3 and 3a. Ba/Bb Fig. 3a Fig. 3 Repeat step three for the left side. Fig. 4 Fig. 4a 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 6 — 05/17...
- Page 7 & 1326GACe, 1326CAFe McKenzie King Storage Bed Assembly Instructions This assembly requires two people. Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the Headboard (A). See Figure 5. Fig. 5 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 7 — 05/17...
- Page 8 Insert two 1/4" x 1-3/4" Hex Bolts (F) and Washers (H) and tighten. See Figures 6 and 6a. Brace Fig. 6a Footboard Da/Db First brace Da/Db Da/Db Second brace Fig. 6 Headboard removed for illustration purposes. 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 8 — 05/17...
- Page 9 Insert two 1/4" x 1-3/4" Hex Bolts (F) and Washers (H) and tighten. See Figures 7 and 7a. Repeat for the fourth braces. Trestle with T-Nuts (Da/Db) Brace Fourth brace Fig. 7a Da/Db Da/Db Third brace Fig. 7 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 9 — 05/17...
- Page 10 Trestles. Attach with Washers (H) and 1/4" x 1-3/4" Hex Bolts (F). See Figures 8 and 8a. Trestle with T-Nuts (Da/Db) Ua/Ub Fig. 8a Fourth set of Trestles Ua/Ub Third set Ua/Ub of Trestles Fig. 8 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 10 — 05/17...
- Page 11 Place your bed in its final position. Adjust all three Glides (W) found at the bottoms of the Assembled Feet so that the Glides just touch the floor. IMPORTANT: Make sure the Glides touch the floor and carry weight. Fig. 9a Ua/Ub Second set of Trestles Fig. 9 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 11 — 05/17...
- Page 12 10. Facing the Footboard, attach the Pedestal Assembly to the Footboard with a 90º Bracket (YG) and four #6 x 1/2" Philtruss Screws (YD). Repeat for the other side. See Figures 10 and 10a. Fig. 10a Fig. 10 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 12 — 05/17...
- Page 13 Fig. 11 12. Place the Deckboards (Pd) as shown in Figure 12 and secure with twenty-four #8x1-1/4" Black Screws (E). There should be a small gap between each deckboard. x 24 Fig. 12 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 13 — 05/17...
- Page 14 13. Place the Center Deckboard (Rb) as shown in Figure 13 and secure with twelve #8 x 1-1/4" Black Screws (E). If you need to readjust the center feet, remove the Center Deckboard, adjust the glides and reattach the deckboard. x 12 Fig. 13 1316GACf, 1316CAFf_1326GACe, 1326CAFe — Page 14 — 05/17...
