Model #
1375GACh
1375CAFh

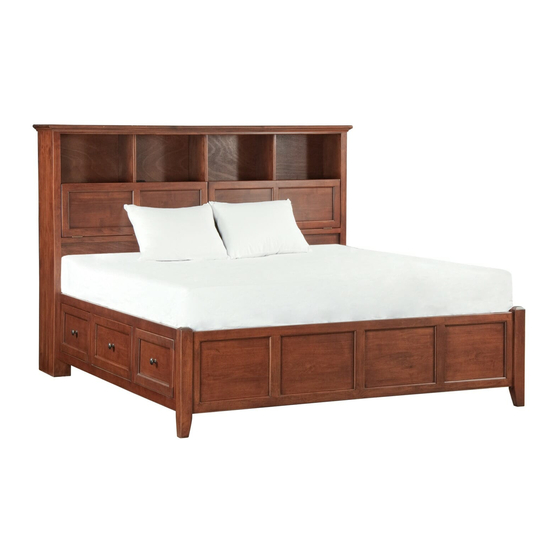

McKenzie King
Bookcase Storage
Bed
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Unload items before you move this unit.
• Do not overload the concealed storage areas.
• Do not overload the drawers.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
10/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood 1375GACh
Summary of Contents for Whittier Wood 1375GACh
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. 1377GACh 1377CAFh Headboard Kit (x1)
- Page 3 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Parts List 18mm Washer (inserted) #8 x 1-1/4" Pan Head Screw (inserted) #8 x 2-1/4" Black Screw (inserted) #8 x 1" Black Screw (inserted) Left Bracket (attached) Right Bracket (attached) Wire Clip Screw (attached) Tack Glide (attached) 1/4"...
- Page 4 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Parts List 1378GACh 1378CAFh Footboard Kit (x1) Part Description Quantity Footboard Assembly Trestle With T-Nuts #8 x 1-1/4" Black Screw (9 inserted) 1/4" x 1-3/4" Hex Bolt Assembled Foot Adjustable Glide (installed) #6 x 1/2" Philtruss Screw...
- Page 5 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Parts List 1318GACe 1318CAFe Pedestal Kit (x2) Part Description Quantity #8 x 1-1/4" Black Screw (inserted) Pedestal Kit Small Drawer Box (assembled) Large Drawer Box (assembled) Small Drawer Face (attached) Large Drawer Face (attached) #8 x 1-1/2"...
- Page 6 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, Slotted screwdriver, 7/16" open end or box end wrench and Tape measure. Note: The Headboard Assembly can be separated into three pieces for ease of maneuvering through narrow halls and stairways;...
- Page 7 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. To attach the Footboard (Ba) to the Pedestal Assembly (Id), align the Brackets and slide the Pedestal Assembly down on to the Footboard (Ba). See Figures 3 and 3a.
- Page 8 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the Headboard (Ah). See Figure 5. Fig. 5 1375GACh_1375CAFh — Page 8 — 10/17...
- Page 9 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. Open the drawers. Face the Footboard and stand in between the first and second braces. Place a Trestle with T-Nuts (Da) on the outside surfaces of the first upper left and right braces so that the T-Nuts (ZU) sit near the top.
- Page 10 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. Face the Headboard and stand in between the third and fourth braces. Place a Trestle with T-Nuts (Da) on the outside surfaces of the third upper left and right braces so the T-nuts sit near the top.
- Page 11 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. NOTE: There are blocks mounted on the back side of the Footboard to support the end of the pedestal eliminating the need for an Assembled Foot in this position where it would be easily visible.
- Page 12 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. NOTE: There are blocks mounted on the back side of the Footboard to support the end of the pedestal eliminating the need for an Assembled Foot in this position where it would be easily visible.
- Page 13 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. 10. Facing the Footboard, attach the Pedestal Assembly to the Footboard with a 90º Bracket (YI) and four #6 x 1/2" Philtruss Screws (YD). Repeat for the other side. See Figures 10 and 10a.
- Page 14 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. 11. Place your bed in its final position. Adjust all three Glides (W) found at the bottoms of the Assembled Feet (Ua) so that the Glides just touch the floor. See Figure 11.
- Page 15 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. 12. To make sure the bed is square, measure the distance between opposing corners. If one of the measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 12.
- Page 16 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. 14. Place the Center Deckboard (YG) as shown in Fig.14 and secure it with twelve #8 x 1-1/4" Black Screws (E). If you need to readjust the center feet in the future, remove the center deckboard (YG) to improve access, rotate the glides and then attach the center deckboard.
- Page 17 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. 16. Unwrap the False Bottoms (Sh) and place them on top of the rails in the Headboard Assembly (Ah). Make sure the finger holes face forward as shown in Figure 16. After you have placed your electronics inside the cubbies, use the Wire Clips (ZS) on the underside of the cubbies to secure the wires.
- Page 18 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. 18. Figure 18 shows the locations of the screws that need to be removed. You can access these from the front of the unit. Remove the #8 x 1-3/8" Lo-Profile Screws (YK) attaching the Sides and Vertical Dividers to the Top, and #8 x 1-1/4"...
- Page 19 1375GACh 1375CAFh McKenzie King Bookcase Storage Bed Assembly Instructions This assembly requires two people. 20. Carefully separate the two halves of the Case Assembly. See Figures 20 and 20a. Fig. 20a Fig. 20 21. After moving the headboard sections into your room reassemble the Headboard by reversing steps 17-20.
