Note: For infrared burner equipped
grills; see detailed instructions
included in your owner's manual.
Cooking grid
Backburner
cover
Flavor grid
(not with IR)
Warming
rack
Sideburner
lid
Drip tray
liners
Cotter
pin
Drip tray (with
lighting instructions)
Door

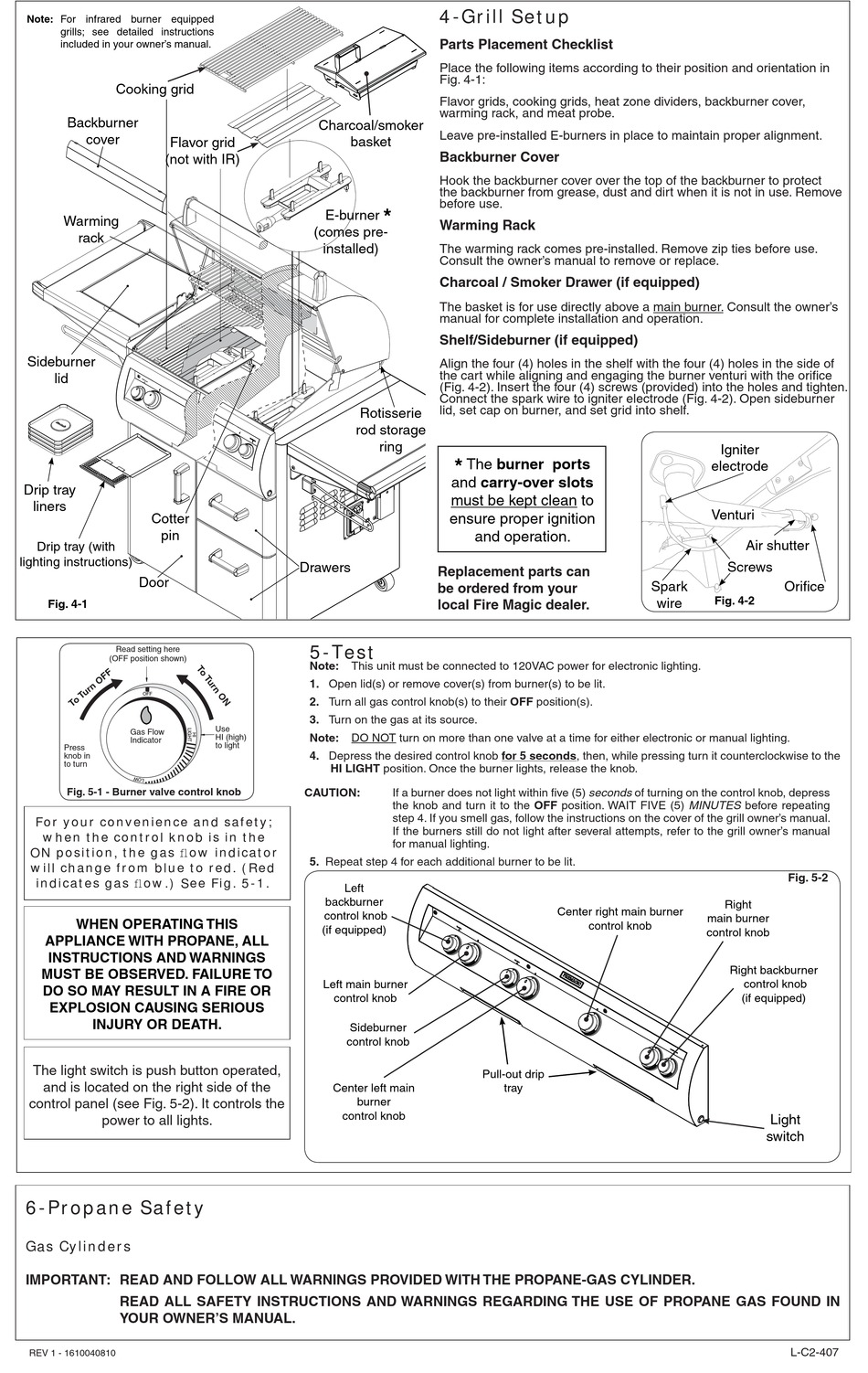

Fig. 4-1
Read setting here
Read setting
(OFF position shown)
here
OFF
Gas Flow
Indicator
Press
knob in
to turn
Fig. 5-1 - Burner valve control knob
For your convenience and safety;
when the control knob is in the
ON position, the gas fl ow indicator
will change from blue to red. (Red
indicates gas fl ow.) See Fig. 5-1.
WHEN OPERATING THIS
APPLIANCE WITH PROPANE, ALL
INSTRUCTIONS AND WARNINGS
MUST BE OBSERVED. FAILURE TO
DO SO MAY RESULT IN A FIRE OR
EXPLOSION CAUSING SERIOUS
INJURY OR DEATH.
The light switch is push button operated,
and is located on the right side of the
control panel (see Fig. 5-2). It controls the
power to all lights.
6-Propane Safety
Gas Cylinders
IMPORTANT: READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.
READ ALL SAFETY INSTRUCTIONS AND WARNINGS REGARDING THE USE OF PROPANE GAS FOUND IN
YOUR OWNER'S MANUAL.
REV 1 - 1610040810
Charcoal/smoker
basket
E-burner
(comes pre-
installed)
Rotisserie
rod storage
Drawers
5-Test
Note: This unit must be connected to 120VAC power for electronic lighting.
1. Open lid(s) or remove cover(s) from burner(s) to be lit.
2. Turn all gas control knob(s) to their OFF position(s).
3. Turn on the gas at its source.
Use
HIGH to
LIGHT
Note: DO NOT turn on more than one valve at a time for either electronic or manual lighting.
HI (high)
to light
4. Depress the desired control knob for 5 seconds, then, while pressing turn it counterclockwise to the
HI LIGHT position. Once the burner lights, release the knob.
CAUTION:
5. Repeat step 4 for each additional burner to be lit.
Left
backburner
control knob
(if equipped)
Left main burner
control knob
Sideburner
control knob
Center left main
burner
control knob
4-Grill Setup
Parts Placement Checklist
Place the following items according to their position and orientation in
Fig. 4-1:
Flavor grids, cooking grids, heat zone dividers, backburner cover,
warming rack, and meat probe.
Leave pre-installed E-burners in place to maintain proper alignment.
Backburner Cover
Hook the backburner cover over the top of the backburner to protect
the backburner from grease, dust and dirt when it is not in use. Remove
before use.
*
Warming Rack
The warming rack comes pre-installed. Remove zip ties before use.
Consult the owner's manual to remove or replace.
Charcoal / Smoker Drawer (if equipped)
The basket is for use directly above a main burner. Consult the owner's
manual for complete installation and operation.
Shelf/Sideburner (if equipped)
Align the four (4) holes in the shelf with the four (4) holes in the side of
the cart while aligning and engaging the burner venturi with the orifi ce
(Fig. 4-2). Insert the four (4) screws (provided) into the holes and tighten.
Connect the spark wire to igniter electrode (Fig. 4-2). Open sideburner
lid, set cap on burner, and set grid into shelf.
ring
*
The burner ports
and carry-over slots
must be kept clean to
ensure proper ignition
and operation.
Replacement parts can
be ordered from your
local Fire Magic dealer.
If a burner does not light within fi ve (5) seconds of turning on the control knob, depress
the knob and turn it to the OFF position. WAIT FIVE (5) MINUTES before repeating
step 4. If you smell gas, follow the instructions on the cover of the grill owner's manual.
If the burners still do not light after several attempts, refer to the grill owner's manual
for manual lighting.
Pull-out drip
tray
electrode
Venturi
Spark
Fig. 4-2
wire
Center right main burner
main burner
control knob
control knob
Igniter
Air shutter
Screws
Orifi ce
Fig. 5-2
Right
Right backburner
control knob
(if equipped)
Light
switch
L-C2-407
