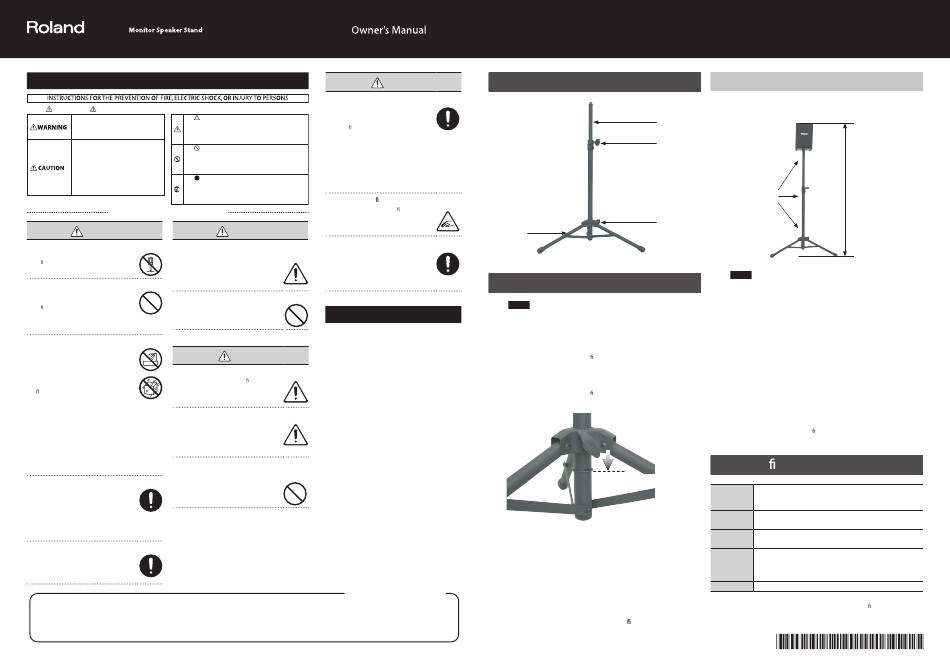

Roland ST-CMS1 Owner's Manual

USING THE UNIT SAFELY
About WARNING and CAUTION Notices About the Symbols
The symbol alerts the user to important instructions or
Used for instructions intended to alert the
warnings.The specific meaning of the symbol is
user to the risk of death or severe injury
determined by the design contained within the triangle. In
should the unit be used improperly.
the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
Used for instructions intended to alert the
The symbol alerts the user to items that must never be
user to the risk of injury or material
carried out (are forbidden). The specific thing that must
damage should the unit be used
not be done is indicated by the design contained within
improperly.
the circle. In the case of the symbol at left, it means that
* Material damage refers to damage or
the unit must never be disassembled.
other adverse effects caused with
The symbol alerts the user to things that must be
respect to the home and all its
carried out. The specific thing that must be done is
furnishings, as well to domestic animals
indicated by the design contained within the circle. In the
or pets.
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
ALWAYS OBSERVE THE FOLLOWING
WARNING
Do not disassemble or modify by yourself Adults must provide supervision in places where
children are present
Do not open or perform any internal
modi cations on the stand.
When using the stand in locations where children
are present, be careful so no mishandling of the
stand can take place. An adult should always be
Do not repair or replace parts by yourself on hand to provide supervision and guidance.
Do not attempt to repair the stand, or replace
Do not drop or subject to strong impact
parts within it (except when this manual provides
speci c instructions directing you to do so). Protect the stand from strong impact.
Refer all servicing to your retailer, the nearest
(Do not drop it!)
Roland Service Center, or an authorized Roland
distributor, as listed on the "Information" page.
Do not use or store in the following types of locations
• Subject to temperature extremes (e.g.,
direct sunlight in an enclosed vehicle, near
a heating duct, on top of heat-generating
Use only stand manufactured by Roland
equipment); or are
This stand for use only with speci c Roland
• Damp (e.g., baths, washrooms, on wet
musical instruments. Use with other models is
oors); or are
capable of resulting in instability causing possible
injury.
• Exposed to steam or smoke; or are
Evaluate safety issues before using stands
• Subject to salt exposure; or are
Even if you observe the cautions given in the
• Humid; or are
owner's manual, certain types of handling may
allow the speaker to fall from the stand, or cause
• Exposed to rain; or are
the stand to overturn. Please be mindful of any
• Dusty or sandy; or are
safety issues before using this stand.
• Subject to high levels of vibration and
Avoid climbing on top of the stand, or placing heavy
shakiness.
objects on it
Precautions regarding placement of this stand Never climb on top of, nor place heavy objects
on the tripod.
Be sure to follow the instructions in the Owner's
Manual carefully when placing this unit on a
stand.
If it is not set up properly, you risk creating an
unstable situation which could lead to the unit
falling or the stand toppling, and may result in
injury.
Do not place in an unstable location
Make sure you always have the stand placed so
it is level and sure to remain stable. Never place
it on stands that could wobble, or on inclined
surfaces.
This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.
ST-CMS1
CAUTION
Cautions when moving this unit
If you need to move the stand, take note of the
precautions listed below. It should be handled
carefully, all the while keeping it level. Make sure
to have a rm grip, to protect yourself from injury
and the instrument from damage.
• Check to make sure the knob of the stand
have not become loose. Fasten them
again securely whenever you notice any
loosening.
• Disconnect all cords coming from external
devices.
Take care not to get ngers pinched by tripod
Be careful so you don't get your ngers pinched
when you handle any moving parts such as
the tripod. Adult supervision is recommended
WARNING whenever small children use the stand.
Keep small items out of the reach of children
To prevent accidental ingestion of the parts listed
below, always keep them out of the reach of
small children.
• Removable Parts
Washers
IMPORTANT NOTES
Placement
• Do not expose the unit to direct sunlight, place it near
CAUTION
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature
extremes. Excessive heat can deform or discolor the
unit.
• Depending on the material and temperature of the
surface on which you place the stand, its rubber feet
may discolor or mar the surface.
You can place a piece of felt or cloth under the rubber
feet to prevent this from happening. If you do so,
please make sure that the stand will not slip or move
accidentally.
Maintenance
• For everyday cleaning wipe the stand with a soft,
dry cloth or one that has been slightly dampened
with water. To remove stubborn dirt, use a cloth
impregnated with a mild, non-abrasive detergent.
Afterwards, be sure to wipe the stand thoroughly with
a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of
any kind, to avoid the possibility of discoloration and/
or deformation.
• Company names and product names appearing
in this document are registered trademarks or
trademarks of their respective owners.
For C.A. US (Proposition 65)
WARNING
Before using this stand, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES".
These sections provide important information concerning the proper operation of the stand. Additionally, in order to feel assured that you have gained a good grasp of
every feature provided by your new stand, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
Copyright © 2012 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Roland is a registered trademark or trademark of Roland Corporation in the United States and/or other countries.
Names of Things
Upper tube
Height adjustment
knob
Tripod knob
Tripod
Attachment Procedure
NOTE
• Be careful so as not to drop the speaker when attaching or removing
it.
• Always have at least one other person assist you when mounting the
satellite speaker on ST-CMS1, or when adjusting the height of the
ST-CMS1 while the satellite speaker remains mounted on it.
• Be careful not to pinch your ngers, when you assemble.
1.
Fully extend the tripod.
* Be careful not to pinch your ngers when extending the tripod.
* Do not remove the tripod knob.
Extend it all the way to the ring
2.
Firmly tighten the tripod knob.
3.
Align the screw hole on the bottom of the speaker with the
screw threads of the upper pipe, then revolve the speaker to
fasten it in place.
Attach it using the speaker's 5/8 inch hole.
If the speaker has a 3/8 inch hole, use the included adaptor to attach it.
4.
Loosen height adjustment knob and make upper tube longer.
5.
Once you have it at the desired height, rmly tighten the
height adjustment knob.
Caution Regarding Placement
As shown in the illustration below, position it so that the total height
(including the satellite speaker) does not exceed 120 cm.
120 cm (3' 11-1/4") or less
Cable tie
NOTE
• If the ST-CMS1 is higher than 120 cm (including the satellite speaker),
or if the legs are not spread out, the ST-CMS1 and speaker may tip
over, causing injury or damage.
• When using ST-CMS1 to support the satellite speakers, do not place
them at unstable or inclined locations. You must place the ST-CMS1
on a stable and horizontal surface.
• Make sure to appropriately manage the cables connected to the
satellite speakers so as to prevent accidents, such as might be caused
by someone tripping over them.
• Using the supplied cable ties, secure the cables you've connected to
the ST-CMS1.
• To prevent the stand and speaker from tipping over, do not place
anything on a satellite speaker mounted on the ST-CMS1.
• After mounting a satellite speaker on the ST-CMS1, be sure to verify
that it does not wobble.
• Firmly tighten the hardware of the ST-CMS1 so that the satellite
speaker does not move to left or right.
• Be careful not to pinch your ngers when mounting the satellite
speaker.
Main Speci cations
Refer to the Roland website for the latest information on compatible
Compatible
models.
models
http://www.roland.com/
5.6 kg
Weight-bearing
capacity
12 lbs 6 oz
4.4 kg
Weight
9 lbs 12 oz
620 (W) x 540 (D) x 770–1,300 (H) mm
24-7/16 (W) x 21-5/16 (D) x 30-3/8–51-3/16 (H) inches (When set up)
Dimensions
125 (W) x 125 (D) x 755 (H) mm
4-15/16 (W) x 4-15/16 (D) x 29-3/4 (H) inches (folded)
Accessories
Owner's Manual, Cable tie x 3, Adaptor
* In the interest of product improvement, the speci cations and/or
appearance of this stand are subject to change without prior notice.
