DeviceNet
RS 232 Interface Module
(Catalog Number 1770-KFD and 1770-KFDG)
To the Installer

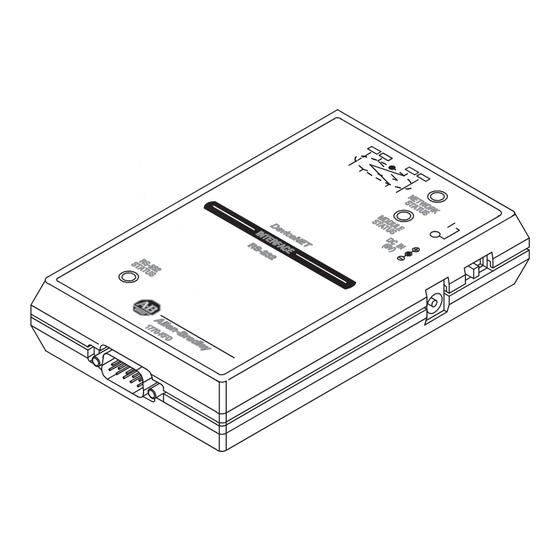

The 1770-KFD module is a portable RS-232 communication interface that
provides a host computer access to a DeviceNett network.
This document contains this information:
topic
purpose and audience
precautionary statements
handling the module
terminology
related publications
contents of your order
introduction to the RS 232 module
communicating on DeviceNet
mounting the module
supplying power
connecting cables via RS 232 to a computer
connecting cables via RS 232 to a modem
connecting cables via DeviceNet
installing the 1770 KFD driver
interpreting status indicators
specifications
support services
New or modified information is highlighted by a revision bar.
Packing Data
Installation Instructions
page
2
2
4
4
4
5
8
9
10
12
14
16
17
22
23
25
26
Publication 1770 5.6 - June 1996
PK
Advertisement
Related Manuals for Allen-Bradley 1770-KFD
Summary of Contents for Allen-Bradley 1770-KFD
-
Page 1: Installation Instructions
Installation Instructions DeviceNet RS 232 Interface Module (Catalog Number 1770-KFD and 1770-KFDG) To the Installer The 1770-KFD module is a portable RS-232 communication interface that provides a host computer access to a DeviceNett network. This document contains this information: topic page... - Page 2 If you ordered catalog no. 1770-KFDG, your order also includes a global 9V ac power supply adapter (90 – 260V ac). If you are missing any of these pieces, contact your Allen-Bradley sales representative. Publication 1770 5.6 - June 1996...
- Page 3 DeviceNet RS-232 Interface Module Introducing the 1770 KFD Interface Module The 1770-KFD module, described in Figure 1, is a portable RS-232 communication interface that provides a host computer access to a DeviceNet network. RS 232 cable host computer 1770 KFD...
- Page 4 DeviceNet RS-232 Interface Module Communicating on DeviceNet The 1770-KFD module lets you communicate: • point-to-point (host computer directly to device via the 1770-KFD module) The host computer uses a point-to-point connection for node and/or parameter configuration. device 1770 KFD module...
- Page 5 The 1770-KFD module performs data transmission, management, and local network diagnostics. Allen-Bradley DeviceNet Manager software, 1787-MGR, manages data transmission and reception through the 1770-KFD interface module from a personal computer (Windowst operating system). Mounting the 1770 KFD Module You can mount the module on a DIN rail.
-
Page 6: Specifications
DeviceNet RS-232 Interface Module Specifications communication rate RS 232 selectable rates: • 1200 baud 19,200 baud • 2400 38,400 • 4800 57,600 • 9600 DeviceNet selectable rates: • 125K baud • 250K • 500K function to monitor and configure devices on DeviceNet network location anywhere via personal computer...
