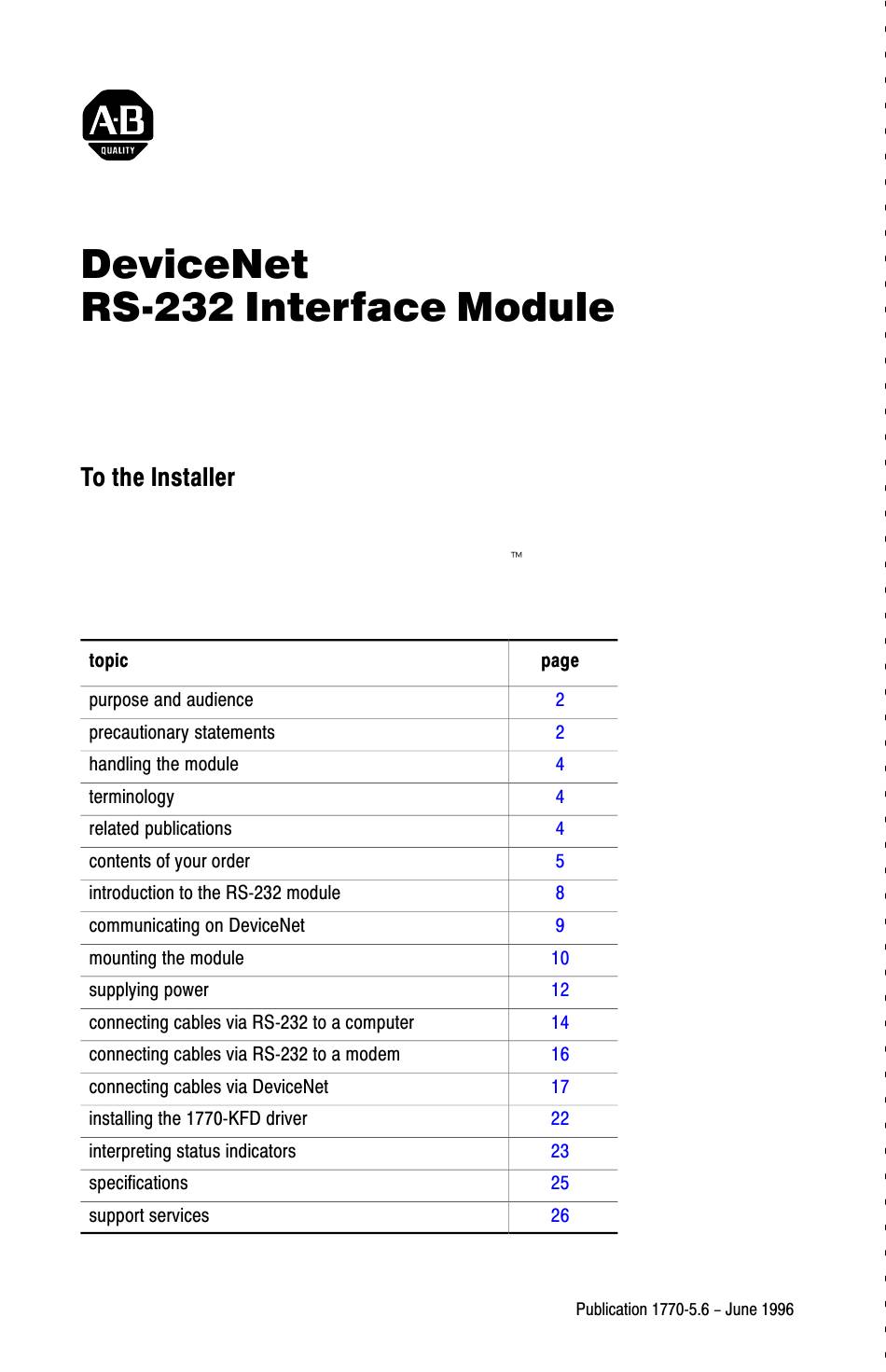

Installation Instructions
(Catalog Number 1770-KFD and 1770-KFDG)
The 1770-KFD module is a portable RS-232 communication interface that
provides a host computer access to a DeviceNet
network.
This document contains this information:
Allen-Bradle
New or modified information is highlighted by a revision bar.
Advertisement
Related Manuals for Allen-Bradley 1770-KFDG
Summary of Contents for Allen-Bradley 1770-KFDG
- Page 1 Installation Instructions (Catalog Number 1770-KFD and 1770-KFDG) The 1770-KFD module is a portable RS-232 communication interface that provides a host computer access to a DeviceNet network. This document contains this information: Allen-Bradle New or modified information is highlighted by a revision bar.
-
Page 2: Precautionary Statements
DeviceNet RS-232 Interface Module Purpose Use this document to learn how to install and use the DeviceNet RS-232 interface module. Audience Read this manual before you install or use the DeviceNet RS-232 interface module. You should be familiar with DeviceNet technology. Precautionary Statements ATTENTION: Important:... - Page 3 EN 61131-2 Programmable Controllers, Part 2 – Equipment Requirements and Tests. For specific information that the above norm requires, see the appropriate sections in this manual, as well as the following Allen-Bradley publications: Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 Guidelines for Handling Lithium Batteries, publication AG-5.4...
-
Page 4: Handling The Module
DeviceNet RS-232 Interface Module Handling the Module ATTENTION: This RS-232 module uses CMOS technology, which is highly sensitive to electrostatic discharge (ESD). ESD may be present whenever you are handling the module. Take these precautions to guard against electrostatic damage: Avoid touching the interface connector pins on the RS-232 module. - Page 5 1770-5.6, DeviceNet RS-232 Interface Module Installation Instructions If you ordered catalog no. 1770-KFDG, your order also includes a global 9V ac power supply adapter (90 – 260V ac). If you are missing any of these pieces, contact your Allen-Bradley sales representative.
- Page 6 DeviceNet RS-232 Interface Module Available options: global 9V ac power supply adapter (90 – 260V ac), which comes with catalog no. 1770KFDG/A domestic 9V ac power supply adapter (120V ac), which you can order separately as catalog no. 1787USADPTR/A Each adapter connects to the power supply connector on the 1770-KFD module. See page for additional information.
- Page 7 6 ft, unsealed-to-sealed DeviceNet drop cable (catalog no. 1787-MCABL), which you can order separately Allen-Bradley Each cable connects to the 5-pin unsealed receptacle on the 1770-KFD module. See cable connection information beginning on page 17.
- Page 8 DeviceNet RS-232 Interface Module The 1770-KFD module, described in Figure 1, is a portable RS-232 communication interface that provides a host computer access to a DeviceNet network.
- Page 9 DeviceNet RS-232 Interface Module The 1770-KFD module lets you communicate: point-to-point (host computer directly to device via the 1770-KFD module) The host computer uses a point-to-point connection for node and/or parameter configuration. via a DeviceNet network connection Allen-Bradley...
- Page 10 DeviceNet RS-232 Interface Module The 1770-KFD module performs data transmission, management, and local network diagnostics. Allen-Bradley DeviceNet Manager software, 1787-MGR, manages data transmission and reception through the 1770-KFD interface module from a personal computer (Windows operating system). You can mount the module on a DIN rail.
- Page 11 DeviceNet RS-232 Interface Module 2. Snap the mounting brackets onto the DIN rail. Allen-Bradley...
- Page 12 9V dc at 1 amp. Figure 3 shows the global power supply, which takes 90 – 260V ac, 47 – 63 Hz, and outputs 9V dc. This power supply is available only with the 1770-KFD module as catalog no. 1770-KFDG.
- Page 13 Supplying Power to a Device The module can supply power to a device in a point-to-point connection. The device being powered in a point-to-point connection can draw a maximum of 100 mA at 12V dc 5%. Allen-Bradley...
- Page 14 DeviceNet RS-232 Interface Module Use the wiring key molded on the bottom of the 1770-KFD module when connecting the RS-232 cable to a computer. Use these wiring configurations:...
- Page 15 DeviceNet RS-232 Interface Module RS-232 Cable Connections (via 9-pin serial port connector) These pin numbers correspond with these connections: Connect the 1770-KFD module to a computer by using the RS-232 cable. Allen-Bradley...
- Page 16 DeviceNet RS-232 Interface Module Using the Interface Module with a Portable Computer Some portable computers have power-saving modes that power down the serial ports during inactive periods, occurring most often when batteries power the PC. The serial-port power-saving feature causes the RS-232 interface module to go offline and to cease communication with DeviceNet Manager.
- Page 17 1. Connect the DeviceNet cable (trunkline or dropline) to the unsealed DeviceNet terminal connector. 2. Connect the terminal connector to the 1770-KFD module. Important: DeviceNet cable connections should match color bars/electrical diagram on top of 1770-KFD module. See the table below. Allen-Bradley...
- Page 18 DeviceNet RS-232 Interface Module Connecting the 1770-KFD Module to DeviceNet Devices (Point-to-Point) You can connect the module to a sealed or an unsealed device in a point-to-point configuration. Connect to an unsealed device in one of two ways: use a 1787-PCABL probe cable use DeviceNet drop or trunk cable...
- Page 19 DeviceNet RS-232 Interface Module Connect to a sealed device in one of three ways: use a 1787-TCABL T-tap cable (and power supply) use a 1787-TCABL T-tap cable (and draw power from the network) Allen-Bradley...
- Page 20 DeviceNet RS-232 Interface Module use a 1787-MCABL unsealed drop cable (and power supply) Probing a Network You can probe a sealed or an unsealed network with the 1770-KFD module. Probe an unsealed network in one of two ways: use a 1787-PCABL probe cable...
- Page 21 DeviceNet RS-232 Interface Module use a DeviceNet terminal connector Probe a sealed network in this way: use a 1787-MCABL unsealed drop cable Allen-Bradley...
- Page 22 DeviceNet RS-232 Interface Module If you are using a WinDNet -compatible application, you must install the 1770-KFD driver. Follow these steps: 1. Start Windows 3.1, Windows 95, or Windows NT. 2. Select Run from the File menu. 3. On the command line, type a:\setup as shown here: 4.
- Page 23 The three status indicators on the module give you information about your network and its connections. Figure 4 identifies each status indicator. The tables on page outline the indicator condition and the corresponding status, and explain what each condition means to you. Allen-Bradley...
- Page 24 DeviceNet RS-232 Interface Module Module Status Indicator Network Status Indicator RS-232 Status Indicator...
- Page 25 DeviceNet RS-232 Interface Module Allen-Bradley...
-
Page 26: Technical Support
DeviceNet RS-232 Interface Module At Allen-Bradley, customer service means experienced representatives at Customer Support Centers in key cities throughout the world for sales, service, and support. Our value-added services include: Technical Support SupportPlus programs telephone support and 24-hour emergency hotline... - Page 27 DeviceNet RS-232 Interface Module Allen-Bradley...
- Page 28 DeviceNet is a trademark of the Open Device Vendors Association (ODVA). WinDNet and PLC-5 are trademarks of Allen-Bradley Company, Inc. Windows and Windows NT are trademarks of Microsoft.
