Summary of Contents for Kodak iSow 1000

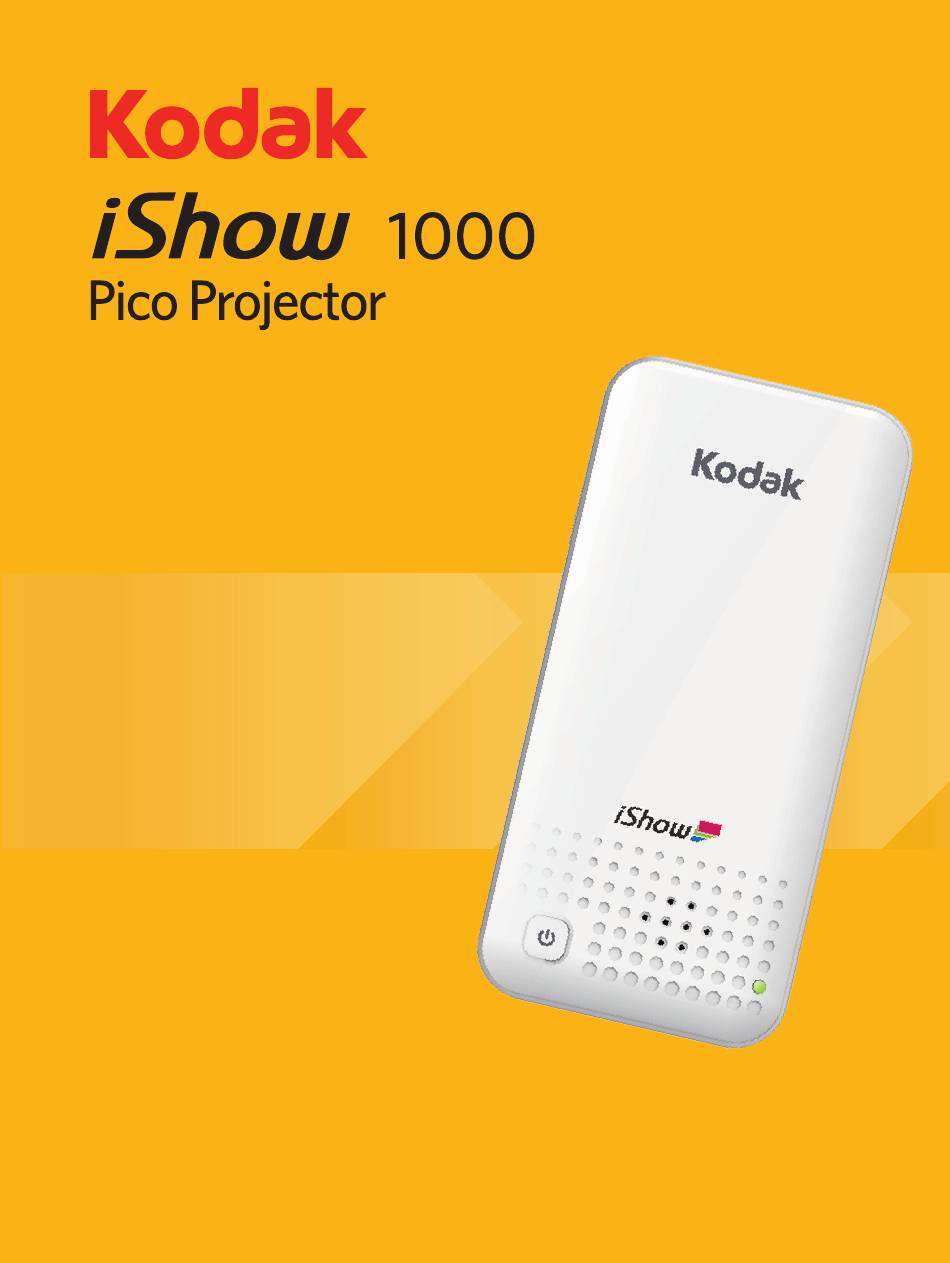

- Page 1 User Manual...
-
Page 2: Table Of Contents
CONTENTS CONTENTS............1 BEFORE.YOU.START........3 FCC.Warning................. 3 For.Customers.in.Europe............4 About.this.Manual..............4 SAFETY.PRECAUTIONS........5 GETTING.READY..........6 Accessories.Included............. 6 Part.Names................7 Charging.Battery..............8 Downloading.and.installing.iShow.(wireless.projector).app. . . 9 Basic.Operations.of.the.Projector......10 Turning.on.the.projector. - Page 3 Setup.iShow.(wireless.projector).app.for. projection............12 For.iOS.system..............12 For.Android.system..............13 For.Windows.system............. 15 Set.the.application.(available.only.in.wireless. connection)............17 SSID..................17 Hibernation./.Sleep.Mode............17 Keystone.Correction.............. 18 About..................18 Using.HDMI.for.projection.........19 Firmware.Update..........20 Specifications............21...
-
Page 4: Before.you.start
BEFORE YOU START FCC Warning This.equipment.has.been.tested.and.found.to.comply.with.the.limits.for.a. Class.B.digital.device,.pursuant.to.Part.15.of.the.FCC.Rules..These.limits. are.designed.to.provide.reasonable.protection.against.harmful.interference. in.a.residential.installation..This.equipment.generates.uses.and.can.radiate. radio.frequency.energy.and,.if.not.installed.and.used.in.accordance.with. the.instructions,.may.cause.harmful.interference.to.radio.communications.. However,.there.is.no.guarantee.that.interference.will.not.occur.in.a.particular. installation..If.this.equipment.does.cause.harmful.interference.to.radio.or. television.reception,.which.can.be.determined.by.turning.the.equipment.off. and.on,.the.user.is.encouraged.to.try.to.correct.the.interference.by.one.or. more.of.the.following.measures: --. Reorient.or.relocate.the.receiving.antenna... --. Increase.the.separation.between.the.equipment.and.receiver..--. Connect.the.equipment.into.an.outlet.on.a.circuit.different.from.that.to. which.the.receiver.is.connected... --. Consult.the.dealer.or.an.experienced.radio/TV.technician.for.help. This.device.complies.with.part.15.of.the.FCC.Rules..Operation.is.subject.to. the.following.two.conditions: (1).This.device.may.not.cause.harmful.interference,.and.(2).this.device.must. accept.any.interference.received,.including.interference.that.may.cause. undesired.operation. Changes or modifications not expressly approved by the party responsible for.compliance.could.void.the.user's.authority.to.operate.the.equipment. -
Page 5: For.customers.in.europe
For Customers in Europe "CE".mark.indicates.that.this.product.complies.with.the.European.. requirements.for.safety,.health,.environment,.and.customer.. protection.."CE".marked.products.are.intended.for.sales.in.Europe. This.symbol.[crossed-out.wheel.bin.WEEE.Annex.IV].indicates. separate.collection.of.electrical.waste.and.electronic.equipment.in. the.European.countries..Please.do.not.throw.the.equipment.into. domestic.refuse..Please.use.the.return.and.collection.systems.. available.in.your.country.for.proper,.safe.disposal.of.this.product. About this Manual Thank.you.for.purchasing.this.KODAK.iShow.1000.Pico.Projector..Please. read.this.manual.carefully.and.keep.it.in.a.safe.place.for.future.reference. . Windows.is.registered.in.the.United.States.and.other.countries.by.. Microsoft.Corporation,.and.its.trademark.use.rights.are.reserved.by. Microsoft.Corporation. . Product.names.and.trademarks.involved.in.the.Manual.are.for.illustrative. and identification purposes only. All of them are the registered . trademarks.or.copyrights.of.their.original.companies. . This.manual.provides.you.with.instructions.on.how.to.use.your.new.. KODAK.iShow.1000.Pico.Projector..Every.effort.has.been.made.to.en- sure.that.the.contents.of.this.manual.are.accurate,.however.JK.Imaging. Ltd..reserves.the.right.to.make.changes.without.notice. -
Page 6: Safety.precautions
SAFETY PRECAUTIONS When.using.a.pico.projector,.please.note.the.following.safety.precautions.to. prevent.damage.to.the.product. . Do.not.dispose.of.improperly.or.expose.to.extreme.heat. . Do.not.operate.the.pico.projector.in.moist.or.wet.environments..Exposure. to.water.may.cause.electrical.shock.or.other.injury. . Avoid.exposure.to.extreme.temperatures.as.this.may.damage.the.. pico.projector. . Do.not.operate.the.pico.projector.if.damaged..Disassembling.the.pico. projector.will.void.the.warranty. . Do.not.point.the.pico.projector.directly.into.your.eyes.or.those.of.anyone. else.while.in.use. . Do.not.place.or.store.the.pico.projector.on.a.wet.surface.or.in.places. where.dripping.water.or.sand.may.come.in.contact.with.the.. pico.projector;.doing.so.may.cause.irreparable.damage. . Keep.the.pico.projector.out.of.reach.of.babies,.small.children.and. animals. . Avoid.placing.pico.projector.on.a.vibrating.or.an.unstable.surface. . If.the.projector.lens.is.dirty,.use.a.soft.cleaning.cloth.to.clean.the.lens. . Do.not.use.pico.projector.in.the.following.types.of.locations. 1.. In.rain,.very.humid.or.dusty.environments. 2.. In.a.place.where.pico.projector.can.be.exposed.directly.to.sunlight.or. subject.to.high.temperatures,.e.g..inside.a.closed.car.in.summer. 3. In a place where the pico projector is subject to a high magnetic field, e.g..near.motors,.transformers.or.magnets. -
Page 7: Getting.ready
GETTING READY Accessories Included Your.KODAK.iShow.1000.Pico.Projector.box.should.contain.the.pico.projector. you.purchased.along.with.the.following.accessories..If.anything.is.missing.or. appears.to.be.damaged,.please.contact.your.retailer. Quick.Start.Guide CD-ROM Service.Card Warranty.Card AC.Adapter... -
Page 8: Part.names
Part Names Focus.Slider Speaker Status.Indicator Power.Button Earphone.jack Power.inlet HDMI.Port Tripod.Receptacle Support Reset.hole Lens... -
Page 9: Charging.battery
Charging Battery 1.. Ensure.the.projector.is.turned.off.and.connect.it.to.the.power.charger. 2.. Insert.the.plug.of.the.power.charger.into.the.wall.outlet.to.charge.the. battery. 3.. Charging.indicator:. Red:.Charging. Green:.Charging.complete 4.. To.have.maximum.battery.life,.charge.the.battery.for.at.least.4.hours.the. first time. -
Page 10: Downloading.and.installing.ishow.(Wireless.projector).App
Downloading and installing iShow (wireless projector) app 1.. For.iOS.system.users:.Please.search.for.the.iShow (wireless projector) app. .in.the.App.Store,.download.the.app,.and.install.it.on.your.device. 2.. For.Android.system.users:.Please.search.for.the.iShow (wireless projector) app. .in.Google.Play,.download.the.app,.and.install.it.on. your.device. 3.. For.Windows.8/7.system.users:.Please.use.the.installing.software.item. on.the.CD-ROM.(included).to.conduct.the.installation.of.the.iShow (wireless projector) app. -
Page 11: Basic.operations.of.the.projector
Basic Operations of the Projector Turning on the projector 1.. Press.and.hold.the.power.button.for.three.seconds.to.power.up.the. projector..The.button.can.be.released.when.the.status.indicator.lights.up. 2.. The.projector.will.display.the.start.up.screen. Setting up the projector using the support 1.. Open.the.support. 2.. Place.the.projector.on.a.stable.surface. -
Page 12: Adjusting.focus
Adjusting focus 1.. Move.the.focus.slider.to.adjust.the.clarity.of.the.. projected.image. 2.. Stop.moving.the.slider.once.the.projected.image.. becomes.clear. Turning off the projector 1. Before turning off the projector, close any files that are being displayed. 2.. Press.and.hold.the.power.button.for.three.seconds.to.turn.off.the. projector. Resetting the projector In.case.the.projector.acts.erratically.and/or.the.system.crashes,.. please.press.the.reset.hole.(located.on.the.bottom.of.the.projector).. with a fine-like object (a paper-clip) to reset the projector. . The.projector.will.shut.down.and.restart.to.the.normal.state. -
Page 13: Setup Ishow (Wireless Projector) App For Projection
While.your.device.is.wirelessly.connected.to.the.KODAK.iShow.1000. Pico.Projector,.any.device.live.streaming.function.(such.as.YouTube. ® Facebook. ® ).and.web.browsers.will.be.disconnected.from.the.internet. You.cannot.be.wirelessly.connected.to.more.than.one.device.at.a.time. For iOS system 1.. To.correctly.use.KODAK.iShow.1000.Pico.Projector.to.project.data. from your device. You may first need to download the iShow (wireless projector) app. .into.your.device,.then.sync.documents.from. computer.to.your.device. 2.. To.down.load.iShow (wireless projector) app..Turn.on.your.device. ® and activate internet connection first. Open the App Store .in.your. -
Page 14: For.android.system
11. By tapping the file type icons (Documents, Pictures, Video Files) at the top of the selection pane, you may navigate through your files much easier.while.projecting. For Android system 1.. To.correctly.use.KODAK.iShow.1000.Pico.Projector.to.project.data.from. your Android device. You may first need to download the iShow (wireless projector) app. .into.your.Android.device,.then.sync.documents.from. - Page 15 Android device first to enable iShow (wireless projector) app. locate files in the device. 5. Once files are completely saved in Android device, you are ready to proceed.step.6. 6.. To.connect.Android.device.and.KODAK.iShow.1000.Pico.Projector..First,. entering.the.setting.menu.and.activate.wireless.function.in.Android.device... Second,.power.on.your.KODAK.iShow.1000.Pico.Projector.by.pressing. the.power.button. .for.3.seconds.
-
Page 16: For.windows.system
10. By tapping the file type icons (Documents, Pictures, Video Files) at the top of the selection pane, you may navigate through your files much easier.while.projecting. For Windows system 1.. Use.enclosed.CD-ROM.to.install.iShow (wireless projector) app.on. your.computer. 2.. Power.on.your.KODAK.iShow.1000.Pico.Projector.by.pressing.the.power. button. .for.3.seconds. 3.. When.the.pico.projector.starts,.your.computer’s.wireless.network.will. automatically.detect.the.signal.“iShow-P02xxxxxxx”.(signal.name.is.the. same.as.the.SSID.name,.which.can.be.set.by.the.user)..Select.this.signal. - Page 17 .on.the.interface.of.iShow (wireless 5.. Click.the.setting.button. projector) app,.then.select.「Add.File.Folders」.to.add.the.folders. (you can add up to 10 folders) you would like to project in the file management. You.can.also.choose.「Open.File」 to select a single file in the file management,.and.click.「Send」.to.project. 6.. Click.the.setting.button. .again.to.return.to.the.previous.interface,. select the file you want to project by tapping on the applicable file in the selection.pane.
-
Page 18: Set The Application (Available Only In Wireless Connection)
Set the application (available only in wireless connection) In.iShow (wireless projector) app, tap the Setting button to configure . appropriate.settings.in.iShow (wireless projector) app..The.menu.tree. where.the.following.operations.are.found.under.the.settings.button.vary.by. device.and.version. You can configure: SSID You.may.change.the.name.of.the.wireless.network..You.may.also.set.the. network.security,.and.set.the.wireless.network.to.open.or.encrypted.mode. If.you.forget.the.set.SSID.password,.please.press.the.reset.hole. with a fine-like object and press the power button for 3 seconds simultaneously,.and.then.the.projector.will.reboot.and.restore.to. -
Page 19: Keystone.correction
Keystone Correction You.can.use. .and. .to.apply.keystone.correction.to.the.projected.screen. in.order.to.adjust.it.to.a.proper.shape.for.easy.viewing. About You can use this option to find out the current version and copyright . information.of.your.iShow (wireless projector) app.. -
Page 20: Using.hdmi.for.projection
Using HDMI for projection If.your.device.supports.HDMI.output,.you.can.use.an.HDMI.cable.to. connect.your.device.to.the.KODAK.iShow.1000.Pico.Projector.for. mirroring.what.is.on.your.display.regardless.of.any.app.running. Using the HDMI cable specifically designed for your device enables you.to.use.live.streaming.apps.(such.as.YouTube. ® .,.Facebook. ® while.running.the.KODAK.iShow.1000.Pico.Projector. 1.. Start.the.projector.. 2... Connect.the.KODAK.iShow.1000.Pico.Projector.to.your.device.using. the.HDMI.cable.(not.included).designed.for.your.device..The.image.from. your.device.will.then.be.displayed.by.the.projector.. Limitations.for.iOS:. (1).. iPad.1,.iPhone.4.and.below,.iPod.touch.gen.4.and.below,..support.HDMI.but.can.only.view.photos.and.video.. (2).. iPad.2.and.above,.iPhone.4S.and.newer,.support.HDMI.and.. can view any file. When.using.the.HDMI.projection,.the.KODAK.iShow.1000's.wireless. function.is.disabled. When.using.the.HDMI.projection,.the.supporting.resolution.will.be:. -
Page 21: Firmware.update
When there is a new version of firmware, follow the following steps to update the firmware of the projector: 1. Download the new firmware to the computer's hard drive. 2.. Turn.on.the.KODAK.iShow.1000.Pico.Projector.and.connect.to.the.power. charger. 3.. Use.the.wireless.network.to.connect.the.computer.containing.the. firmware upgrade to the projector. Open a web browser, and enter . -
Page 22: Specifications
Specifications Type Focus.Range. 5-50inches (diagonal) Throw.Distance Approx.16.5-165cm Projector Resolution 854×480.pixels Image.Brightness 35.Lumens Contrast.Ratio 500:1 Connector Power.inlet,.earphone.jack,.HDMI.Type.A Speaker Mixed.stereo.output Support.wireless.network *.jpg,.*.png;.photo.supports.up.to.24. Picture mega-pixels *.3gp,.*.mp4,.*.mov,.*.m4v;.supports.up. Video to.1080p30 Supported. Microsoft® Word® (*.doc, *.docx; Office projection. 2003,.2007.and.2010) file Microsoft®.PowerPoint®.(*.ppt,.*.pptx;. formats Office 2003, 2007 and 2010) Document Microsoft®... - Page 23 Android.2.3.0.or.higher,.iOS.4.3.1.or. Supported.operating.systems. higher,.Windows.7,.Windows.8 Focus.Control Manual Built-in.rechargeable.Li-polymer.battery. Power 3.7V.2800mAh Capability Up.to.90.mins Temperature:.32.~.95°F./.0.~.35°C,. Operation.Environment Humidity:.10.~.80% Temperature:.32.~.113°F./.0.~.45°C,. Storage.Environment Humidity:.0.~.60% Product.Dimension Approx.125.0×60.0×22.5mm Product.Weight Approx.165g...
- Page 24 The Kodak trademark and trade dress are used under license from Kodak. © 2013 by JK Imaging Ltd. All rights reserved. JK Imaging Ltd. 1411 W. 190th Street, Suite 550, Gardena, CA 90248, USA www.kodakcamera.jkiltd.com Ver.1...
