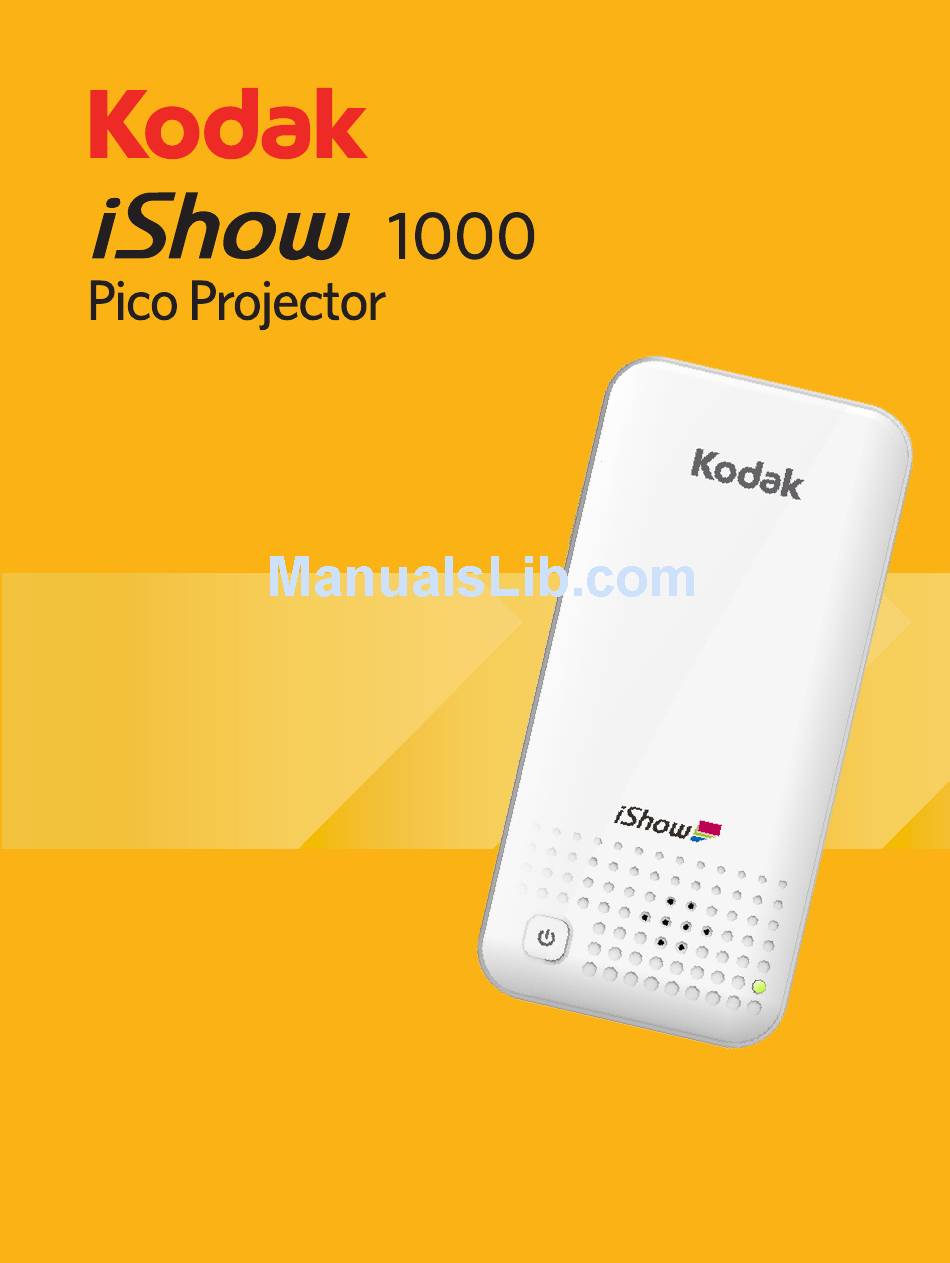

- Page 1 User Manual...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ............1 BEFORE YOU START ........3 FCC Warning ................3 For Customers in Europe ............4 About this Manual ..............5 SAFETY PRECAUTIONS ........6 GETTING READY ..........7 Accessories Included ...............7 Part Names ................8 Charging Battery ..............9 Downloading and installing iShow (wireless projector) app .. 10 Basic Operations of the Projector ....11 Turning on the projector ............ - Page 3 Turning off the projector ............12 Resetting the projector ............12 Setup iShow (wireless projector) app for projection ............13 For iOS system ..............13 For Android system ............... 14 For Windows system ............16 Set the application (available only in wireless connection) ............18 SSID ..................
-
Page 4: Before You Start
BEFORE YOU START FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: For Customers In Europe
For Customers in Europe This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of electrical waste and electronic equipment in the European countries. Please do not throw the equipment into domestic refuse. Please use the return and collection systems available in your country for proper, safe disposal of this product. -
Page 6: About This Manual

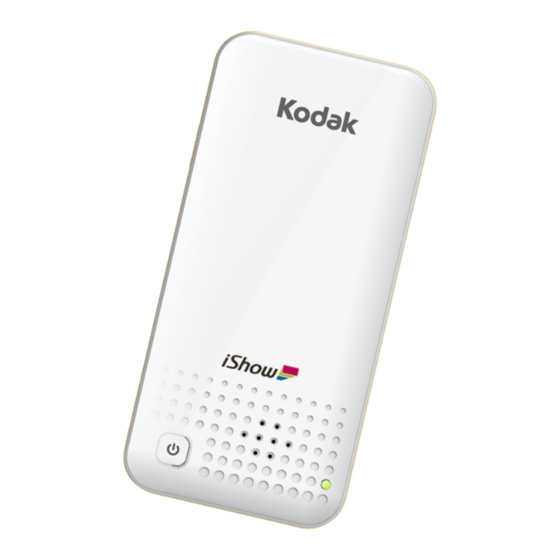

About this Manual Thank you for purchasing this KODAK iShow 1000 Pico Projector. Please read this manual carefully and keep it in a safe place for future reference. Windows is registered in the United States and other countries by Microsoft Corporation, and its trademark use rights are reserved by Microsoft Corporation. -
Page 7: Safety Precautions
SAFETY PRECAUTIONS When using a pico projector, please note the following safety precautions to prevent damage to the product. Do not dispose of improperly or expose to extreme heat. Do not operate the pico projector in moist or wet environments. Exposure to water may cause electrical shock or other injury. -
Page 8: Getting Ready
GETTING READY Accessories Included Your KODAK iShow 1000 Pico Projector box should contain the pico projector you purchased along with the following accessories. If anything is missing or appears to be damaged, please contact your retailer. Quick Start Guide CD-ROM... -
Page 9: Part Names
Part Names Focus slider Speaker Status indicator Power button Earphone jack Power inlet HDMI port Tripod receptacle Support Reset hole Lens... -
Page 10: Charging Battery
Charging Battery 1. Ensure the projector is turned off and connect it to the power charger. 2. Insert the plug of the power charger into the wall outlet to charge the battery. 3. Charging indicator: Red: Charging Green: Charging complete 4. -
Page 11: Downloading And Installing Ishow (Wireless Projector) App
Downloading and installing iShow (wireless projector) app 1. For iOS system users: Please search for the iShow (wireless projector) in the App Store ® , download the app, and install it on your device. 2. For Android system users: Please search for the iShow (wireless ®... -
Page 12: Basic Operations Of The Projector
Basic Operations of the Projector Turning on the projector 1. Press and hold the power button for three seconds to power up the projector. The button can be released when the status indicator lights up. 2. The projector will display the start up screen. Setting up the projector using the support 1. -
Page 13: Adjusting Focus
Adjusting focus 1. Move the focus slider to adjust the clarity of the projected image. 2. Stop moving the slider once the projected image becomes clear. Turning off the projector 1. Before turning off the projector, close any files that are being displayed. 2. -
Page 14: Setup Ishow (Wireless Projector) App For Projection
Facebook ® and web browsers will not be accessible on your device. 1. To project data wirelessly on the KODAK iShow 1000 Pico Projector, the iShow (wireless projector) app and the files you wish to project must be loaded on your device. -
Page 15: For Android System
Once you have finished displaying this file, return to the file selection pane to choose your next file. For Android system 1. To project data wirelessly on the KODAK iShow 1000 Pico Projector, the iShow (wireless projector) app and the files you wish to project must be loaded on your device. - Page 16 4. Once you have completed adding files, you may disconnect the device from the computer. 5. To start projecting, first ensure that your device’s wireless functionality is turned on. Then, power on your KODAK iShow 1000 Pico Projector by pressing the power button for 3 seconds.
-
Page 17: For Windows System
For Windows system 1. Use enclosed CD-ROM to install iShow (wireless projector) app on your computer. 2. Power on your KODAK iShow 1000 Pico Projector by pressing the power button for 3 seconds. 3. When the pico projector starts, your computer’s wireless network will automatically detect the signal “iShow-XXXX”... - Page 18 6. Click the setting button again to return to the previous interface. Select the file type you want to project by clicking the appropriate icon (Documents, Pictures, or Video Files) at the top of the file selection pane. 7. Once the file type is selected, the appropriate files will appear. Click the file that you want to project.
-
Page 19: Set The Application (Available Only In Wireless Connection)
Set the application (available only in wireless connection) In iShow (wireless projector) app, tap the Setting button to configure appropriate settings in iShow (wireless projector) app. The menu tree where the following operations are found under the settings button vary by device and version. -
Page 20: Keystone Correction
Keystone Correction You can use to apply keystone correction to the projected screen in order to adjust it to a proper shape for easy viewing. About You can use this option to find out the current version and copyright information of your iShow (wireless projector) app. -
Page 21: Using Hdmi For Projection
KODAK iShow 1000 Pico Projector. 1. Start the projector. 2. Connect the KODAK iShow 1000 Pico Projector to your device using the HDMI cable (not included) designed for your device. The image from your device will then be displayed by the projector. -
Page 22: Firmware Update
1. Download the new firmware to the computer's hard drive. 2. Turn on the KODAK iShow 1000 Pico Projector and connect to the power charger. 3. Use the wireless network to connect the computer containing the firmware upgrade to the projector. -
Page 23: Specifications
Specifications Type Focus Range 5-50inches (diagonal) Throw Distance Approx.16.5-165cm Projector Resolution 854×480 pixels Image 50 Lumens Brightness Contrast Ratio 500:1 Connector Power inlet, earphone jack, HDMI Type A Speaker Mixed stereo output Support wireless network *.jpg, *.png; photo supports up to 24 Picture mega-pixels *.3gp, *.mp4, *.mov, *.m4v;... - Page 24 Supported operating Android 2.3.0 or higher, iOS 4.3.1 or higher, systems Windows 7, Windows 8 Focus Control Manual Built-in rechargeable Li-polymer battery 3.7V Power 2800mAh Capability Approx. 90 mins Operation Environment Temperature: 0 ~ 35°C, Humidity: 10 ~ 80% Storage Environment Temperature: 0 ~ 45°C, Humidity: 0 ~ 60% Product Dimension Approx.
- Page 25 The Kodak trademark and trade dress are used under license from Kodak. © 2013 by JK Imaging Ltd. All rights reserved. JK Imaging Ltd. 1411 W. 190th Street, Suite 550, Gardena, CA 90248, USA JK Imaging Europe, 71 Clarendon road, Watford, WD17 1DS, UK www.kodakcamera.jkiltd.com...
