P R O D U C T S P E C I F I C A T I O N S

MODEL NUMBER IDENTIFICATION

Brand/Family
K = K Series
G = Packaged Gas Heat w/ Electric Cooling
Major Design Sequence
Nominal Cooling Capacity - Tons
Net Cooling Capacity − 86,000 to 140,000 Btuh
Gas Input Heat Capacity − 130,000 to 240,000 Btuh
K G A 120 S 4 B S 1 Y
Unit Type
A = 1st Generation
B = 2nd Generation
092 = 7.5 Tons
102 = 8.5 Tons
120 = 10 Tons
150 = 12.5 Tons
Cooling Efficiency
H = High Efficiency
S = Standard Efficiency
P A C K A G E D G A S E L E C T R I C

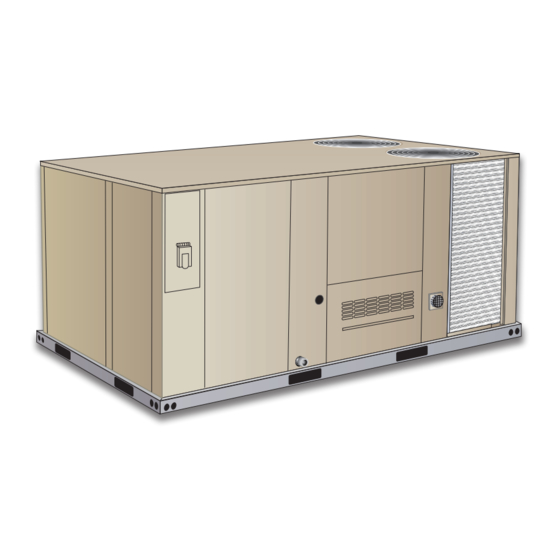

K-Series™ Rooftop Units
Bulletin No. KGA/KGB-092-150 (10/2017)
Voltage
Y = 208/230V-3 phase-60hz
G = 460V-3 phase-60hz
J = 575V-3 phase-60hz
Minor Design Sequence
1 = 1st Revision
2 = 2nd Revision
3 = 3rd Revision
Heating Type
S = Standard Gas Heat, 2 Stage
M = Medium Gas Heat, 2 Stage
H = High Gas Heat, 2 Stage
Blower Type
B = Belt Drive, Constant Air Volume (CAV)
M = Single Zone VAV Supply Fan, Belt Drive
Refrigerant Type
4 = R-410A
KG
60 HZ
ASHRAE 90.1
COMPLIANT
7.5 to 12.5 Tons
