Installation Instructions
I/O Breakout Board
Catalog Number 2071-TBIO

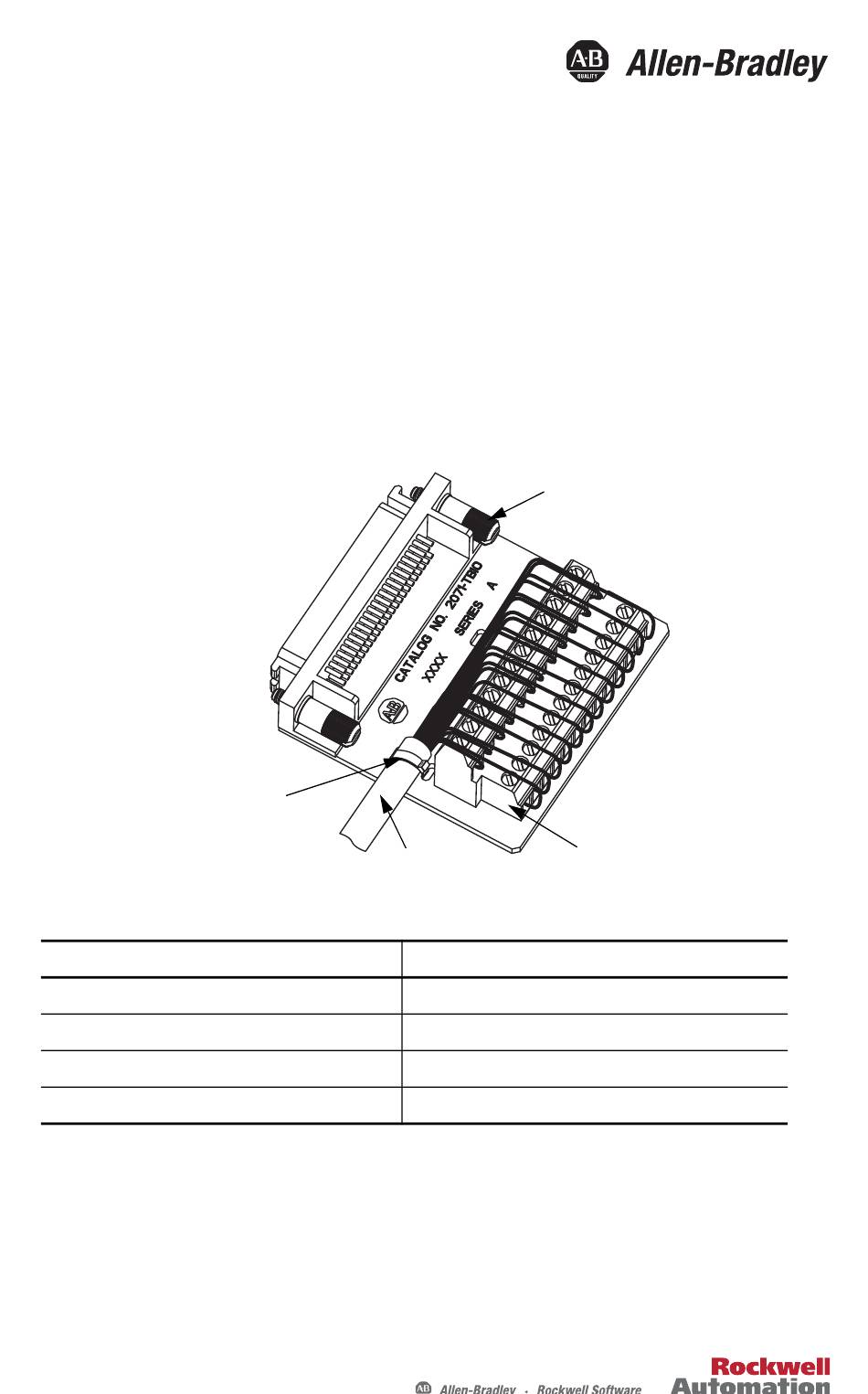

Install I/O Breakout Board
Attribute
Screw terminal wire range
Strip length
Screw terminal torque value
Mounting screws torque value
Tie wrap and I/O cable are supplied by customer.
Tie Wrap
Mounting Screw (x2)
I/O Cable
Value
2
1.5...0.2 mm
(16...24 AWG)
5...6 mm (0.20...0.24 in.)
28.2 N•cm (2.5 lb•in)
28.2 N•cm (2.5 lb•in)
Terminal Block
Advertisement
Related Manuals for Allen-Bradley 2071-TBIO
Summary of Contents for Allen-Bradley 2071-TBIO
- Page 1 Installation Instructions I/O Breakout Board Catalog Number 2071-TBIO Install I/O Breakout Board Mounting Screw (x2) Tie Wrap Terminal Block I/O Cable Attribute Value Screw terminal wire range 1.5…0.2 mm (16…24 AWG) Strip length 5…6 mm (0.20…0.24 in.) Screw terminal torque value 28.2 N•cm (2.5 lb•in)
- Page 2 24V COM ICMD+ Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400...
