Infiniimax ii probes

Advertisement

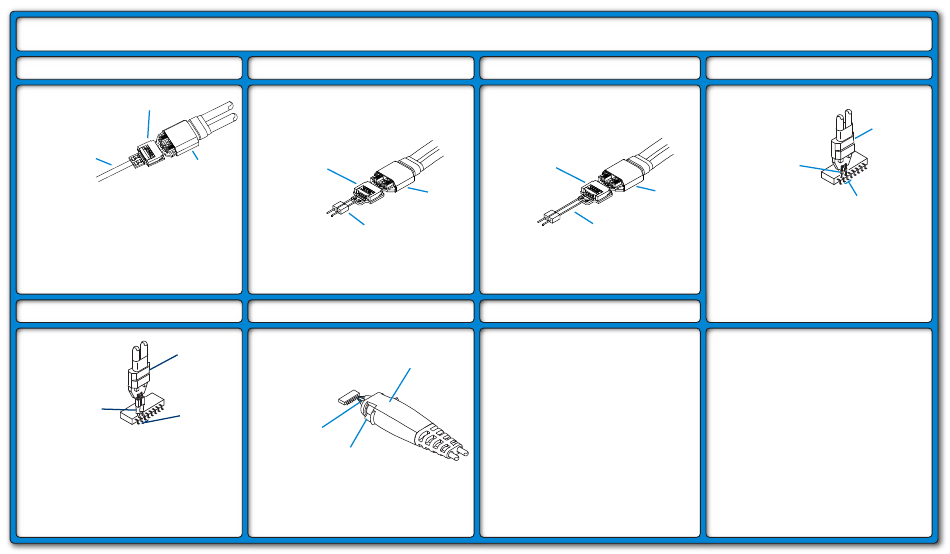

Additional Configurations
5. N2884A Fine Wire ZIF Tip
BANDWIDTH
N2884A ZIF Tip
1169A: 12 GHz
]
1168A: 10 GHz
]
22 Micron Wires
N5425A
ZIF Head
High fidelity, high BW differential probing of
]
active IC.
Flat frequency response over entire 12 GHz
]
BW.
Greater rejection of common-mode noise due
]
to use of local adjacent ground or node.
Requires the N5425A ZIF head.
]
9. Differential Socketed
BANDWIDTH
E2678A
Socketed
1169A: 12 GHz
]
Differential
1168A: 10 GHz
]
Head
0700-2348
Probe either
0W mini-axial
differential or
lead resistors (2)
single-ended
signals
Best socketed connection for differential and
]
single-ended signals.
Slightly higher capacitance than solder-in
]
head.
Resistors must be cut to proper lengths
]
(see user's guide).
6. N5451A Long-Wire ZIF TIP (7 mm)
BANDWIDTH
0º tip span: ~9.9 GHz
]
60º tip span: ~4.4 GHz
]
N5451A ZIF Tip
7 mm Resistor Leads
7 mm leads provide long reach.
]
Accommodate variable-pitch targets.
]
Soldered to circuit.
]
10. Differential Brower
BANDWIDTH
E2675A
1169A: 5.2 GHz
Differential
]
1168A: 5.2 GHz
browser probe
]
head
01131-62107
91Ω resistor
probe tips (2)
Tab to adjust the distance
between probe tips
More general purpose browser than N5382A
]
for differential and single-ended signals.
Lower BW and higher capacitance than
]
N5382A.
7. N5451A Long-Wire ZIF TIP (11 mm)
BANDWIDTH
0º tip span: ~5 GHz
]
60º tip span: ~3.3a GHz
]
N5451A ZIF Tip
N5425A
ZIF Head
11 mm Resistor Leads
11 mm leads provide extra long reach.
]
Accommodate variable-pitch targets.
]
Soldered to circuit.
]
Probe Safety Information
Maximum Input Voltage: 30V Peak, CAT I.
]
Maximum non-destructive voltage on each
input ground.
To protect the probe from damage, read the
]
Probe Handling section in the user's guide.
Refer to the user's guide for additional
]
safety and handling information.
Probes are ESD sensitive devices particularly
]
at the probe heads. Follow standard ESD
precautions when handling.
8. Differential Solder-In
BANDWIDTH
1169A: 12 GHz
]
1168A: 10 GHz
]
0700-2352
91Ω mini-axial
lead resistors (2)
N5425A
ZIF Head
Probe either differential or
single-ended signals
Acceptable solder-in connection for
]
differential and single-ended signals. N5381A
is preferred.
Higher capacitance than N5381A.
]
Resistors must be cut to proper lengths
]
(see user's guide).
Keysight Technologies
Printed in USA
*01168-92006
01168-92006
July 2013
E2677A
Solder-In
Differential
Head
