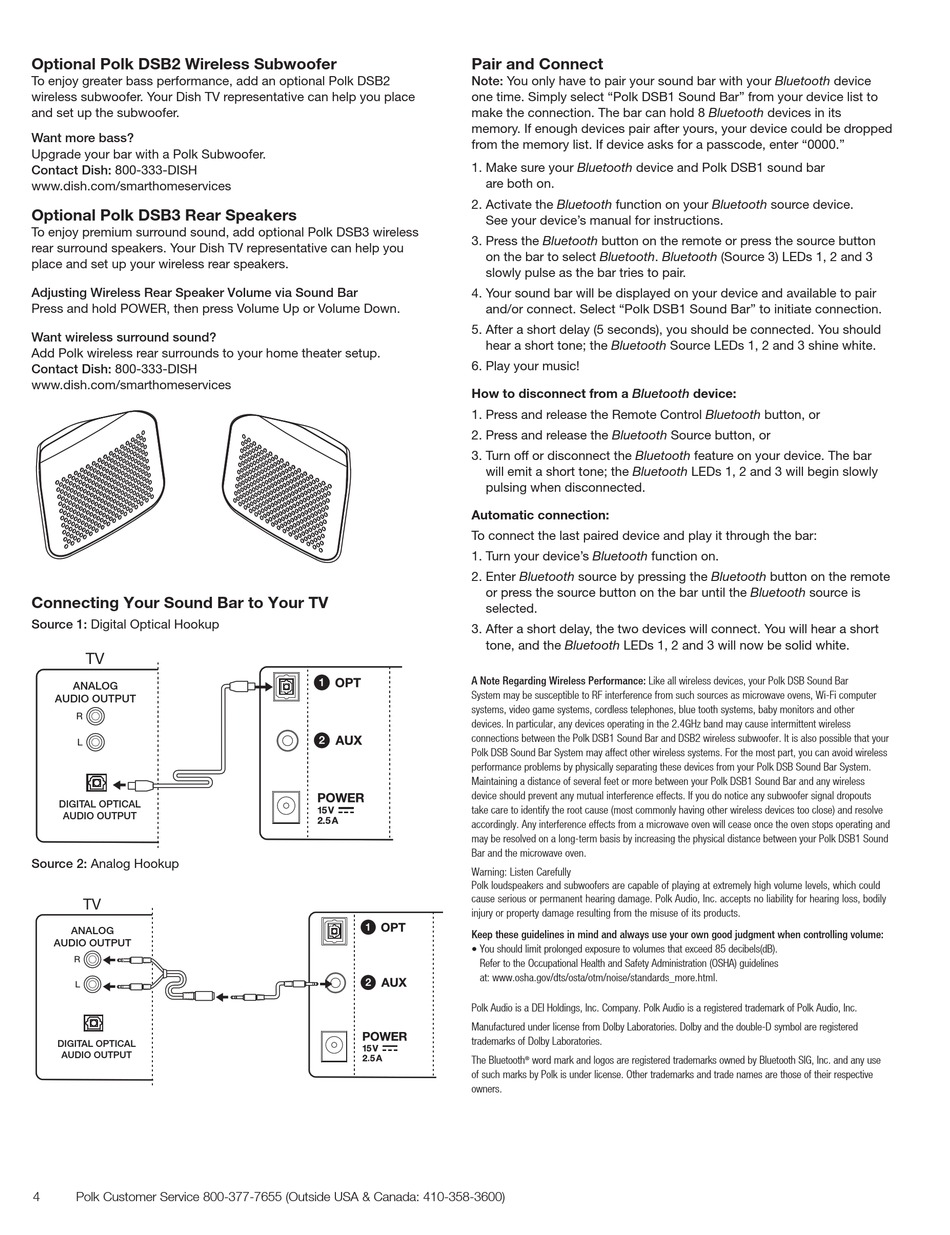

Optional Polk DSB2 Wireless Subwoofer

To enjoy greater bass performance, add an optional Polk DSB2
wireless subwoofer. Your Dish TV representative can help you place
and set up the subwoofer.
Want more bass?
Upgrade your bar with a Polk Subwoofer.
Contact Dish: 800-333-DISH
www.dish.com/smarthomeservices

Optional Polk DSB3 Rear Speakers

To enjoy premium surround sound, add optional Polk DSB3 wireless
rear surround speakers. Your Dish TV representative can help you
place and set up your wireless rear speakers.
Adjusting Wireless Rear Speaker Volume via Sound Bar
Press and hold POWER, then press Volume Up or Volume Down.
Want wireless surround sound?
Add Polk wireless rear surrounds to your home theater setup.
Contact Dish: 800-333-DISH
www.dish.com/smarthomeservices

Connecting Your Sound Bar to Your TV

Source 1: Digital Optical Hookup
TV
TV
ANALOG
ANALOG
AUDIO OUTPUT
AUDIO OUTPUT
R
R
L
L
DIGITAL OPTICAL
DIGITAL OPTICAL
AUDIO OUTPUT
AUDIO OUTPUT
Source 2: Analog Hookup
TV
TV
ANALOG
ANALOG
AUDIO OUTPUT
AUDIO OUTPUT
R
R
L
L
DIGITAL OPTICAL
AUDIO OUTPUT
DIGITAL OPTICAL
AUDIO OUTPUT
4
Polk Customer Service 800-377-7655 (Outside USA & Canada: 410-358-3600)

Pair and Connect

Note: You only have to pair your sound bar with your Bluetooth device
one time. Simply select "Polk DSB1 Sound Bar" from your device list to
make the connection. The bar can hold 8 Bluetooth devices in its
memory. If enough devices pair after yours, your device could be dropped
from the memory list. If device asks for a passcode, enter "0000."
1. Make sure your Bluetooth device and Polk DSB1 sound bar
are both on.
2. Activate the Bluetooth function on your Bluetooth source device.
See your device's manual for instructions.
3. Press the Bluetooth button on the remote or press the source button
on the bar to select Bluetooth. Bluetooth (Source 3) LEDs 1, 2 and 3
slowly pulse as the bar tries to pair.
4. Your sound bar will be displayed on your device and available to pair
and/or connect. Select "Polk DSB1 Sound Bar" to initiate connection.
5. After a short delay (5 seconds), you should be connected. You should
hear a short tone; the Bluetooth Source LEDs 1, 2 and 3 shine white.
6. Play your music!
How to disconnect from a Bluetooth device:
1. Press and release the Remote Control Bluetooth button, or
2. Press and release the Bluetooth Source button, or
3. Turn off or disconnect the Bluetooth feature on your device. The bar
will emit a short tone; the Bluetooth LEDs 1, 2 and 3 will begin slowly
pulsing when disconnected.
Automatic connection:
To connect the last paired device and play it through the bar:
1. Turn your device's Bluetooth function on.
2. Enter Bluetooth source by pressing the Bluetooth button on the remote
or press the source button on the bar until the Bluetooth source is
selected.
3. After a short delay, the two devices will connect. You will hear a short
tone, and the Bluetooth LEDs 1, 2 and 3 will now be solid white.
A Note Regarding Wireless Performance: Like all wireless devices, your Polk DSB Sound Bar
System may be susceptible to RF interference from such sources as microwave ovens, Wi-Fi computer
systems, video game systems, cordless telephones, blue tooth systems, baby monitors and other
devices. In particular, any devices operating in the 2.4GHz band may cause intermittent wireless
connections between the Polk DSB1 Sound Bar and DSB2 wireless subwoofer. It is also possible that your
Polk DSB Sound Bar System may affect other wireless systems. For the most part, you can avoid wireless
performance problems by physically separating these devices from your Polk DSB Sound Bar System.
Maintaining a distance of several feet or more between your Polk DSB1 Sound Bar and any wireless
device should prevent any mutual interference effects. If you do notice any subwoofer signal dropouts
take care to identify the root cause (most commonly having other wireless devices too close) and resolve
accordingly. Any interference effects from a microwave oven will cease once the oven stops operating and
may be resolved on a long-term basis by increasing the physical distance between your Polk DSB1 Sound
Bar and the microwave oven.
Warning: Listen Carefully
Polk loudspeakers and subwoofers are capable of playing at extremely high volume levels, which could
cause serious or permanent hearing damage. Polk Audio, Inc. accepts no liability for hearing loss, bodily
injury or property damage resulting from the misuse of its products.
Keep these guidelines in mind and always use your own good judgment when controlling volume:
• You should limit prolonged exposure to volumes that exceed 85 decibels(dB).
Refer to the Occupational Health and Safety Administration (OSHA) guidelines
at: www.osha.gov/dts/osta/otm/noise/standards_more.html.
Polk Audio is a DEI Holdings, Inc. Company. Polk Audio is a registered trademark of Polk Audio, Inc.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered
trademarks of Dolby Laboratories.
The Bluetooth
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
®
of such marks by Polk is under license. Other trademarks and trade names are those of their respective
owners.
