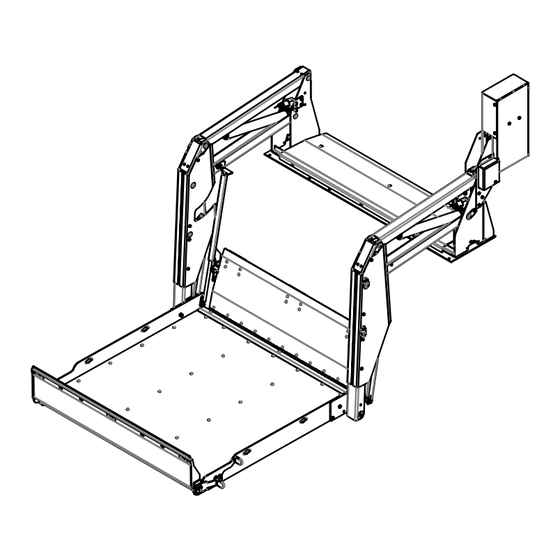

Tommy Gate V2 Series Owner's And Operator's Manual

1100 lb capacity
Hide thumbs Also See for V2 Series:
Table of Contents

Advertisement

Quick Links

The original
TOMMY GATE
hydraulic lift
Woodbine, Iowa
Made in America
Before installing or using this Liftgate, please observe the Vehicle Loading Limitations.
!
These loading limitations are outlined in the Vehicle Owner's Manual and the Safety
CAUTION
Compliance Certification Label located on the drivers door pillar.
DPN: 015196
OWNER'S / OPERATOR'S
MANUAL
Safety Information
Warranty Information
Operator's Instructions
Maintenance Instructions
Parts List
1100 LB Capacity
PLEASE KEEP IN VEHICLE
Page 1 of 24
V2 Series
!
CAUTION
Rev 2 10-16-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tommy Gate V2 Series

Summary of Contents for Tommy Gate V2 Series

  • Page 1 Operator's Instructions Maintenance Instructions Parts List Made in America V2 Series 1100 LB Capacity Before installing or using this Liftgate, please observe the Vehicle Loading Limitations. These loading limitations are outlined in the Vehicle Owner's Manual and the Safety CAUTION CAUTION Compliance Certification Label located on the drivers door pillar.

  • Page 2: Table Of Contents

    The original TOMMY GATE TABLE OF CONTENTS hydraulic lift Introduction Page# To the Owner\Operator Safety Decals Location and Descriptions Decal Replacement Operator's Instructions Terms and Method of Operation Operator's Instructions 8-10 Electrical Wiring Diagrams Standard Pendant Control V2 Power Unit Control Circuit Maintenance and Service 14 &...

  • Page 3: To The Owner\Operator

    Be sure you read and understand all operating, safety, maintenance and service information. Should you need repair or service information, contact Tommy Gate or an authorized distributor for assistance. This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 4: Location And Descriptions

    OR UNATTENDED. NEVER LEAVE PLATFORM DOWN TO BE USED AS A STEP. ALL REPAIRS OR REINSTALLATIONS OF TOMMY GATE LIFTS SHOULD BE PERFORMED BY AN AUTHORIZED DISTRIBUTOR THAT IS FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES. ALL REPLACEMENT PARTS MUST BE OF ORIGINAL QUALITY, AND ALL...
  • Page 5 The original TOMMY GATE DECAL LOCATIONS AND DESCRIPTIONS hydraulic lift TOMMY GATE CO. TOMMY LIFT PART NUMBER SERIAL NUMBER WOODBINE MANUFACTURING CO. WOODBINE, IOWA (800)LIFTGATE Decal No. 7 Located on upright and inside pump box. CAUTION Spring under high tension Decal No.

  • Page 6: Decal Replacement

    The original TOMMY GATE DECAL LOCATIONS AND DESCRIPTIONS hydraulic lift DANGER Before removing box cover do the following: 1) Lower platform to ground or close and latch. 2) Disconnect positive battery cable(s). 9556 Decal No. 11 Located on box cover of pump.

  • Page 7: Terms And Method Of Operation

    V2 TERMS AND METHOD OF OPERATION hydraulic lift Your Tommy Gate is connected to your vehicle battery. The vehicle battery powers a motor, coupled to a hydraulic pump. This motor and pump combination is called a power unit. Flow from the pump will extend a pair of cylinders to lift the platform. The platform is unfolded and lowered by gravity after electric "release"...

  • Page 8: Operator's Instructions

    ON" hidden switch again. To activate the control, press the "LIFTGATE ACTIVATED" hidden switch twice within one second (located under the Tommy Gate logo). You should see the red "LIFTGATE ACTIVATED" light when the control is activated. To lower the platform, push the toggle switch down. To raise the platform, push the toggle switch up.
  • Page 9 The vehicle doors should be closed and locked before leaving the truck unattended. Step 12. The Tommy Gate is designed for material handling only and is not to be used as a personnel or wheelchair lift. Do not ride on the platform and always stand clear of the platform when opening, raising, lowering, or closing.
  • Page 10 RETENTION RAMP OPERATOR'S INSTRUCTIONS The original TOMMY GATE hydraulic lift Push latch down to release Retention ramp ramp will drop to loading position Figure 3: Loading position. Push handle Latch will drop, forward to securing rotate ramp into retention ramp vertical position Figure 4: Vertical position.

  • Page 11: Electrical Wiring Diagrams

    ELECTRICAL WIRING DIAGRAM The original TOMMY GATE hydraulic lift Pendant Control NOTE !!! IF GATES ARE NOT WIRED PLEASE READ AND FOLLOW ALL IN ACCORDANCE WITH THIS DIAGRAM DIRECTIONS BEFORE PROCEEDING YOUR WARRANTY WILL BE VOID. IMPORTANT WELDING NOTE !!! DISCONNECT ALL BATTERY CABLES.

  • Page 12: V2 Power Unit Control Circuit

    The original V2 POWER UNIT CONTROL CIRCUIT TOMMY GATE hydraulic lift Legend Button Solenoid contact Motor Solenoid coil Circuit breaker with manual disconnect and reset Fuse 4awg wire 18awg wire Grounded through pump body (gray only) Components within are part of the control...

  • Page 13: Maintenance And Service

    All replacement parts must be of original quality, and all safety and operational decals must be attached. No modifications are allowed to a Tommy Gate product unless authorized by the Engineering Department at Tommy Gate.

  • Page 14: Trouble Shooting 14

    The original TOMMY GATE TROUBLE SHOOTING - V2 hydraulic lift DPN: 015196 Page 14 of 24 Rev 2 10-16-18...

  • Page 15: Trouble Shooting

    The original TOMMY GATE TROUBLE SHOOTING - V2 hydraulic lift DPN: 015196 Page 15 of 24 Rev 2 10-16-18...

  • Page 16: Standard Warranty

    The Tommy Gate Company provides a limited warranty against faulty materials or workmanship. 2-Year Warranty Tommy Gate pump and motor unit parts are guaranteed for two (2) full years from date of user purchase against faulty materials or workmanship. 2-Year Warranty Tommy Gates are guaranteed for (2) years from the date of user purchase against faulty materials or workmanship.

  • Page 17: Warranty Claims Handling Procedure

    Warranty claim acceptance or rejection is based solely upon defective part inspection and a review of the claim date (outlined in step 5 above) as they apply to the requirements of Tommy Gate Warranty. Claim reimbursement after acceptance is governed by those allowances previously agreed upon between Tommy Gate Company and the Authorized Distributor (as outlined in Steps 1-4 above).

  • Page 18: Repair Parts Drawing

    The original TOMMY GATE V2 REPAIR PARTS DRAWING hydraulic lift DPN: 015196 Page 18 of 24 Rev 2 10-16-18...

  • Page 19: Repair Parts List

    The original TOMMY GATE V2 REPAIR PARTS LIST hydraulic lift ITEM# DESCRIPTION ITEM# DESCRIPTION Platform Passenger Side Outside Plastic Shield Cover Sheet Driver Side Outside Plastic Shield Limit Switch Passenger Side Inside Plastic Shield Torsion Spring Limit Switch Cover Lower Arm...

  • Page 20: Service Records

    The original TOMMY GATE SERVICE RECORD hydraulic lift LIFTGATE INFORMATION Date of Purchase: Serial Number: Installed By: Model Number: Reminders: Service liftgate according to page 13. Date of Service Services Performed DPN: 015196 Page 20 of 24 Rev 2 10-16-18...
  • Page 21 The original TOMMY GATE hydraulic lift This page is intentionally left blank. DPN: 015196 Page 21 of 24 Rev 2 10-16-18...
  • Page 22 The original TOMMY GATE hydraulic lift This page is intentionally left blank. DPN: 015196 Page 22 of 24 Rev 2 10-16-18...
  • Page 23 The original TOMMY GATE hydraulic lift This page is intentionally left blank. DPN: 015196 Page 23 of 24 Rev 2 10-16-18...

  • Page 24: Contact Information

    The original TOMMY GATE hydraulic lift America's First Name in Liftgates Corporate Offices: Manufacturing Plant: 83 Bus Brown Drive 33717 N. Scottsdale Rd. Ste 120 Woodbine, Iowa 51579 Scottsdale, AZ 85266 FAX (712) 647-2417 FAX (602) 955-3902 (712) 847-8000 www.tommygate.com...
