Mount the Horizontal
and Vertical Stabilizer
❑

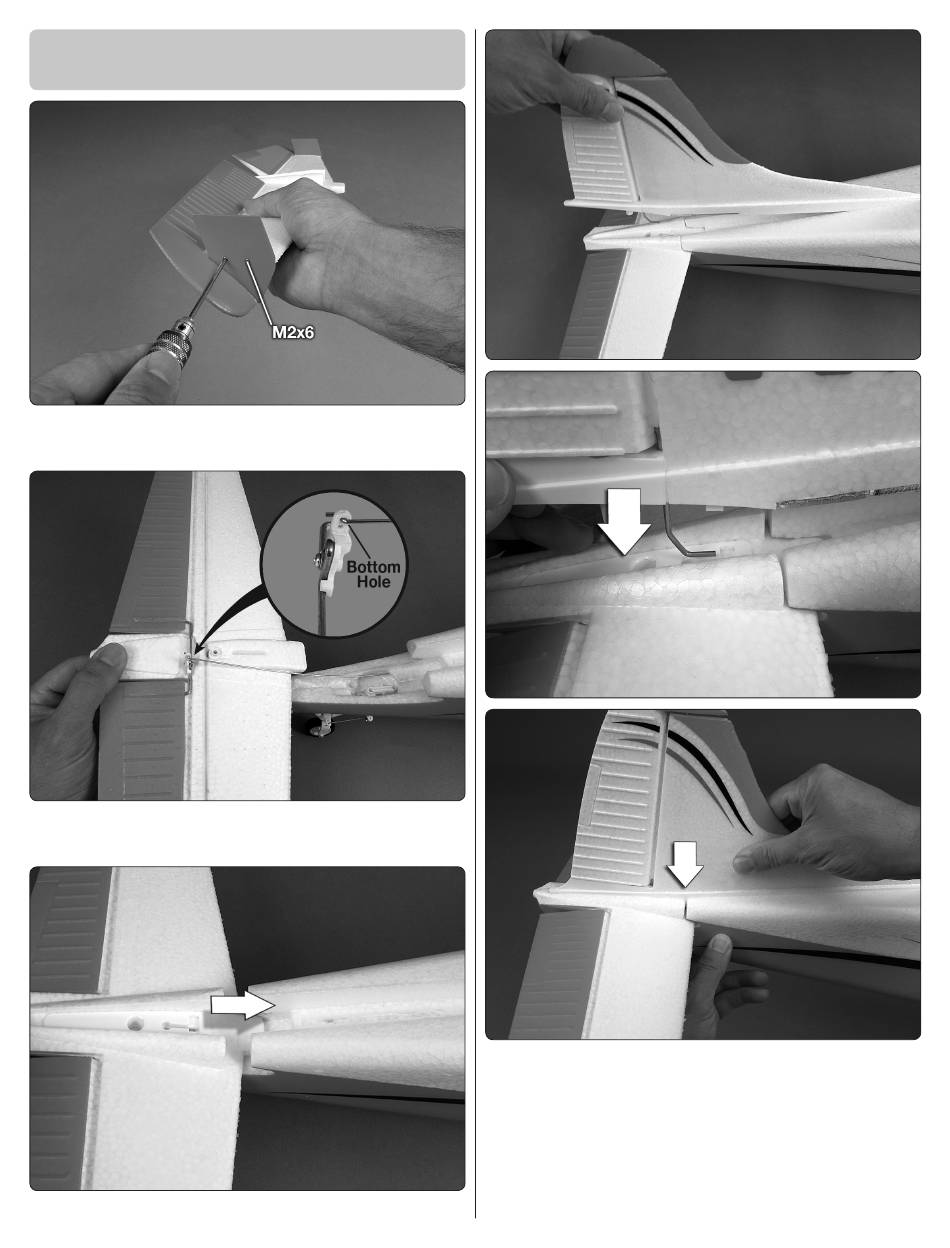

1. Fasten the vertical stabilizers to each end of the
horizontal stabilizer (stab) with M2x6 screws.
❑
2. Connect the elevator pushrod to the bottom hole in
the elevator horn as shown.
❑
3. Rotate the stab upward and key it into the fuselage.
❑
4. Key the rudder torque rod down into the receptacle
while fi tting the vertical stabilizer (fi n) into the fuselage.
Tightly press the assembly down into position.
