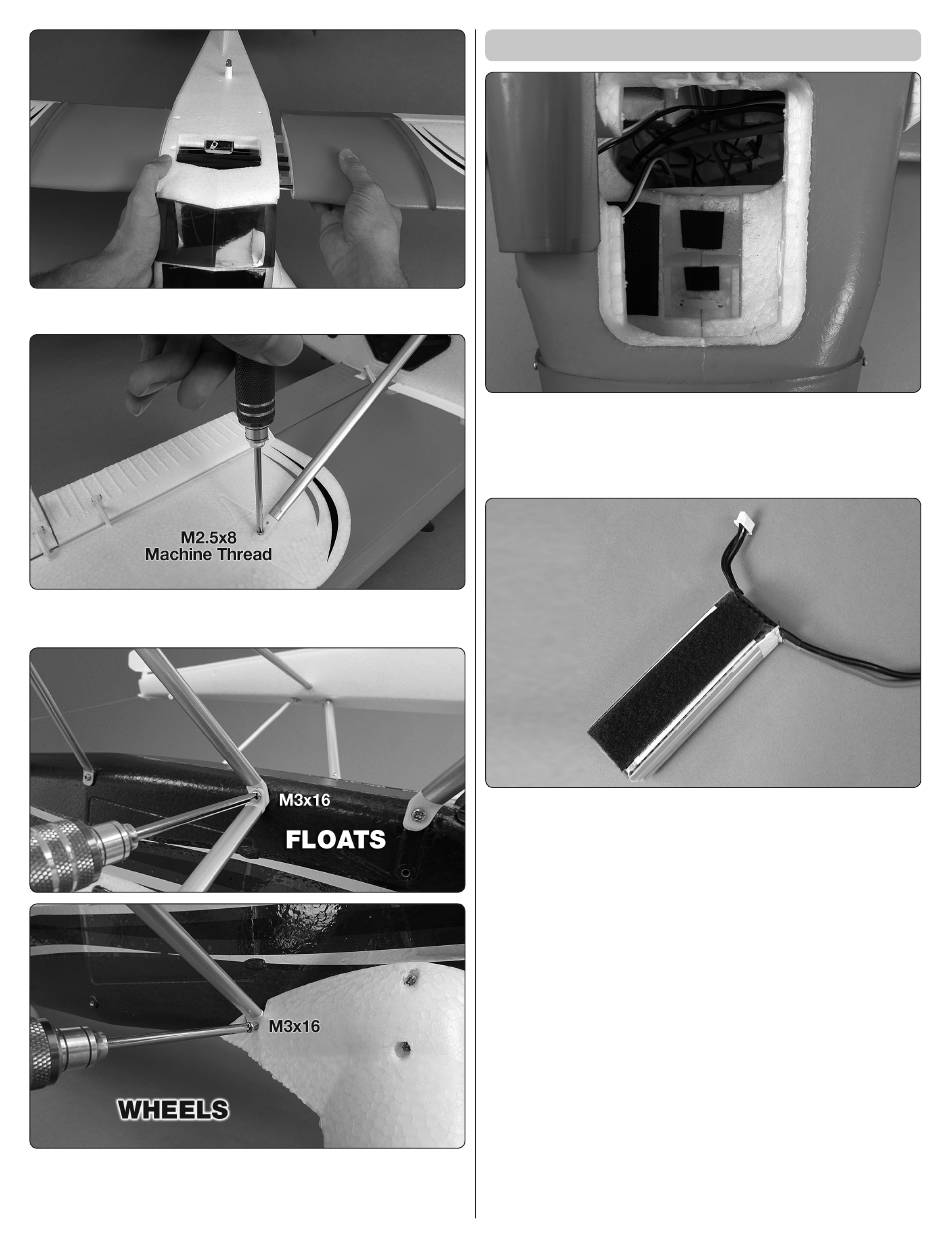

3. Mount the left wing the same way.
❑
4. Mount the top of each wing strut to the wing with a
M2.5x8 machine-thread screw.
❑
5. Mount the bottom of each strut to the fuselage over
the third fl oat strut (or over the main landing gear) with a
M3x16 screw.

Install the Battery

❑
1. Cut two 1" [25mm] strips from the rougher, "hook"
side of the included adhesive-back hook-and-loop material.
Apply the strips inside the fuselage where shown and press
them down tightly so they adhere.
❑
2. Cut a 3" [ 76 mm] strip from the softer, "loop" side and
attach it to the battery so the larger "discharge" wires will
be on the right side as shown. (This will position the wires
opposite the receiver for a better fi t.)
