MANUAL SOLID BOWL FEEDER
Overview

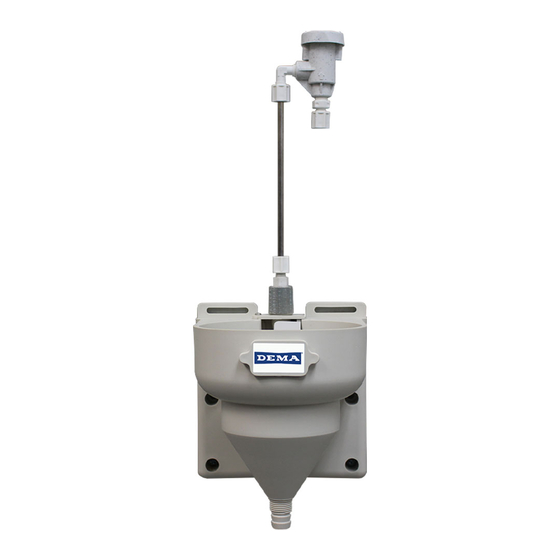

The DEMA Manual Solid Bowl Feeder is for use with a solid product being put into a reservoir.
The Bowl features a bypass line to allow the proper dilution of product from the bowl to put into
the three compartment sink or other container. It is operated by the ball valve on the inlet which
controls the flow to the product and the bypass line.
Warnings
All installations must conform to local plumbing codes and use approved
backflow prevention devices. A pressure indicating tee is to be installed with
existing faucets according to local plumbing codes in the state of Wisconsin and
any other state that requires the use of a pressure indicating tee.
ALWAYS WEAR PROTECTIVE CLOTHING AND EYEWEAR WHEN
WORKING WITH CHEMICAL PRODUCTS.
I-1031
Rev. --
5/31/11
DEMA 5800V.BV
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for DEMA 5800V.BV
Summary of Contents for DEMA 5800V.BV
- Page 1 MANUAL SOLID BOWL FEEDER Overview The DEMA Manual Solid Bowl Feeder is for use with a solid product being put into a reservoir. The Bowl features a bypass line to allow the proper dilution of product from the bowl to put into the three compartment sink or other container.
-
Page 2: Specifications
Specifications Packing List 5800V.BV 5800V.BV.B 5800V.BV.B.C 5800V.BV.C Bowl Standard, Standard, Compression Compression Plastic VB Brass VB Inlet, Brass VB Inlet, Brass VB Outlet Tubing 58.7.5 58.7.5 58.7.5 58.7.5 Screw & 58.319 58.319 58.319 58.319 Anchor Kit Inst. Sheet I1031 I1031... -
Page 3: Troubleshooting
Rubber and synthetic rubber parts such as “O”-rings, diaphragms, PVC tubing, and gaskets are considered expendable and are not covered under warranty. This warranty is extended only to the original buyer of DEMA products. If products are altered or repaired without prior approval of DEMA, this warranty is void.
