BARCO PROJECTION SYSTEMS
Ceiling Mount Kit
Cine Versum 80
R9841750
INSTALLATION MANUAL
Ceiling Mount for Cine Versum Projectors
03062003
Rev: 01
Art. No.: R5976501

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cine Versum 80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Barco Cine Versum 80

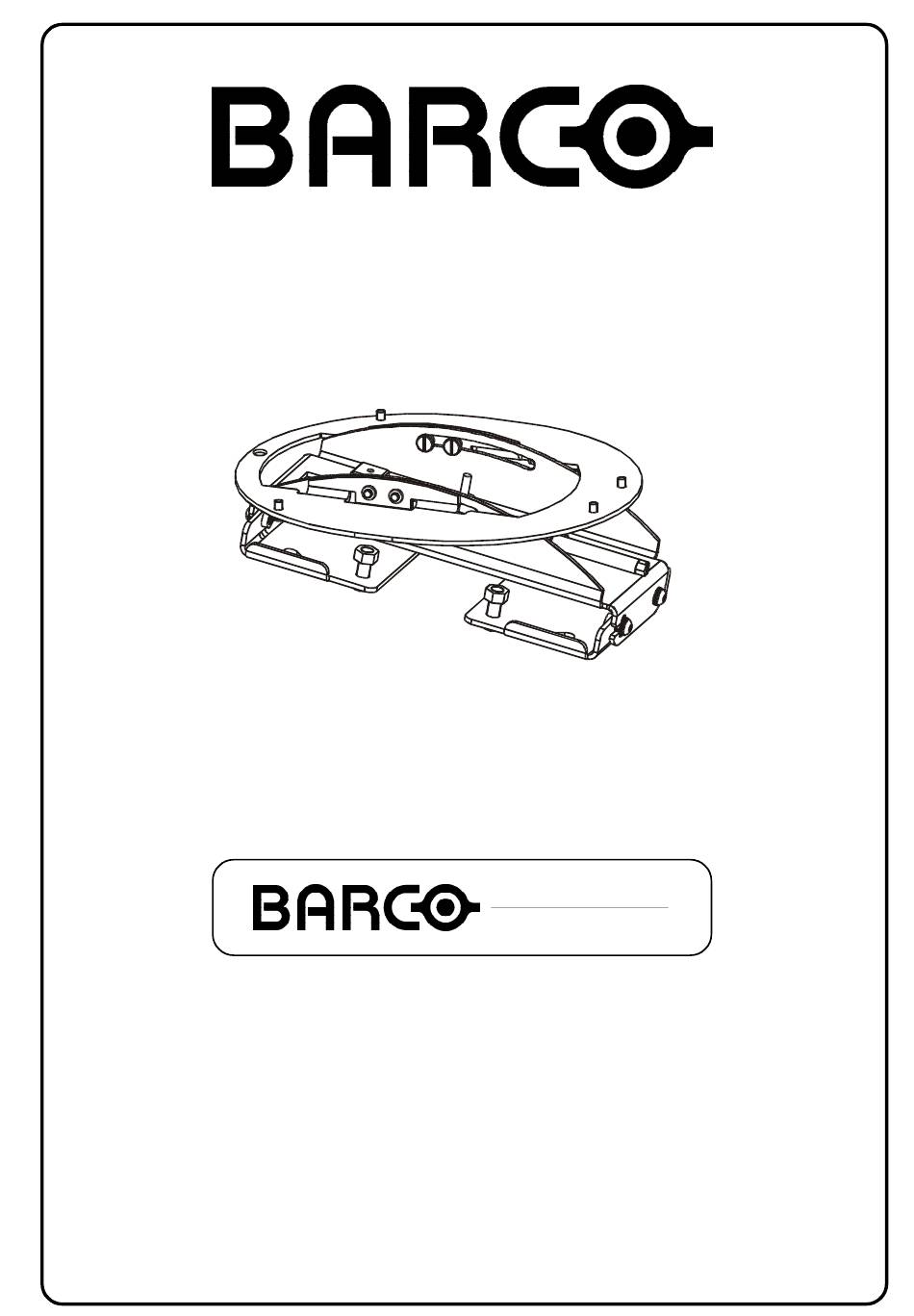

  • Page 1 BARCO PROJECTION SYSTEMS Ceiling Mount Kit Cine Versum 80 R9841750 INSTALLATION MANUAL Ceiling Mount for Cine Versum Projectors 03062003 Rev: 01 Art. No.: R5976501...
  • Page 2 Produced by BARCO NV, Oct. 2002. All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
  • Page 3 Safety Guidelines Caution This frame is designed for use only with the Barco Cine Versum series projectors. Use with other appliances may result in instability causing possible injury. The ceiling mount supports max.25kg(55LB) Warning The ceiling should be capable of supporting a weight of at least 125 kg (275LB) if it cannot, the ceiling must be reinforced.
  • Page 4 Remark ment): R9841260: short bar R822922 min length = 400mm(15.75 inch) max length = 765 mm(30.10 inch) R9841261: long bar R822923 min length = 800mm(31.50 inch) max length = 1165 mm(45.85 inch) R822923 R822922 BARCO ——————————————————— 4 ————————————— Projection Systems...
  • Page 5 Mark the position on the ceiling, knowing the center of the lens (which doesn’t coincide with the center of the ceiling mount, see drawing) below. Dimension of ceiling holes with respect to lens of CV80 BARCO ——————————————————— 5 ————————————— Projection Systems...
  • Page 6 4 no. M5 bolts given. These four holes are to be These four slots are for used when height adjust- fixing to the ceiling, use ment bar is used. appropriate bolts (M8) BARCO ——————————————————— 6 ————————————— Projection Systems...
  • Page 7 If necessary shift the lead nut by rotating the lead shaft screw with the nut spanner. This shaft should pass Illustrations through the bearing Bearing B358953 Spacer R822216 Screws shaft Location of fixing the spacers and bearing. BARCO ——————————————————— 7 ————————————— Projection Systems...
  • Page 8 Lift the projector with the attachment and hang it to the plate on the ceiling plate on to the two screws already there. Once hanged fix the other two screws and position the projector. BARCO ——————————————————— 8 ————————————— Projection Systems...
  • Page 9 To perform adjustment of the assembly follow the next procedure: Adjustment Adjust the projector alignments until the desired image is obtained. Tighten all the bolts after the desired image is achieved. Illustrations This adjustment in this direction can be done with these slot BARCO ——————————————————— 9 ————————————— Projection Systems...
  • Page 10 Illustrations M8 nut, bolt and washer used to lock the chain. i) Check the stability of the ceiling mount. ii) The installation is complete after a proper image at the desired place is achieved. BARCO ——————————————————— 10 ————————————— Projection Systems...

This manual is also suitable for:

R9841750
