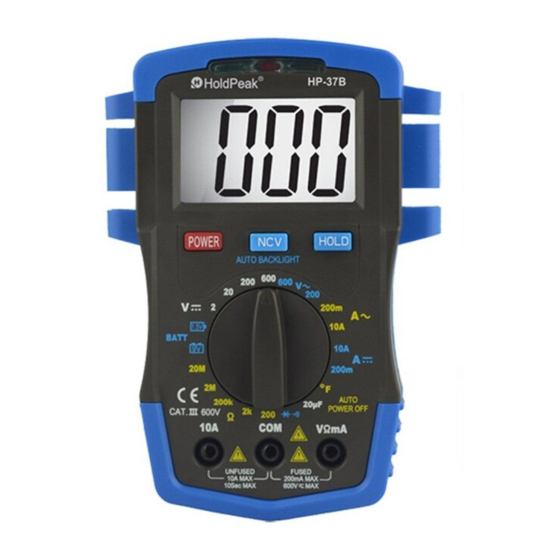

HoldPeak HP-37B Operator's Manual

DIGITAL MULTIMETER
OPERATOR'S MANUAL

1. Overview

The multimeter is characterized at slim size, portable, stable performance and
anti-dropping capacity. Using 3 1/2 digits LCD monitor with character 28mm
high, they offer clear readings.
large-scale IC A/D converters in conjunction and over-load protection circuit,
the meters give excellent performance and exquisite making as a handy utility
instrument.
The meters can be used to measure DC & AC voltage, DC & AC current,
resistance, capacitor, temperature, battery test, Non Contact AC Voltage (NCV)
detection, positive diode voltage fall and audible continuity.

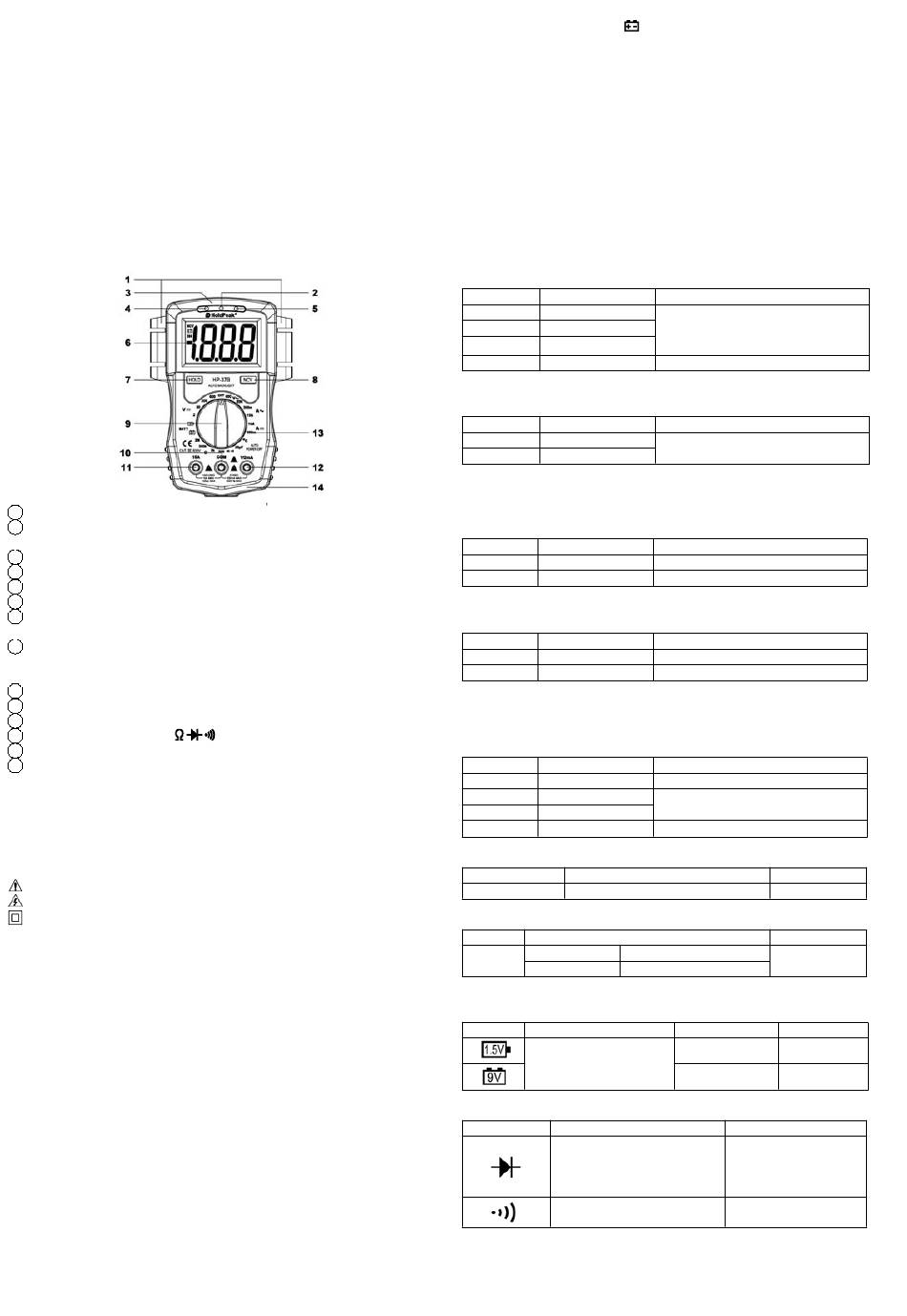

2. Panel Layout

Test lead fixture: Fix the test lead.
1
CDS sensor: The CDS sensor can reaction to the ambient brightness
2
range, then automatically control the LCD backlight to lighten or go out.
NCV detection area: Non Contact AC Voltage (NCV) detection area.
3
NCV red light: Non Contact AC Voltage (NCV) detection red light.
4
NCV green light: Non Contact AC Voltage (NCV) detection green light.
5
LCD display: 3 1/2 digits LCD display.
6
HOLD key: Press the "HOLD" key to lock display value, and the "DH"
7
sign will appear on the display, press it again to exit.
NCV Key: Press the "NCV" key, the meter enters Non Contact AC
8
Voltage (NCV) detection, the NCV green LED light will light up, and the
"NCV" sign will appear on the display, press it again to exit.
Rotary Switch: Use this switch to select functions and ranges.
9
COM: COM and Temperature "-" Input Jack
10
10A: 10A Input Jack
11
VΩmA: V/mA/BATT/20uF/
12
Crust of meter
13
Protective casing
14

3. Safety Information

3-1 The meter is designed according to IEC-1010 concerning electronic
measuring instruments with an over-voltage category 600V (CAT Ⅲ) and
pollution 2.
3-2 Follow all safety and operating instructions to ensure that the meter is used
safely and is kept in good operating condition.
3-3 safety symbols:
Important safety information, refer to the operating manual.
Dangerous voltage may be presence.
Double insulation (protection Class II)

4. Special Cautions for Operation

4-1 The meters can be safe only according to standard procedures when used
in conjunctions with the supplied test leads. To replace damaged test leads
with only the same model or same electric specifications.
4-2 To avid risk of electric shock, do not use the meters before the cover is in
place.
4-3 The range switch should be right position for the testing.
4-4 To avoid electric shock and damaging the instruments, the input signals are
forbidden to exceed the specified limits.
4-5 When measuring TV set or switched power, attention should be paid to the
possible pulses that may bring destruction to the circuit.
4-6 Range switch position is forbidden to be changed at random during
measurement.
4-7 Take caution against shock in the course of measuring voltage higher than
DC 60V & AC 30V.
4-8 Protection fuse should be replaced only with same type and same
specification.
4-9 After operation is finished, set function switch at OFF range to save battery
power.
4-10 If the meter is without usage for long time, take out battery to avoid
damage by battery leakage.

5. GENERAL SPECIFICATIONS

5-1 Max Voltage between input terminal and Earth Ground: CAT Ⅲ 600V
5-2 Over-range Indication: display "1" or "-1" for the significant digit.
5-3 Automatic display of negative polarity "-" .
HP-37B
With overall circuitry design centering on
and Temperature "+" Input Jack
5-4 Low Battery Indication: " " displayed.
5-5 Display: 3 1/2 digit LCD with a max. reading of 1999.
5-6 Manual range control
5-7 Auto Power Off: The meter will switch to standby mode when power on
after approx. 30 minutes. Rotate the rotary switch to OFF position, then
power on to exit standby mode.
5-8 Auto LCD backlight
5-9 Fuse protection: 200mA/250V PPTC Resettable Fuse
5-10 Power supply: 9V battery (6F22 or NEDA 1604)
5-11 Operating Temp.: 0℃ to 40℃ (relative humidity <85%)
5-12 Storage Temp.:-10℃ to 50℃ ((relative humidity <85%)
5-13 Guaranteed precision Temp.: 23±5℃ (relative humidity <70%)
5-14 Dimension: 150x106x36mm
5-15 Weight: approx. 250g (including battery)

6. Testing Specifications

Accuracy is specified for a period of year after calibration and at 18℃ to 28℃
(64℉ to 82℉) with relative humidity to 70%.
6-1 DC Voltage
Range Resolution
2V 1mV
20V 10mV
200V 100mV
600V 1V
-- Impedance: 1MΩ
-- Overload protection: 600V DC or AC rms
6-2 AC Voltage
Range Resolution
200V 100mV
600V 1V
-- Impedance: 1MΩ
-- Overload protection: 600V DC or AC rms
-- Frequency Range: 40 to 400Hz
-- Response: average, calibrated in rms of sine wave
6-3 DC Current
Range Resolution
200mA 100μA
10A 10mA
-- Overload protection: 200mA/250V PPTC Resettable Fuse
Note: 10A range is not fused, 10A up to 10 seconds
6-4 AC Current
Range Resolution
200mA 100μA
10A 10mA
-- Overload protection: 200mA/250V PPTC Resettable Fuse
Note: 10A range is not fused, 10A up to 10 seconds
-- Frequency Range: 40 to 400Hz
-- Response: average, calibrated in rms of sine wave
6-5 Resistance
Range Resolution
200Ω 0.1Ω
2kΩ 1Ω
200kΩ 100Ω
2MΩ 1kΩ
-- Overload protection: 250V DC or AC rms
6-6 Capacitance
Range Accuracy
20µF ±(2.5% of rdg + 5 digits)
-- Overload protection: 200mA/250V PPTC Resettable Fuse
6-7 Temperature
Range Accuracy
-20~150℃
℃
150~1000℃ ± ( 3% of rdg + 2digits )
-- NiCr-NiSi K-type sensor
-- Overload protection: 200mA/250V PPTC Resettable Fuse
6-8 Battery test
Range Accuracy
±(5.0% of rdg + 5 digits)
-- Overload protection: 200mA/250V PPTC Resettable Fuse
6-9 Diode and Audible continuity test
Range Description
Display read approximately
forward voltage of diode
Built-in buzzer sounds if
resistance is less than 50Ω
Overload protection: 250V DC or AC rms
6-10 Non Contact AC Voltage (NCV) detection
Test voltage range: 90V～1000V AC rms
The NCV red LED light and green LED light will light up alternately together
with sound.
Accuracy
±(0.5% of rdg + 2 digits)
±(0.8% of rdg + 2 digits)
Accuracy
±(1.2% of rdg + 3 digits)
Accuracy
±(1.2% of rdg + 2 digits)
±(2.0% of rdg + 3 digits)
Accuracy
±(1.5% of rdg + 3 digits)
±(2.5% of rdg + 5 digits)
Accuracy
±(1.0% of rdg + 3 digits)
±(1.0% of rdg + 2 digits)
±(1.5% of rdg + 3 digits)
Resolution
10nF
Resolution
± ( 3℃+ 1digit )
1℃
Load current Resolution
Approx. 50mA 1mV
Approx. 10mA 10mV
Test Condition
Forward DC current
approx. 1mA
Reversed DC voltage
approx. 3V
Open circuit voltage
approx. 3V
