Escort Passport GT1 Owner's Manual

Escort passport gt1: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

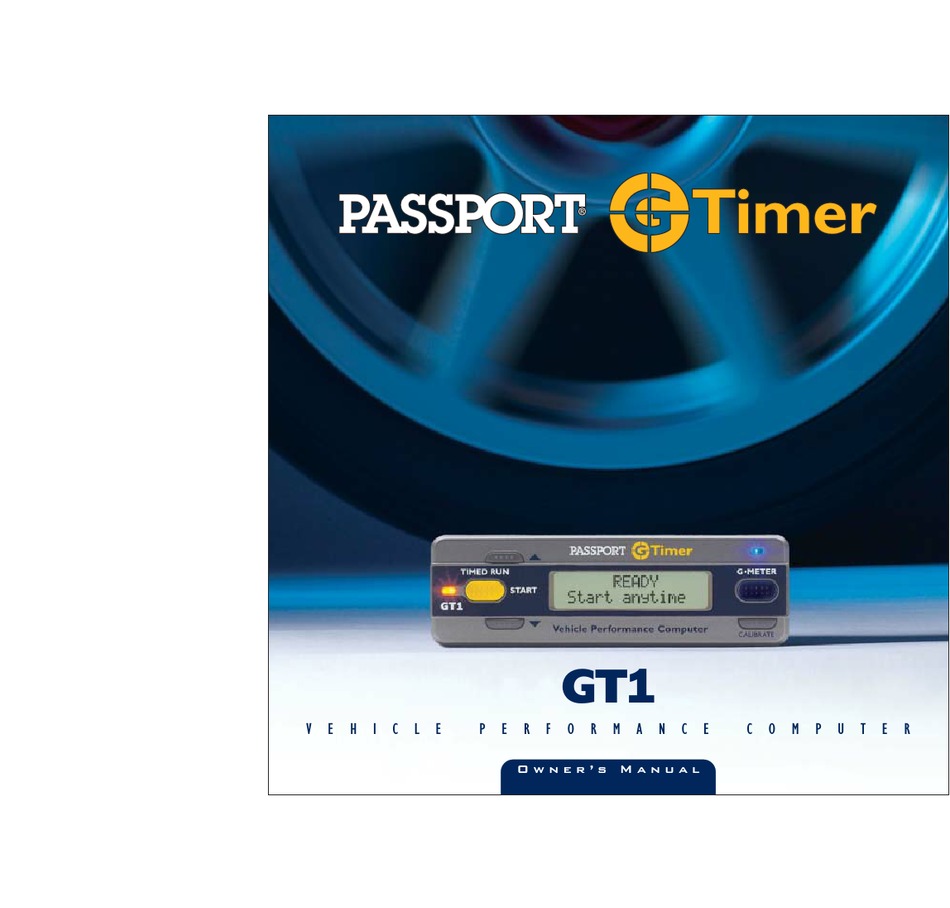

V E H I C L E
P E R F O R M A N C E
C O M P U T E R

Advertisement

Table of Contents
loading

Related Manuals for Escort Passport GT1

Summary of Contents for Escort Passport GT1

  • Page 1 V E H I C L E P E R F O R M A N C E C O M P U T E R...

  • Page 2: Table Of Contents

    WARNING Index The manufacturer is not responsible for any accidents, property damage, or injuries that occur while using One-button Operation the Performance Computer. Quick Start Guide Like your car’s speedometer, this device is no more than a measuring instrument, a tool that can be used to Remote Control Cord measure vehicle performance.

  • Page 3: Quick Start Guide

    Quick Start Guide Please read the entire manual to learn details of the many capabilities of your new Performance Computer. This page provides only a basic overview of the instal- lation, features, and capabilities. INSTALLATION 1) Plug into lighter socket Plug the cord into the Performance Computer, and into your car’s lighter socket.

  • Page 4: Remote Control Cord

    Installation Mounting Location Unit must be mounted squarely in car Mount the unit on the windshield, centered between Mount the unit on the windshield, centered between driver and passenger. The unit must be straight across driver and passenger. The unit must be straight across the car.

  • Page 5: G-Meter Operation

    G-Meter Operation The basics of G-Forces When you’re not performing a Timed Run, the Perfor- mance Computer is in the G-Meter Mode, where it can Press and release the G-METER button display the acceleration, braking, and cornering forces to choose the G-Meter mode. of your car.
  • Page 6 G-METER OPTION 2: PEAK HOLD < .00 Press and release the G-METER button as necessary to Showing a recent acceleration peak of .38G. select “G-METER OPTION 2.” This display shows the peaks in acceleration, braking, left cornering, and right cornering G-Forces, and “holds”...

  • Page 7: How It Works

    G-METER OPTION 4: BEST 0 TO 60 RUNS G-METER OPTION 5: BEST 1/4 MILE RUNS Press and release the G-METER button as necessary to Press and release the G-METER button as necessary to select “G-METER OPTION 4.” select “G-METER OPTION 5.” This display does not show G-Forces, it only displays This display does not show G-Forces, it only displays your 10 best 0 to 60 times to date.
  • Page 8 Timed Runs Your Performance Computer’s intuitive “one-button” 1: HOW TO START A TIMED RUN operation makes timing your car’s performance easy. Car must be stopped. You start the process by pressing the TIMED RUN but- ton. The unit performs an internal calibration, then the Press and release the timer starts automatically when you accelerate, and TIMED RUN button.
  • Page 9 4: REVIEWING DETAILED RUN RESULTS The Performance Computer automatically records all Here is an example of the data you can run data during a timed run. To review the data after view after each timed run. the run, press the UP and DOWN buttons. Each time you press the DOWN button, The data for your most recent run is automatically kept you will see another screen of data.

  • Page 10: Measuring Horsepower

    Measuring Horsepower Your Performance Computer can measure your car’s peak and average horsepower, but to do so, you have to enter the following data using the Setup mode (see You must enter the weight of your vehicle. This infor- page 20): mation is usually available in your vehicle owner’s The weight of the vehicle manual or brochure.
  • Page 11 Setup Mode The Setup mode lets you enter your car’s weight and HOW TO ENTER THE SETUP MODE make other selections to optimize horsepower mea- surement, and also customize the operation of other Hold the G-METER button. features. After 5 seconds, you will see G-Meter and Timed Run accuracy these two alternating instructions: For most cars, it is not necessary to...
  • Page 12 To enter the Setup Mode, hold the G-METER button. ROLL CHARACTERISTICS OF CAR Then follow the on-screen instructions, which are: Most users won’t need to adjust this setting. • To go to the next item, press the START button. This describes the specific way your car leans during •...
  • Page 13 DETAILS ON SETUP MODE ITEMS (cont’d) 14 BRAKE TEST You must change this setting if you want your Performance Computer to perform brake tests. 13 END TIMED RUN Most users won’t need to adjust this setting. You can choose to include “60mph to zero” brake test- You can choose to end timed runs automatically, or time ing in timed runs.

  • Page 14: Optional Accessories

    DETAILS ON SETUP MODE ITEMS (cont’d) 19 FACTORY DEFAULT Most users won’t need to use this command. This lets you restore all of the Setup items to their origi- 17 TRIGGER Most users won’t need to adjust this setting. nal factory default settings. It also clears all runs in This sets the G-Force criteria to start timed runs.

  • Page 15: Troubleshooting

    Troubleshooting run at the drag strip, since changes in your position of See additional troubleshooting tips, FAQ’s, and other only a few inches will significantly affect the drag strip information on our website, or email us at: times due to rollout. support@escortinc.com •...

  • Page 16: Warranty

    Mail the unit and Power Cord To: 1-800-543-1608 We may be able to solve your problem over the phone. ESCORT If the problem requires that you send your Performance Customer Service Department Computer to the factory for repair, we will provide you...
  • Page 17 Escort Incorporated 5440 West Chester Road West Chester, Ohio 45069 Sales 800-433-3487 Service 800-543-1608 www.gtimer.com ©2003 Escort Inc. Escort ® , Passport ® and G-Timer ™ are trademarks of Escort Inc. Features, specifications and prices subject to change without notice.
