Front Panel Controls

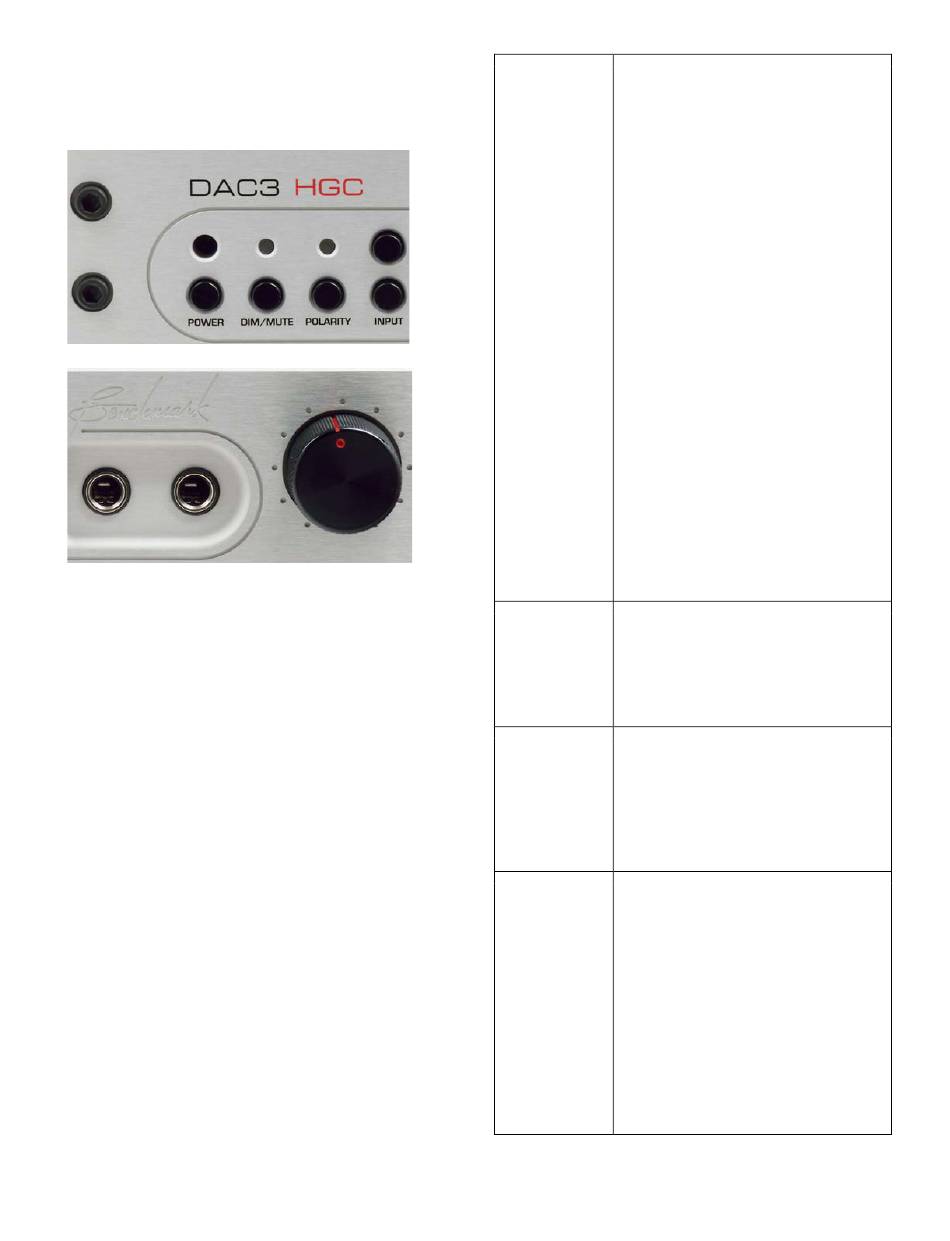

The front panel controls duplicate all of the
functions that are available from the remote
control.
One additional function, AUTO-ON, is only
controllable from the front panel. The AUTO-
ON function keeps the DAC3 on whenever AC
line voltage is supplied.
Tip: When AUTO-ON is enabled, a switched
AC outlet can be used to turn your system on
and off. The 12V TRIGGER I/O can be used
as a trigger output to control the power state
of additional components.
The chart at the right summarizes the
functions of the front-panel controls.
Instruction Manual for DAC3 HGC and DAC3 L with
POWER Turns the unit on or off. Any
devices slaved to the 12V
TRIGGER will also turn on or
off in a controlled sequence.
Press and hold the POWER
button for 3 seconds to force
the 12V TRIGGER off (only
necessary when another device
is acting as a TRIGGER BUS
MASTER).
Starting with the unit off, press
and hold the POWER button
for 3 seconds to set the AUTO-
ON function.
Starting with the unit on, press
and hold the POWER button
for 3 seconds to clear the
AUTO-ON function.
If AUTO-ON is set, the
POWER button will toggle
MUTE on and off (the unit will
remain on).
DIM/MUTE Press once to toggle the -20 dB
DIM function.
Double tap to set the MUTE
function.
INPUT Selects the inputs.
Press and hold both input
buttons for 3 seconds to toggle
between the USB 1.1 and USB
2.0 modes.
VOLUME This motor-driven knob can be
(knob) turned by hand at any time
(even when being driven by the
motor).
If HT mode is off, the motor
drive will release when the
knob is held or turned by hand.
If HT mode is on, the motor
drive will attempt to return the
volume control to the HT
setting.
2.X Firmware Page 10
