Govaplast Play Bench Maxi User Manual

According to EN1176, this bench is not considered as being a play equipment.

Therefore, a TÜV-certificate is not required.

Govaerts Recycling NV | Kolmenstraat 1324 | B-3570 Alken | info@govaplast.com | www.govaplast.com

180

User manual GP11

„Bench Maxi"

(version 2015-01)

Latest version can always be found at www.govaplay.com

100% recycled material

Material

Solid boards made of recycled plastic (PE), coloured throughout

(beige and brown)

Stainless steel screws (6 and 8 mm)

Galvanized reinforcement profile

The bench GP11 is delivered fully assembled. Can be anchored.

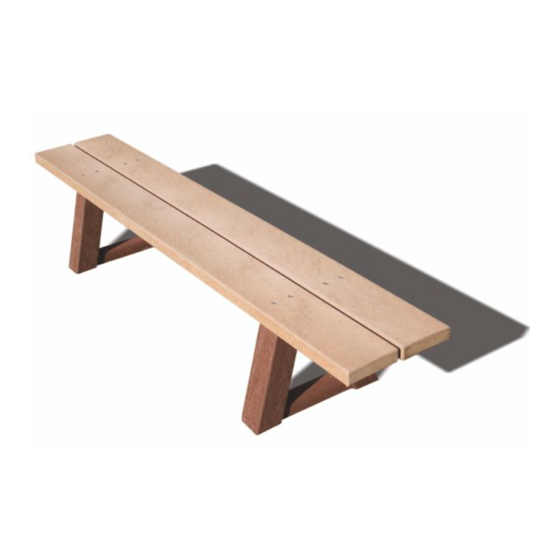

The bench consists of 2 brown bench legs and a seat with length

of 180 cm. The bench legs are made of 80 x 80 mm posts,

mounted at 15°, with a cross beam 60 x 60 mm at the bottom. The

seat consists of 2 boards 40 x 150 mm and length of 1800 mm

which are both reinforced underneath with a galvanized profile.

The edges of the boards are rounded. The seat height is 34 cm.

The bench can be anchored by fixing a threaded rod (M12, 50 cm

long) and nut in each pre-drilled hole (12 mm) of the bench leg.

+/- 29 kg

Table of Contents

Do you have a question about the Bench Maxi and is the answer not in the manual?

Page 1 User manual GP11 „Bench Maxi" (version 2015-01) Latest version can always be found at www.govaplay.com +/- 29 kg 100% recycled material According to EN1176, this bench is not considered as being a play equipment. Therefore, a TÜV-certificate is not required.
Page 2 Anchorage GP11 on a hard and flat surface Anchorage is not necessarily needed on a school playground with supervision. The anchorage is done by fixing the nail plugs into the holes of the two lower boards. Position the bench on the desired place and mark the 2 anchorage points.
