Govaplast Play Train User Manual

Hide thumbs Also See for Train:

Advertisement

Quick Links

Download this manual
tranche d'age 1 <=> 12 age range
GP
25
7
conforme aux exigences de sécurité
Govaerts Recycling NV
Kolmenstraat 1324
3570 Alken, Belgium
GP25a
locomotive red
102 x 129 x 75 cm, 71 kg
Mounting
The Locomotive and wagons are delivered fully assembled, no
mounting is needed (only anchorage).
Material
Ÿ
Solid posts and planks made of recycled plastic (PE), coloured
throughout (beige, green and brown).
Ÿ
Stainless steel screws (6 and 8 mm)
Ÿ
Virgin PE sheets (12,5 and 19 mm), yellow, blue and red, UV-
resistant
Maintenance
The train GP25 does not have any movingparts.
Maintenance of the recycled plastic material is very limited.
Cleaning with a soapy water and a sponge or soft brush. Rinse with
water to remove all dirt and soap. As the water absorption of the
material is less than 0,29%, it will not get stained by oil, grease and
other products. Besides, mosses and algae will have difficult to
adhere to the material and are very easy to remove.
Cleaning with high-pressure (max. 100 bar) is possible but is not
recommended and mostly not needed. If anyway, then spray with a
fan-shaped jet at minimum 30 cm from the plastic surface.
Painting or staining is useless as the paint will not stick attach to
the material.
Govaerts Recycling NV | Kolmenstraat 1324 | B-3570 Alken | info@govaplast.com | www.govaplast.com
Latest version can always be found at www.govaplay.com
GP25b-g
railway wagon green
105 x 179 x 45cm, 117 kg
Inspection Requirements
Visual inspection
Depending on the intensity of use: weekly or monthly
Functional inspection
Depending on the intensity of use: monthly to four-monthly
Yearly inspection
Special attention to following issues:
- Worn, loose, damaged, missing parts
- Screws sticking out
- Anchorage
- Vandalism

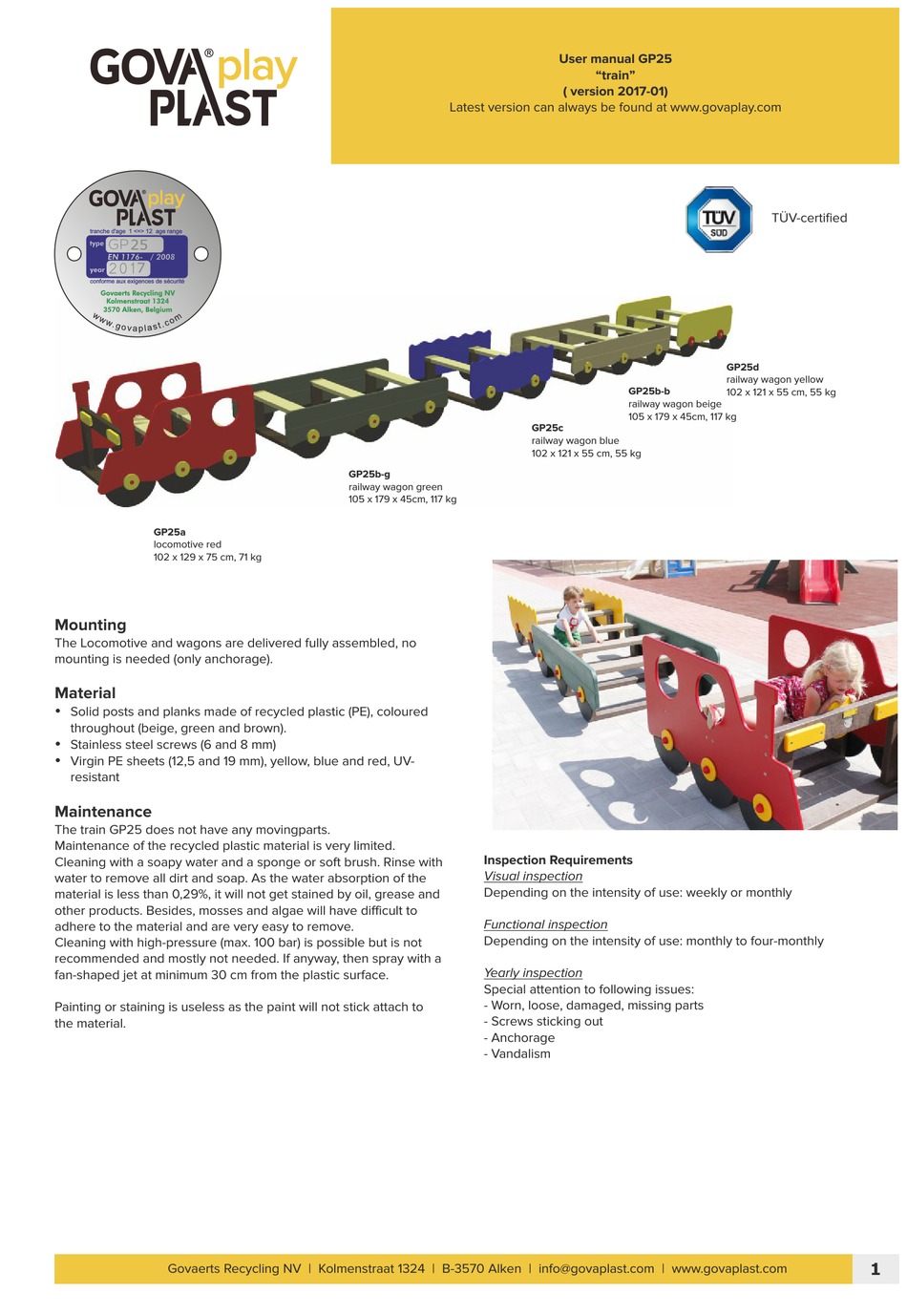

User manual GP25
"train"
( version 2017-01)
GP25b-b
railway wagon beige
105 x 179 x 45cm, 117 kg
GP25c
railway wagon blue
102 x 121 x 55 cm, 55 kg
TÜV-certified
GP25d
railway wagon yellow
102 x 121 x 55 cm, 55 kg
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Train and is the answer not in the manual?

Questions and answers

Related Manuals for Govaplast Play Train

Summary of Contents for Govaplast Play Train

  • Page 1 Virgin PE sheets (12,5 and 19 mm), yellow, blue and red, UV- resistant Maintenance The train GP25 does not have any movingparts. Maintenance of the recycled plastic material is very limited. Inspection Requirements Cleaning with a soapy water and a sponge or soft brush. Rinse with Visual inspection water to remove all dirt and soap.

  • Page 2: Safety Zone

    According to EN 1176, anchorage is required in public playgrounds and all other playgrounds without supervision. No need for safety surfacing As the fall height of the train is less than 60 cm, a shock absorbing safety surface is not required. The surface should be flat and solid. Anchorage Anchorage is required as the locomotive and wagons are easy to move.
  • Page 3 GP25A tranche d'age 1 <=> 12 age range conforme aux exigences de sécurité Govaerts Recycling NV Kolmenstraat 1324 3570 Alken, Belgium GP25B 45,5 45,5 tranche d'age 1 <=> 12 age range axis to axis axis to axis conforme aux exigences de sécurité Govaerts Recycling NV Kolmenstraat 1324 3570 Alken, Belgium...
  • Page 4 GP25C 45,5 axis to axis tranche d'age 1 <=> 12 age range conforme aux exigences de sécurité Govaerts Recycling NV Kolmenstraat 1324 3570 Alken, Belgium GP25D (dimensions of GP25d are identical to GP25c but upper side is straight instead of curved) tranche d'age 1 <=>...
  • Page 5 TÜV SÜD Benelux Bedrijvencentrum De Malt Leuvensesteenweg 350 B – 3190 Boortmeerbeek Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-11-700 849 Met dit certificaat wordt verklaard dat het – Ce certificat déclare que Trein - Locomotive met als type aanduiding –...
  • Page 6 CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-11-700 849 Product omschrijving – Description du produit Locomotive est un train en forme de locomotive sur lequel les enfants peuvent s’asseoir et jouer. Typenummer – Type: GP25A Afmetingen – Dimensions: 1290 x 1020 x 750 mm Toepassingen en beperkingen –...
  • Page 7 TÜV SÜD Benelux Bedrijvencentrum De Malt Leuvensesteenweg 350 B – 3190 Boortmeerbeek Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-11-700 849 Documenten – Documents Gebruikshandleiding - Mode d’emploi: GH_GP25 Technisch constructie dossier - Dossier de construction Markering van het product –...
  • Page 8 Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-12-700 849 Met dit certificaat wordt verklaard dat het – Ce certificat déclare que Trein - Train met als type aanduiding – avec identification GP25B geleverd door – délivré par Govaplast - Govaplay Kolmenstraat 1324, 3570 Alken Belgique voldoet aan de eisen gesteld in –...
  • Page 9 Z-NL-14-09-5123-12-700 849 Product omschrijving – Description du produit Un train avec 3 sièges et 2 panneaux à côté droit sur lequel les enfants peuvent s’asseoir et jouer. Typenummer – Type: GP25B Afmetingen – Dimensions: 1790 x 1050 x 450 mm Toepassingen en beperkingen –...
  • Page 10 TÜV SÜD Benelux Bedrijvencentrum De Malt Leuvensesteenweg 350 B – 3190 Boortmeerbeek Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-12-700 849 Documenten – Documents Gebruikshandleiding - Mode d’emploi: GH_GP25 Technisch constructie dossier - Dossier de construction Markering van het product –...
  • Page 11 Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-13-700 849 Met dit certificaat wordt verklaard dat het – Ce certificat déclare que Trein - Train met als type aanduiding – avec identification GP25C geleverd door – délivré par Govaplast - Govaplay Kolmenstraat 1324, 3570 Alken Belgique voldoet aan de eisen gesteld in –...
  • Page 12 CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-13-700 849 Product omschrijving – Description du produit Un train avec 2 sièges et 2 panneaux dentelés sur lequel les enfants peuvent s’asseoir et jouer. Typenummer – Type: GP25C Afmetingen – Dimensions: 1210 x 1020 x 550 mm Toepassingen en beperkingen –...
  • Page 13 TÜV SÜD Benelux Bedrijvencentrum De Malt Leuvensesteenweg 350 B – 3190 Boortmeerbeek Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-13-700 849 Documenten – Documents Gebruikshandleiding - Mode d’emploi: GH_GP25 Technisch constructie dossier - Dossier de construction Markering van het product –...
  • Page 14 Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-14-700 849 Met dit certificaat wordt verklaard dat het – Ce certificat déclare que Trein - Train met als type aanduiding – avec identification GP25D geleverd door – délivré par Govaplast - Govaplay Kolmenstraat 1324, 3570 Alken Belgique voldoet aan de eisen gesteld in –...
  • Page 15 Z-NL-14-09-5123-14-700 849 Product omschrijving – Description du produit Un train avec 2 sièges et 2 panneaux de côté droit sur lequel les enfants peuvent s’asseoir et jouer. Typenummer – Type: GP25D Afmetingen – Dimensions: 1210 x 1020 x 550 mm Toepassingen en beperkingen –...
  • Page 16 TÜV SÜD Benelux Bedrijvencentrum De Malt Leuvensesteenweg 350 B – 3190 Boortmeerbeek Tel. +32 (0)15 50 96 30 TYPE GOEDKEURING CERTIFICAAT CERTIFICAT DE CONFORMITE Z-NL-14-09-5123-14-700 849 Documenten – Documents Gebruikshandleiding - Mode d’emploi: GH_GP25 Technisch constructie dossier - Dossier de construction Markering van het product –...
