Typical Hookup Of Cool Only System (1C Conventional) - Uni-Line Perfect Sense PS4000 Installation And Owner's Manual

1. POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
2. FACTORY INSTALLED JUMPER.
3. OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE
SEPARATE FROM THE THERMOSTAT CABLE.
NOTE: W2 AND Y2 ARE ONLY ON THE PS5000.

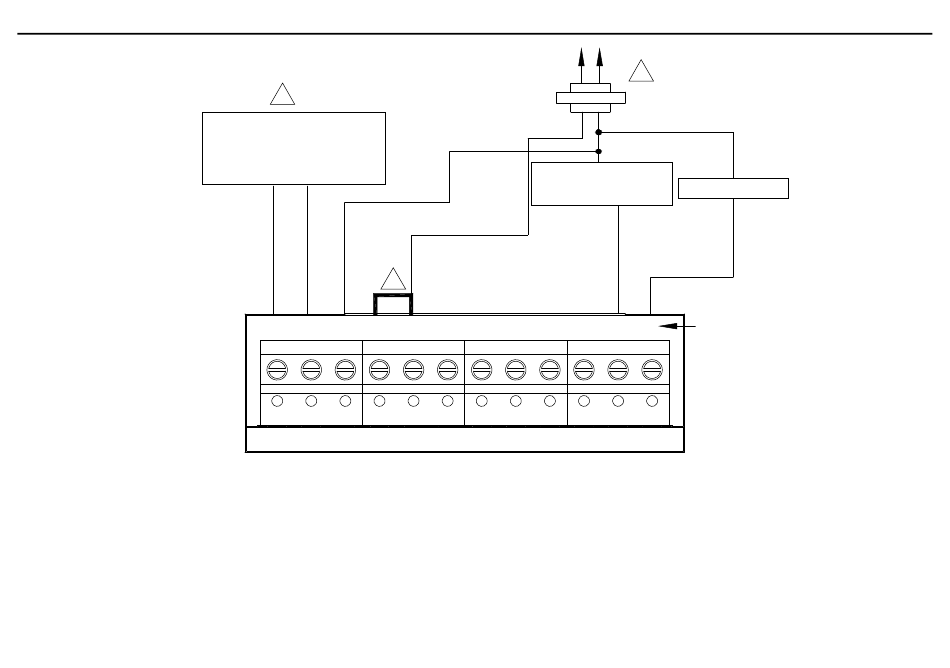

Figure 15. Typical hookup of cool only system (1C conventional).
PS4000/PS5000 Touchscreen Programmable Thermostat
3
OUTDOOR/INDOOR
TEMPERATURE
SENSOR
S1 S2 C R RC
OPTIONAL
R
24V AC
COMMON
CONNECTION
COMPRESSOR
CONTACTOR
2
W W2
C 1
FAN RELAY
Y2 Y G
CONVENTIONAL
