TVD-CB3 Cup Base Installation
Instructions
Dimensions

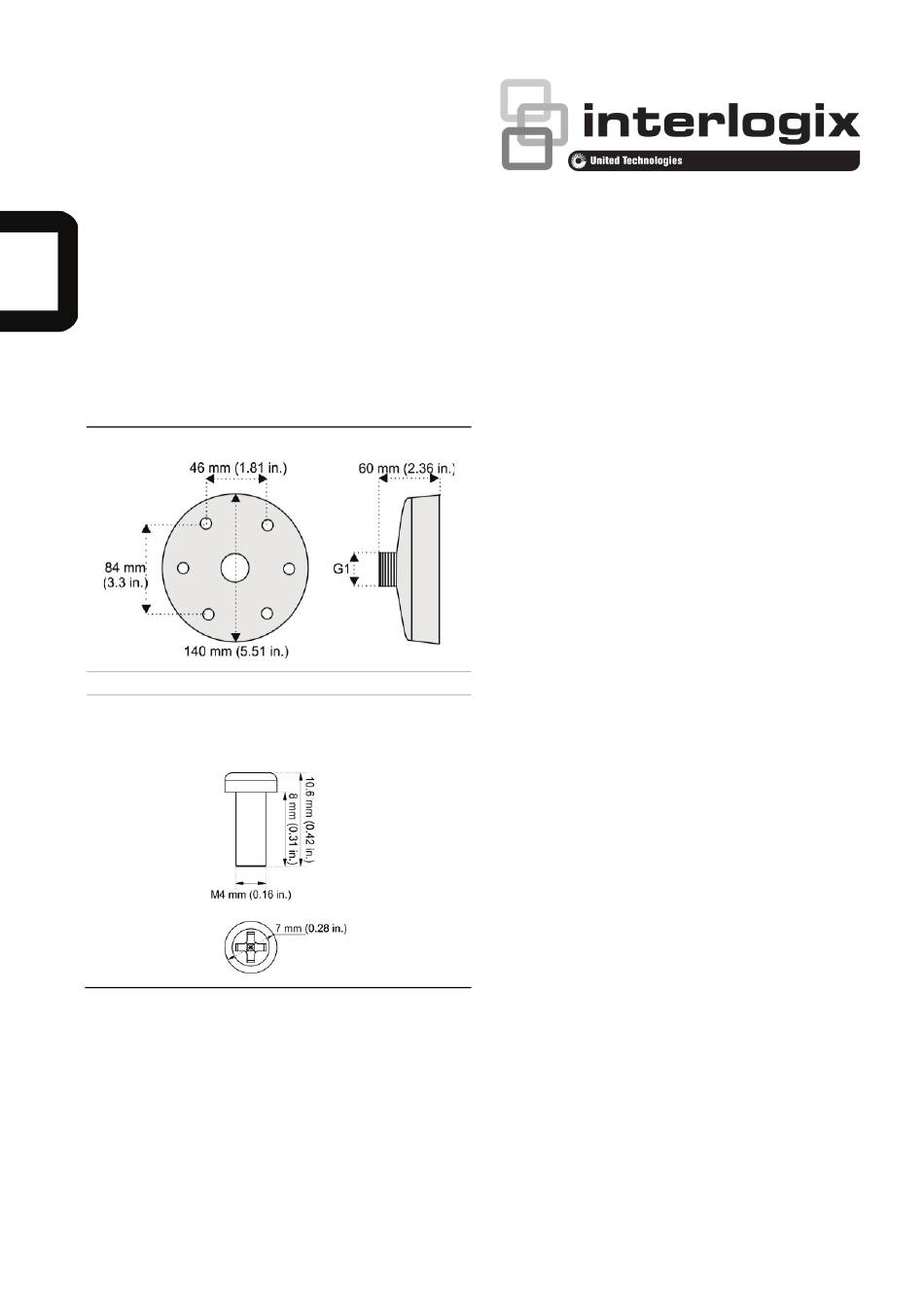

Dimensions:
Weight:
335 g (0.73 lb.)
Accessories:
Screw A:
3 pcs.
Used to install the camera adapter plate to the cup base.
Supported devices
•
TVD-5301
•
TVD-5302
•
TVD-5303
P/N 1073419-EN • REV A • ISS 13FEB18
•
TVT-5501
•
TVT-5502
•
TVD-2202/4202
•
TVD-5304
•
TVD-5305
•
TVD-5306
•
TVT-5301
•
TVT-5302
•
TVT-5303
•
TVT-5304
•
TVT-5305
•
TVT-5306
•
TVT-5307
•
TVD-5401
•
TVD-5402
•
TVD-5403
•
TVD-5501
•
TVD-5502
Installing a TVD-CB3 cup base
to a dome camera
It is a similar process for a turret camera.
Refer to the turret camera installation guide
for details. When assembling a TVD-CB3 to a
dome camera, you require:
•
TVD-CB3 cup base
•
Adapter plate, included with dome or
turret camera
•
TVD-2401/4401
•
TVD-2402/4402
•
TVD-2403/4403
•
TVD-2404/4404
•
TVD-2405/4405
•
TVD-2406/4406
•
TVT-2401/4401
•
TVT-2402/4402
•
TVT-2403/4403
•
TVT-2404/4404
•
TVD-SNB Swan
Neck Wall Mount
•
TVD-PPB
Pendant Mount
•
TVD-CBW Wall
Mount
1 / 4
