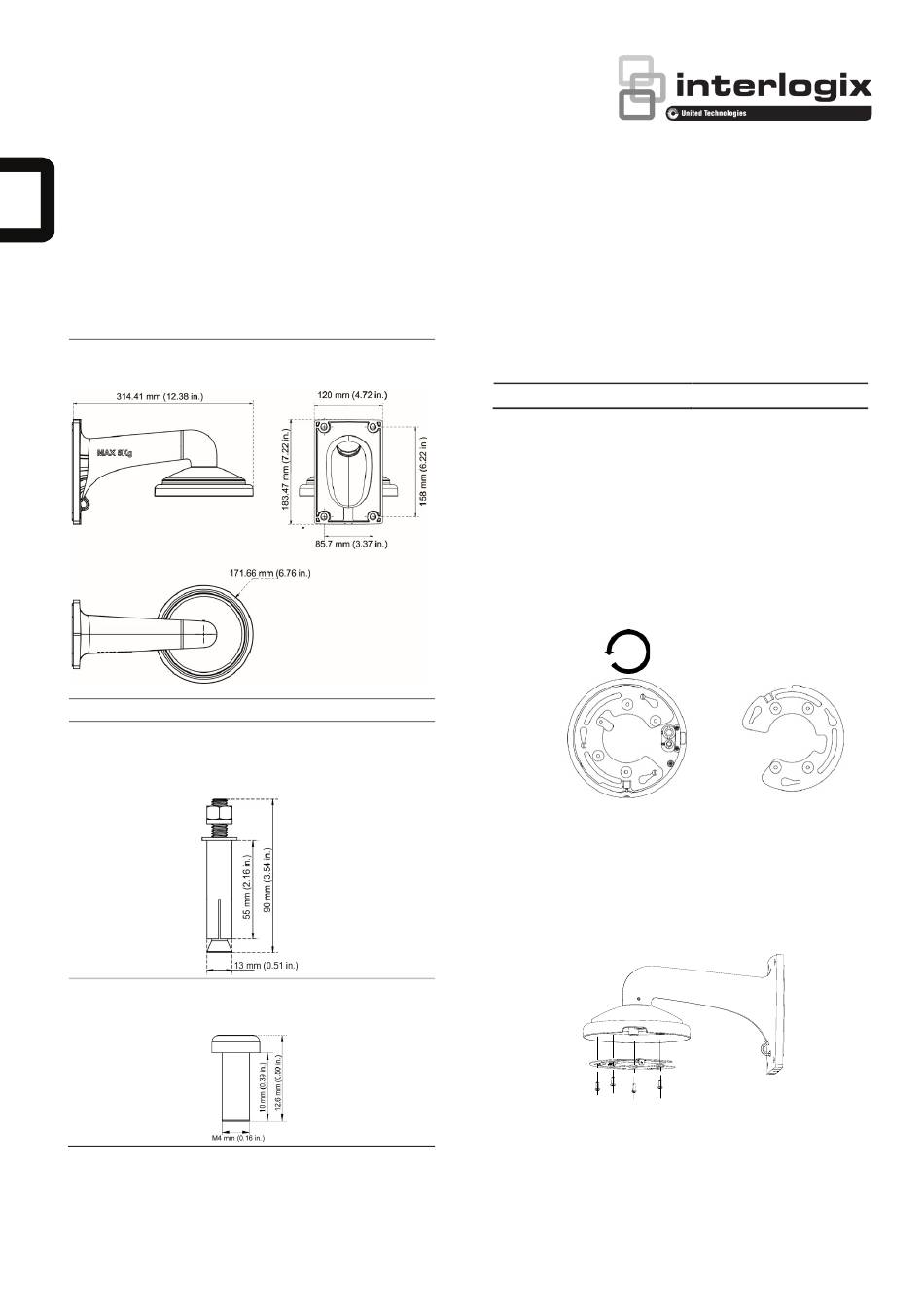

Interlogix TVP-CCBWM Installation Instructions

TVP-CCBWM Compact Cup Base PTZ Wall
Mount Installation Instructions

Specifications

Dimensions: 183.47 × 120 × 314.41 mm (7.22 × 4.72
× 12.38 in.)
Weight: 1120 g (3.57 lbs.)
Accessories:
Expansion anchors: 4 pcs
Used to install the TVP-CCBWM wall mount to the mounting
surface.
Screw A: 4 pcs
Used to install the mounting plate to the TVP-CCBWM wall
mount.
P/N 1073436-EN • REV D • ISS 21SEP18
Supported cameras
The compact cup base PTZ wall mount can be used with
following cameras:
IP Compact PTZ Camera:
Installation
To install the TVP-5103 PTZ camera to a mounting surface
using the TVP-CCBWM wall mount:
1. Using the Torx wrench that is supplied with the PTZ,
loosen the Torx screw at the base of the PTZ.
Loosen slightly the three screws/standoffs on the base of
the PTZ camera and rotate the metal adapter plate
counterclockwise to separate it from the PTZ camera.
Open
2. Place the metal PTZ adapter plate on the cup base wall
mount. The arrow that states FRONT should be pointing
away from the base of the wall mount. Using screw A,
secure the adapter plate to the wall mount. Tighten screw
A fully. Otherwise, the dome will not slide properly into
place over the three standoffs, and the screw head will
block the rotation.
3. Use the wall mount base to mark the holes for the
expansion anchors and to also provide access for the
cable harness prior to installing with the mount.
4. Secure the wall mount to the mounting surface using the
expansion anchors.
TVP-5103
1 / 2
