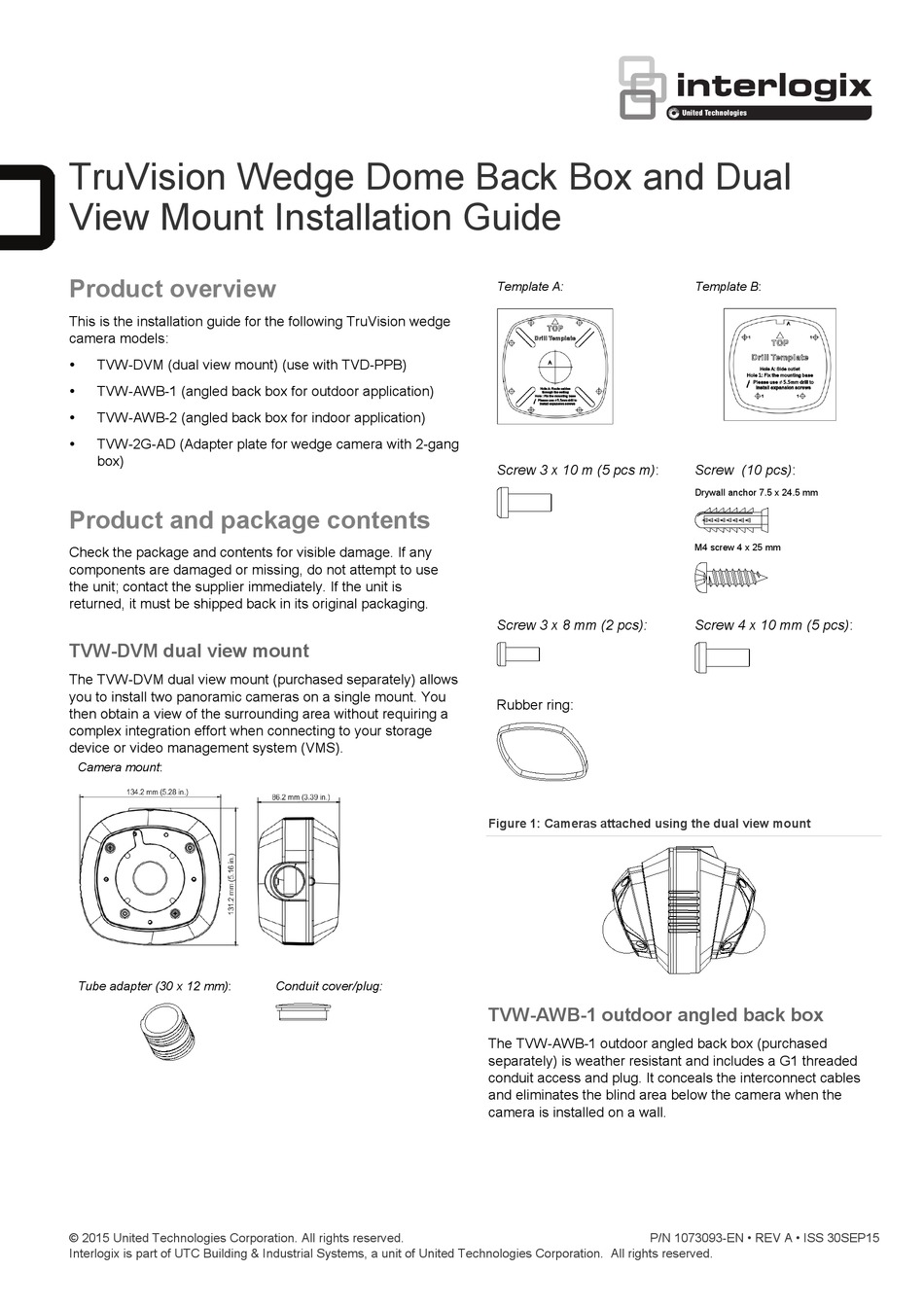

TruVision Wedge Dome Back Box and Dual
View Mount Installation Guide
Product overview
This is the installation guide for the following TruVision wedge
camera models:
TVW-DVM (dual view mount) (use with TVD-PPB)
TVW-AWB-1 (angled back box for outdoor application)
TVW-AWB-2 (angled back box for indoor application)
TVW-2G-AD (Adapter plate for wedge camera with 2-gang
box)
Product and package contents
Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use
the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.
TVW-DVM dual view mount
The TVW-DVM dual view mount (purchased separately) allows
you to install two panoramic cameras on a single mount. You
then obtain a view of the surrounding area without requiring a
complex integration effort when connecting to your storage
device or video management system (VMS).
Camera mount:
Tube adapter (30 x 12 mm):
© 2015 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved.
Conduit cover/plug:
Template A:
Screw 3 x 10 m (5 pcs m):
Screw 3 x 8 mm (2 pcs):
Rubber ring:
Figure 1: Cameras attached using the dual view mount
TVW-AWB-1 outdoor angled back box
The TVW-AWB-1 outdoor angled back box (purchased
separately) is weather resistant and includes a G1 threaded
conduit access and plug. It conceals the interconnect cables
and eliminates the blind area below the camera when the
camera is installed on a wall.
P/N 1073093-EN • REV A • ISS 30SEP15
Template B:
Screw (10 pcs):
Drywall anchor 7.5 x 24.5 mm
M4 screw 4 x 25 mm
Screw 4 x 10 mm (5 pcs):
Advertisement
Table of Contents
Related Manuals for Interlogix TruVision TVW-DVM
Summary of Contents for Interlogix TruVision TVW-DVM
- Page 1 © 2015 United Technologies Corporation. All rights reserved. P/N 1073093-EN • REV A • ISS 30SEP15 Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved.
- Page 2 Camera back box: Camera back box: Tube adapter (30 x 12 mm): Conduit cover/plug: Screw 5 pcs: Template B Drywall anchor (7.5 x 24.5 mm) M4 screw (4 x 25 mm) Rubber ring: Template A Screw 3 pcs (4 x 10 mm): Figure 3: Camera mounted on an indoor back box Screw (5 pcs): Screw 3 x 10 mm (5 pcs):...
- Page 3 Screw 5 pcs: Screw 3 x 8 mm (2 pcs): Drywall anchor (7.5 x 24.5 mm) M4 screw (4 x 25 mm) Screw 4 x 10 mm (3 pcs): Figure 4: Wedge camera attached to a 2 gang box Mount the two cameras on both sides of the TVW-DVM dual view mount.
- Page 4 Mount the outdoor angled back box to the TVW-2G-AD adaptor plate using the supplied hardware. Loosen the screws with the tamper-resistant hex wrench (supplied) to remove the camera cover. Loosen the screws with the tamper-resistant hex wrench (supplied) to remove the camera cover. Connect the cables, conceal the cables and connectors inside the back box and mount the camera base to the Connect the cables, conceal the cables and connectors...
- Page 5 Re-attach the camera cover to the camera. Contact information For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu. P/N 1073093-EN • REV A • ISS 30SEP15 5 / 5...
