Cane Creek DROPT Installation Instructions Manual

DROPT Installation Instructions
Bar Mount Installation Options:
1. Using handle bar mount, fasten 2.5mm hex key 1.1 Nm
onto handlebar at desired position.
Handle Bar
Fastener Bolt
2.5 mm Hex Key
1.1 Nm
Lever Adjustment Options:
1. Lever Clamp location
Clamp
Clamp
location
location
option 1.
option 2.
DROPT Installation Instructions

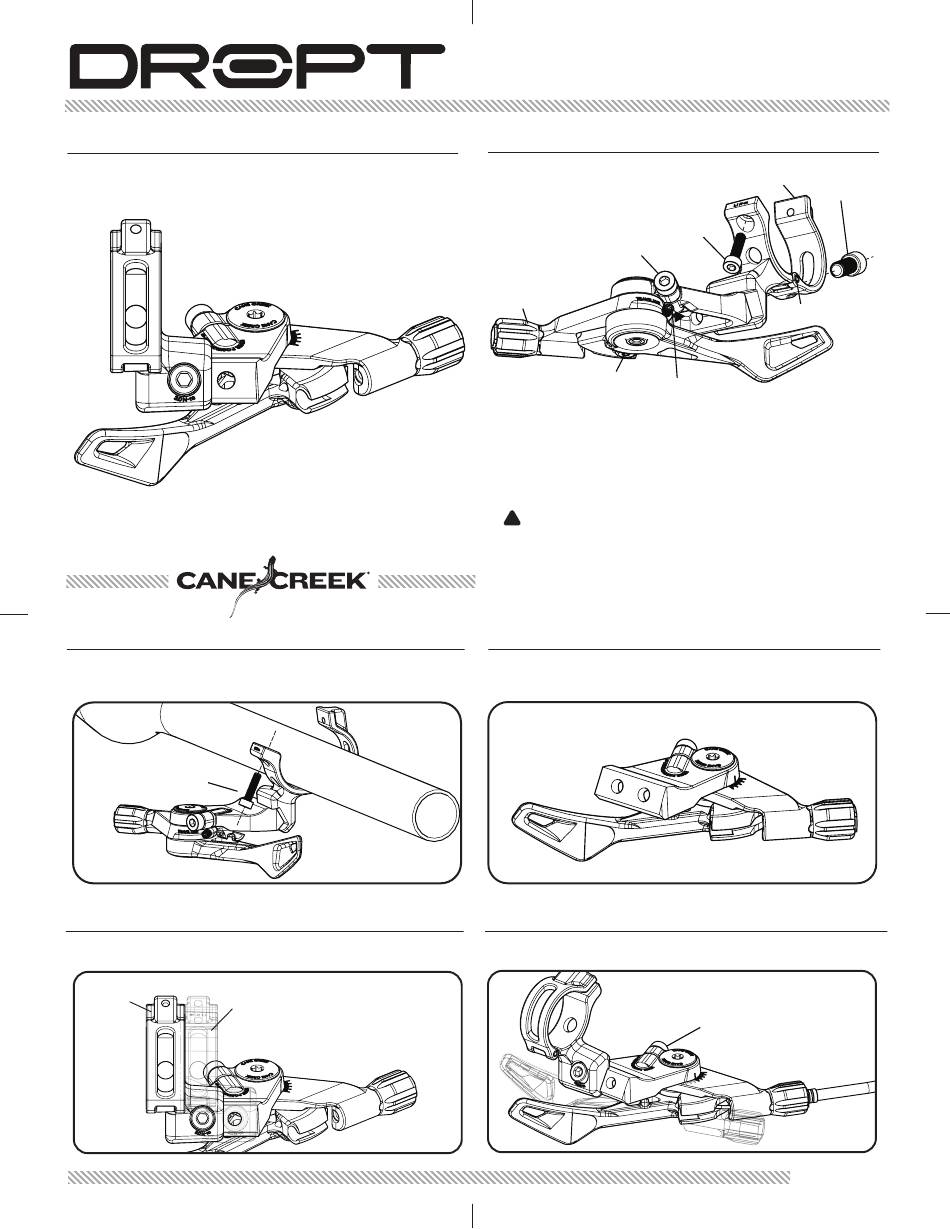

Product Anatomy:
Included in the package
Handle Bar
Fastener Bolt
2.5 mm Hex Key
Lever Positioning
Bolt 3mm Hex Key
Cable Tension
Adjuster
Cable Fastening
Bolt 1.5mm Hex Key
Tools Needed Required for Installation
• 1.5mm Hex Key
Shifter cable, Shifter housing.
• 2.5mm Hex Key These items are not included in the
packaging, but are required for
• 3mm Hex Key
installation.
• Cable Cutter
! WARNING
!
BE SURE TO FOLLOW ALL MANUFACTURER'S GUIDELINES FOR
SERVICING AND INSTALLING THE COMPONENTS OF YOUR
BICYCLE. IMPROPERLY INSTALLED COMPONENTS CAN RESULT IN
SERIOUS AND/OR FATAL INJURY. WE ALWAYS RECOMMEND YOU
HAVE YOUR COMPONENTS SERVICED AND INSTALLED BY A
QUALIFIED BICYCLE MECHANIC.
2. Using only the lever assembly, fasten 3mm lever
fastener bolt 3.0 Nm to AVID® Matchmaker™ location.
AVID® MatchMaker™
Compatible.
2. Lever Positioning
Lever Fastener
Handle Bar Clamp
Bolt 3mm
Hex Key
Hinge Removal
Bolt 1.5mm Hex Key
Travel Limit
Bolt 1.5mm Hex Key
Lever Positioning
Bolt 3mm Hex Key
Loosen to adjust.
Fasten to 3.2 Nm.
AAE0079
