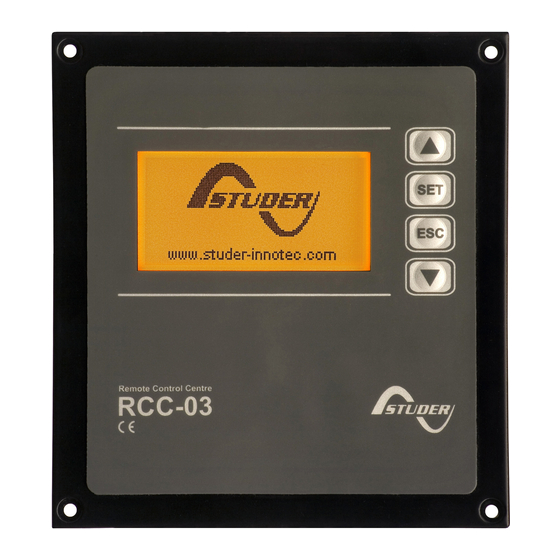

RCC-02/-03 remote control
Quick guide
The complete RCC user manual is available on the Studer SD card provided with the product. All
user manuals can also be downloaded from our website: www.studer-innotec.com.
Studer Innotec SA 2018 – V6.1.0
4O9C7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCC-02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Studer RCC-02

Summary of Contents for Studer RCC-02

  • Page 1 RCC-02/-03 remote control Quick guide The complete RCC user manual is available on the Studer SD card provided with the product. All user manuals can also be downloaded from our website: www.studer-innotec.com. Studer Innotec SA 2018 – V6.1.0 4O9C7...

  • Page 2: Table Of Contents

    Studer Innotec SA Quick guide RCC-02/-03 TABLE OF CONTENTS INTRODUCTION ............................ 3 Contents: RCC remote control ....................3 LIMITATION OF RESPONSIBILITY ......................3 CONNECTION ............................4 Correct positioning of the RCC ....................4 Setting the link ends ........................4 USING THE REMOTE CONTROL ......................4 SYSTEM CONFIGURATION ........................

  • Page 3: Introduction

    The use of Studer Innotec devices is the responsibility of the customer in all cases. This equipment is neither designed nor guaranteed to supply installations used for vital medical care or any other critical installation carrying significant potential damage risks to people or to the environment.

  • Page 4: Connection

    Each device is equipped with a switch offering to choose between open "O" and terminated "T". By default, all switches are in the "T"- position on Studer Innotec products. Devices at the end of the line must be set to "T" (one cable) and all the others to "O" (two cables). A wrong setting of the termination switches can lead to an erratic running of the installation or impede its updating.

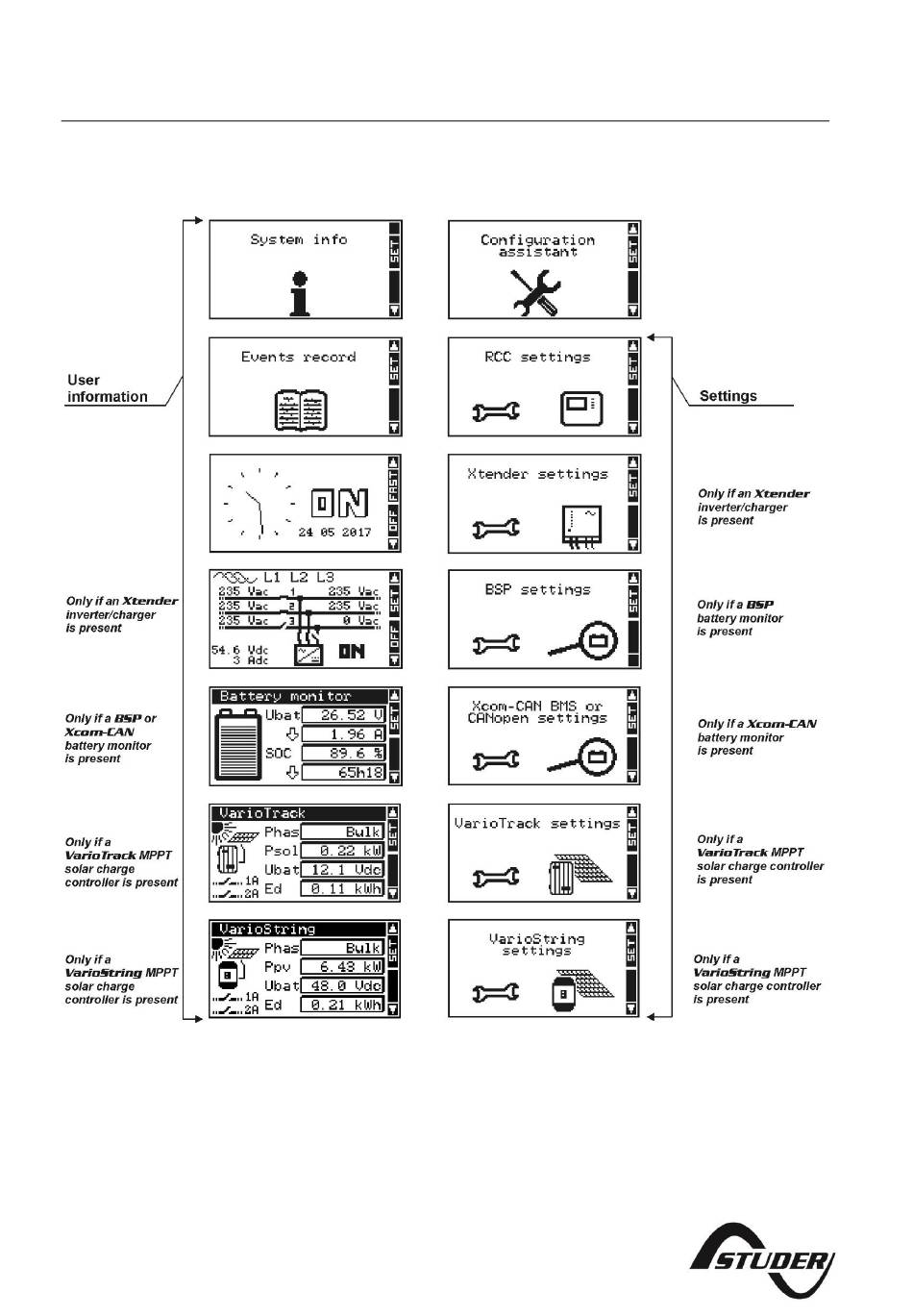

  • Page 5: System Configuration

    An understanding of each parameter and its impact on the system is required when a change is made. For more information on RCC-02/-03 features, see also the "accessories" chapter of the Xtender, VarioTrack, or VarioString user manuals. The functions of the auxiliary contacts are not modified by the Configuration Assistant and retain their factory functions as described in Chap.

  • Page 6: Adjustment Of The Parameters

    Studer Innotec SA Quick guide RCC-02/-03 ADJUSTMENT OF THE PARAMETERS The parameters of your device are divided into several access levels, some protected by password. A description of the access levels is available in chapter 10.4 of the RCC user manual available on the SD card delivered with the RCC remote control.
  • Page 7 Studer Innotec SA Quick guide RCC-02/-03 Level RCC / Xcom-232i parameter description Factory value Expert 5053 Load BSP parameters Inst. 5054 Create BSP configuration file (masterfile) Expert 5055 Load BSP configuration file (masterfile) Expert 5084 Save and restore VarioTrack files...

  • Page 8: Configuration Of The Xtender (Inverter/Charger)

    Studer Innotec SA Quick guide RCC-02/-03 ONFIGURATION OF THE TENDER NVERTER CHARGER Level Xtender parameter description Factory value Basic 1100 BASIC SETTINGS Basic parameters set by means of the potentiomenter in Basic 1551 the XTS Basic 1107 Maximum current of AC source (Input limit)
  • Page 9 Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Expert 1147 Cycling restricted Expert 1148 Minimal delay between cycles 3 hours Expert 1451 Absorption phase Expert 1155 Absorption phase allowed Expert 1156 Absorption voltage 14.4/28.8/57.6 Vdc Expert...
  • Page 10 Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Expert 1128 Transfer relay allowed Expert 1580 Delay before closing transfer relay 0 min Basic 1126 Smart-Boost allowed Inst. 1607 Limitation of the power Boost 100% Basic 1107...
  • Page 11 Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Inst. 1216 Program 4 (AUX 1) Inst. 1217 Day of the week (AUX 1) None days Inst. 1218 Start hour (AUX 1) 07:00 hh:mm Inst. 1219 End hour (AUX 1) 20:00 hh:mm Inst.
  • Page 12 Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Expert 1248 Delay 1 (AUX 1) 1 min Expert 1249 Battery voltage 2 activate (AUX 1) Expert 1250 Battery voltage 2 (AUX 1) 11.9/23.9/47.8 Vdc Expert 1251 Delay 2 (AUX 1)
  • Page 13 Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Expert 1313 Program 1 (AUX 2) Expert 1314 Day of the week (AUX 2) None days Expert 1315 Start hour (AUX 2) 07:00 hh:mm Expert 1316 End hour (AUX 2)
  • Page 14 Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Expert 1345 AC out presence (AUX 2) Expert 1346 Bulk charge phase (AUX 2) Expert 1347 Absorption phase (AUX 2) Expert 1348 Equalization phase (AUX 2) Expert 1350...
  • Page 15 Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Expert 1596 Delay 3 (AUX 2) 0 hours Expert 1444 Contact deactivated over SOC (AUX 2) 90 % SOC Expert 1597 Delay to deactivate (AUX 2) 0.2 hours...

  • Page 16: Configuration Of The Bsp (Battery Status Processor)

    Studer Innotec SA Quick guide RCC-02/-03 Level Xtender parameter description Factory value Expert 1485 Prohibited ground relay Expert 1486 Continuous neutral Inst. 1628 Xtender watchdog enabled (SCOM) Inst. 1629 Xtender watchdog delay (SCOM) 60 sec Basic 1395 Restore default settings Inst.

  • Page 17: Configuration Of The Xcom-Can (Multi-Protocol Communication Module)

    Studer Innotec SA Quick guide RCC-02/-03 Level BSP parameter description Factory value Basic 6018 Nominal shunt voltage 50 mV Expert 6003 Reset of battery history Basic 6004 Restore default settings Inst. 6005 Restore factory settings Expert 6016 ADVANCED SETTINGS (BSP)

  • Page 18: Configuration Of The Variotrack (Mppt Solar Charge Controller)

    Studer Innotec SA Quick guide RCC-02/-03 (MPPT ONFIGURATION OF THE ARIO RACK SOLAR CHARGE CONTROLLER Level VarioTrack parameter description Factory value Basic 10000 BASIC SETTINGS Expert 10054 Block manual programming (dip-switch) Basic 10001 Voltage of the system Automatic Basic 10037...
  • Page 19 Studer Innotec SA Quick guide RCC-02/-03 Level VarioTrack parameter description Factory value Expert 10033 Time period under voltage level 2 to start a new cycle 2 min Expert 10034 Cycling restricted Expert 10035 Minimal delay between cycles 1 hours Expert...
  • Page 20 Studer Innotec SA Quick guide RCC-02/-03 Level VarioTrack parameter description Factory value Expert 10105 Absorption phase (AUX 1) Expert 10106 Equalization phase (AUX 1) Expert 10107 Floating (AUX 1) Expert 10108 Reduced floating (AUX 1) Expert 10109 Periodic absorption (AUX 1)
  • Page 21 Studer Innotec SA Quick guide RCC-02/-03 Level VarioTrack parameter description Factory value Expert 10150 Contact active on event (AUX 2) Expert 10199 VarioTrack is ON (AUX 2) Expert 10145 VarioTrack is OFF (AUX 2) Expert 10309 Remote entry (AUX 2)

  • Page 22: Configuration Of The Variostring (Mppt Solar Charge Controller)

    Studer Innotec SA Quick guide RCC-02/-03 (MPPT ONFIGURATION OF THE ARIO TRING SOLAR CHARGE CONTROLLER Level VarioString parameter description Factory value Basic 14000 BASIC SETTINGS Expert 14174 Block manual programming (dip-switch) Expert 14001 Battery charge current (VS-120) 120 Adc Expert...
  • Page 23 Studer Innotec SA Quick guide RCC-02/-03 Level VarioString parameter description Factory value Expert 14034 Minimal delay between cycles 1 hours Expert 14037 SYSTEM Expert 14174 Block manual programming (dip-switch) Expert 14040 Type of battery grounding No control Expert 14194 Configuration for VS-120...
  • Page 24 Studer Innotec SA Quick guide RCC-02/-03 Level VarioString parameter description Factory value Expert 14071 Operating mode (AUX 1) Automatic Expert 14072 Combination of the events for the auxiliary contact (AUX 1) Any (Function OR) Expert 14073 Contact activated in night mode (AUX 1)
  • Page 25 Studer Innotec SA Quick guide RCC-02/-03 Level VarioString parameter description Factory value Expert 14112 Contact activated with the SOC 2 of battery (AUX 1) Expert 14113 Contact activated below SOC 2 (AUX 1) Expert 14114 Delay 2 (AUX 1) 0.2 hours...

  • Page 26: User Information

    Studer Innotec SA Quick guide RCC-02/-03 Level VarioString parameter description Factory value Expert 14153 Delay to deactivate (AUX 2) 60 min Expert 14154 Deactivate if battery in floating phase (AUX 2) Contact active according to battery temperature (AUX 2) Expert...
  • Page 27 Studer Innotec SA Quick guide RCC-02/-03 Name Unit Xtender information description 3003 Comp P Cdyn Dynamic compensation of battery voltage 3001 Tbat °C Battery temperature 3002 Comp°C Ctmp Temperature compensation of battery voltage 3008 Low Voltage Disconect 3028 Mode Text...

  • Page 28: User Information On Bsp Displays

    Studer Innotec SA Quick guide RCC-02/-03 SER INFORMATION ON DISPLAYS Name Unit BSP information description 7000 Ubat Battery voltage 7001 Ibat Battery current 7002 State of Charge 7003 Pbat Power 7004 Trem Remaining autonomy 7007 0d< Ah charged today 7008 0d>...

  • Page 29: User Information On Variotrack Displays

    Studer Innotec SA Quick guide RCC-02/-03 Name Unit Xcom-CAN information description 7058 hSOC High resolution State of Charge 7061 UChL Charge voltage limit 7062 UDiL Discharge voltage limit 7063 IChL Charge current limit 7064 IDiL Discharge current limit 7065 IChR...

  • Page 30: User Information On Variostring Displays

    Studer Innotec SA Quick guide RCC-02/-03 SER INFORMATION ON ARIO TRING DISPLAYS Name Unit VarioString information description 15000 Ubat Battery voltage 15001 Ibat Battery current Battery cycle phase (Bulk, Absorpt., Equalize, Floating, ---, ---, 15002 Phas Text R.float., Per.abs., ---, ---, ---, ---)

  • Page 31: Messages, Account Of Events & Troubleshoot

    Studer Innotec SA Quick guide RCC-02/-03 Name Unit VarioString information description 15037 Ppmx Max PV power for the current day 15038 Ppm1 Max PV1 power for the current day 15039 Ppm2 Max PV2 power for the current day 15040 Ubmx...
  • Page 32 The power required by the loads in inverter mode is too large. The power of the connected loads is greater than what the Xtender (Pnom, P30) can provide. The RCC-02 shows the power delivered by the device. Warning (016): Fan error detected...
  • Page 33 Studer Innotec SA Quick guide RCC-02/-03 Message Troubleshoot Halted (019): Battery undervoltage The battery under voltage level, set by parameter {1108}, has been exceeded during a time period defined by {1190} or has reached the critical battery under voltage level set by parameter {1488}.
  • Page 34 (parameters) are lost. Halted (036): Parameter file lacking A software problem has been detected. Upgrade your software by installing the latest version available on our website: www.studer- innotec.com/en/downloads. Warning (038): Upgrade of the device See troubleshoot nr 36 software advised...
  • Page 35 The power required in inverter mode is greater than the allowed limit. Check that the power of the loads present at AC-Out do not exceed the device power (P30 and Pnom). The RCC-02 indicates the power delivered at the device output. Warning (060): Time security 1512...
  • Page 36 Studer Innotec SA Quick guide RCC-02/-03 Message Troubleshoot Error (071): Insufficient disk space on The SD card is full, and some files must be deleted. SD card When this message appears, the 30 oldest log files on the SD card are deleted automatically when the day's log file is saved to the SD card at midnight.
  • Page 37 Retrieve the existing data and format the SD card (FAT or FAT32 format). If you use a standard SD card bought in a general store the compatibility with your Studer accessory is not guaranteed. 123 Error (123): SD card not formatted The formatting of the SD card is not recognized.
  • Page 38 Studer Innotec SA Quick guide RCC-02/-03 Message Troubleshoot 132 (132): The VarioTrack is configured for After detection of a 24V battery, this message is 24V batteries sent when an RCC is connected to the system. 133 (133): The VarioTrack is configured for...
  • Page 39 An Xtender calibration zone is missing, and therefore will not be used. In a system with software version 1.6.xx, it is possible to force a modification. Contact your Studer distributor. 177 (177): An Xtender has started up The device has started. This appears when the...
  • Page 40 The configuration file of the Xcom-SMS is too old. configuration file Download the new version of the XcomConfigurator.exe from the Studer website. 190 (190): The Xcom-SMS is busy The Xcom-SMS is working on other data treatment. 191 (191): Parameter not supported The command is not supported.
  • Page 41 The conditions required for the activation of relay AUX1 are not all present, and therefore AUX1 is deactivated. The cause of the deactivation can be seen on the RCC-02/03. 209 (209): AUX2 relay activation The conditions are met for the activation of AUX2 relay.
  • Page 42 216 Warning (216): Scom watchdog Problem with SCOM protocol. See the technical caused the reset of Xcom-232i description of the SCOM protocol, available on Studer website, for more information. 217 Warning (217): CAN problem at Problem with the Xtender announcing itself (old Xtender declaration version of communication bus CAN1).

  • Page 43: Dimensions

    Studer Innotec SA Quick guide RCC-02/-03 DIMENSIONS RCC-02 RCC-03 Quick guide V 6.1.0...
  • Page 44 Studer Innotec SA Rue des Casernes 57 CH -1950 Sion, Switzerland +41 (0) 27 205 60 80 +41 (0) 27 205 60 88 info@studer-innotec.com www.studer-innotec.com...
