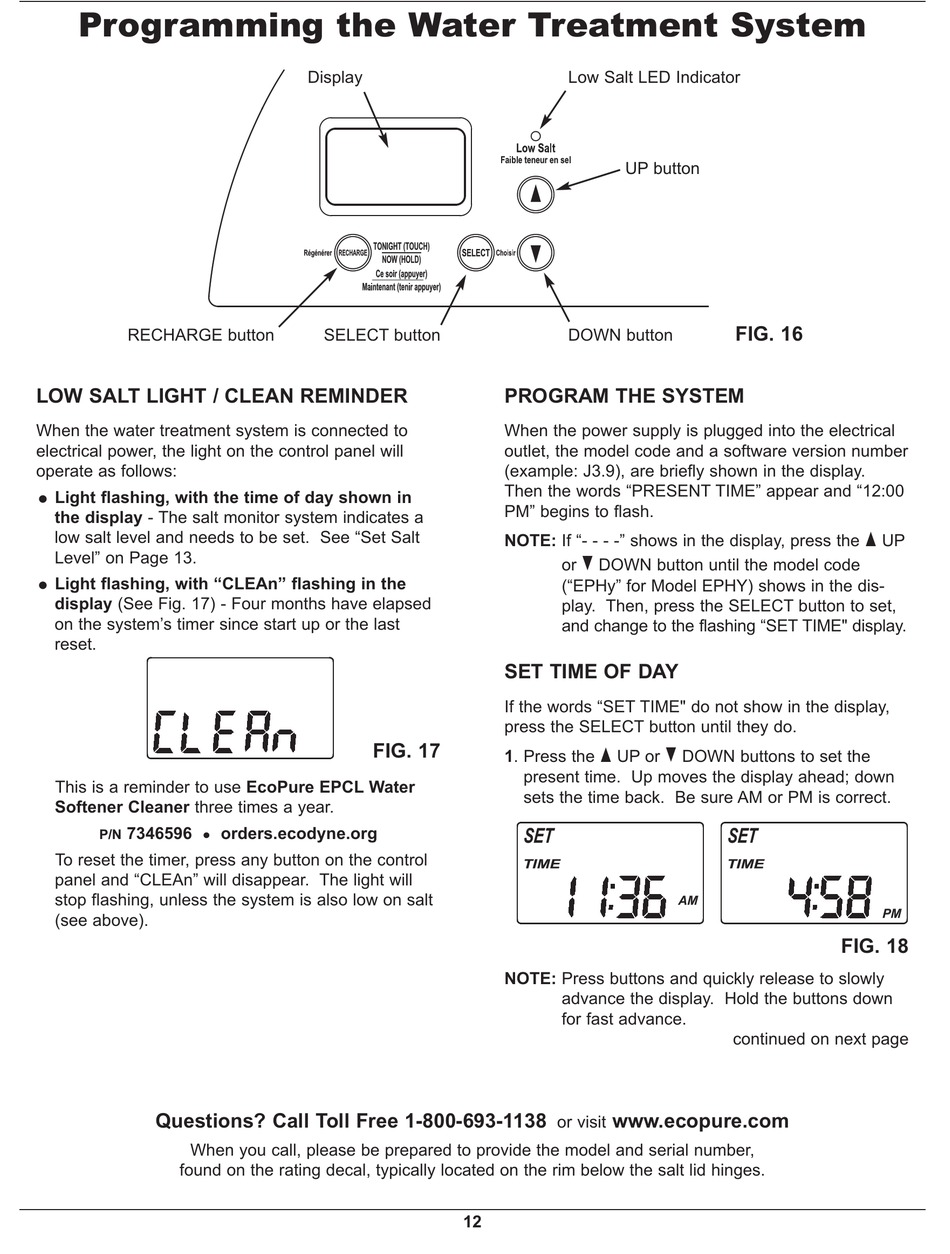

Programming the Water Treatment System

RECHARGE button
LOW SALT LIGHT / CLEAN REMINDER
When the water treatment system is connected to
electrical power, the light on the control panel will
operate as follows:
Light flashing, with the time of day shown in
the display - The salt monitor system indicates a
low salt level and needs to be set. See "Set Salt
Level" on Page 13.
Light flashing, with "CLEAn" flashing in the
display (See Fig. 17) - Four months have elapsed
on the system's timer since start up or the last
reset.
This is a reminder to use EcoPure EPCL Water
Softener Cleaner three times a year.
7346596
P/N ●
To reset the timer, press any button on the control
panel and "CLEAn" will disappear. The light will
stop flashing, unless the system is also low on salt
(see above).
Questions? Call Toll Free 1-800-693-1138
When you call, please be prepared to provide the model and serial number,
found on the rating decal, typically located on the rim below the salt lid hinges.
Display
SELECT button
FIG. 17
orders.ecodyne.org
Low Salt LED Indicator
UP button
DOWN button
PROGRAM THE SYSTEM
When the power supply is plugged into the electrical
outlet, the model code and a software version number
(example: J3.9), are briefly shown in the display.
Then the words "PRESENT TIME" appear and "12:00
PM" begins to flash.
NOTE: If "- - - -" shows in the display, press the
q
or DOWN button until the model code
("EPHy" for Model EPHY) shows in the dis-
play. Then, press the SELECT button to set,
and change to the flashing "SET TIME" display.
SET TIME OF DAY
If the words "SET TIME" do not show in the display,
press the SELECT button until they do.
1. Press the UP or
present time. Up moves the display ahead; down
sets the time back. Be sure AM or PM is correct.
NOTE: Press buttons and quickly release to slowly
advance the display. Hold the buttons down
for fast advance.
www.ecopure.com
or visit
12
FIG. 16
q
DOWN buttons to set the
FIG. 18
continued on next page
UP
