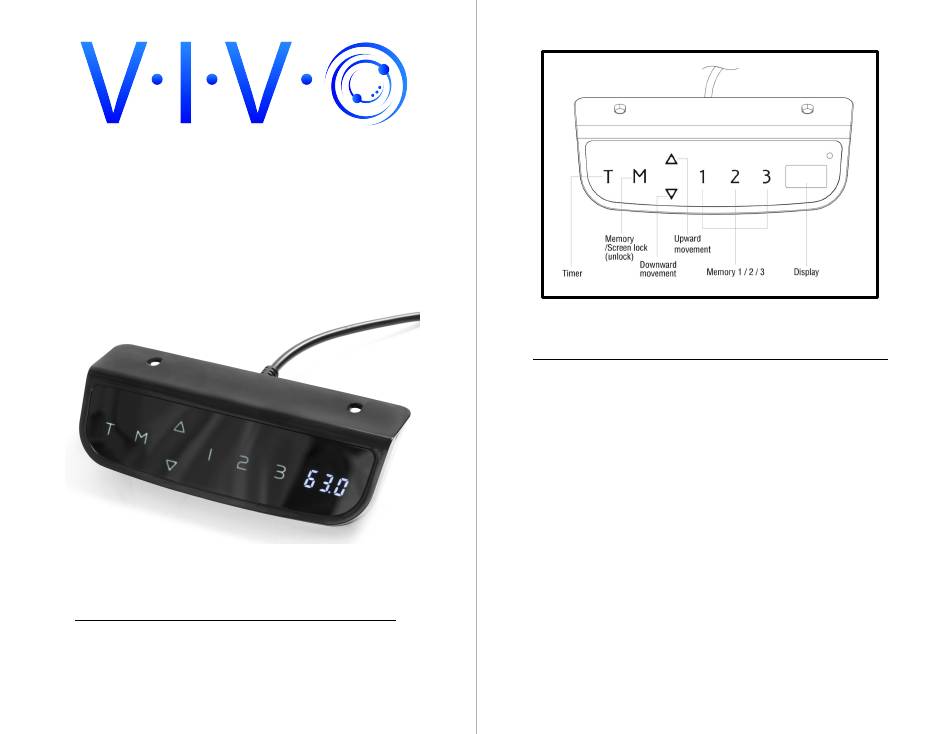

Controller for Electric Height
Adjustable Desk Frame
User Guide
Model: DESK V103E
Controller
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371-5654
-
Operating Instructions
When the system is powered on, you will hear a beep and the existing
desktop height will be displayed on the control panel.
Reset Mode
While the unit is powered on, press the downward arrow until the desk moves into
a fully lowered position. Again, press the downward arrow until "RST" is displayed.
Once the display shows "62.0", release the downward arrow button. The desk will
move upward for approximately 10mm and come to a stop.
Upward and Downward Movement
Touch the upward or downward arrow until desk reaches desired height
Power saving Mode
When no actions are made for over 10 minutes, the system will enter power-
saving mode. Touch any button to enter operation mode.
Memory Mode
To store a certain height in the controller's memory, first touch "M". The letter "S-"
will be displayed. Now touch "1", "2", or "3" within five seconds to store the current
height in memory. Each number can store a different height. Once in memory, you
can select any of the 3 height settings by pressing the corresponding button.
Touching any button (except for "T") will stop the automatic adjustment.
-
.
1
