Vivo DESK-V103E - Controller For Electric Height Desk Frame User Guide

Operating Instructions

When the system is powered on, you will hear a beep and the existing desktop height will be displayed on the control panel.

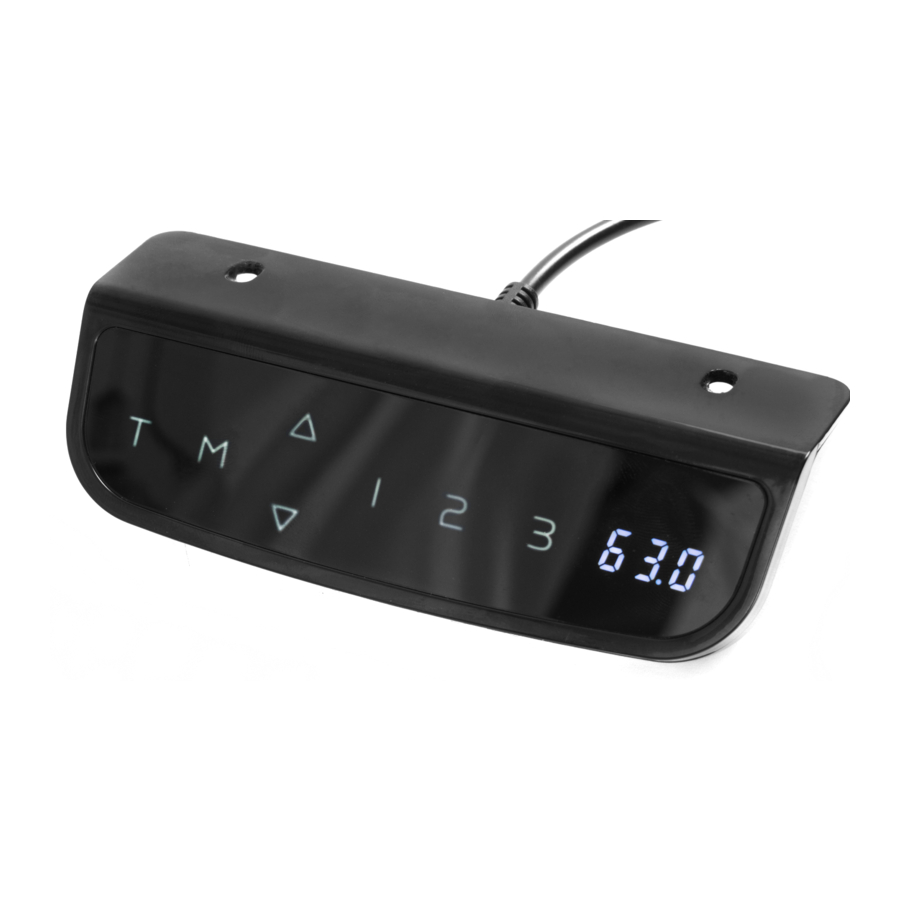

Buttons Overview

Reset Mode
While the unit is powered on, press the downward arrow until the desk moves into a fully lowered position. Again, press the downward arrow until "RST" is displayed.
Once the display shows "62.0", release the downward arrow button. The desk will move upward for approximately 10mm and come to a stop.

Upward and Downward Movement
Touch the upward or downward arrow until desk reaches desired height.

Power saving Mode
When no actions are made for over 10 minutes, the system will enter powersaving mode. Touch any button to enter operation mode.

Memory Mode
To store a certain height in the controller's memory, first touch "M". The letter "S-" will be displayed. Now touch "1", "2", or "3" within five seconds to store the current height in memory. Each number can store a different height. Once in memory, you can select any of the 3 height settings by pressing the corresponding button.
Touching any button (except for "T") will stop the automatic adjustment.

Timer Reminder Mode
To set the reminder timer, press "T". The display will flash "0.5h" representing 30 minutes. Press the "T" repetitively to increase 0.5 hours (30 minutes) at a time. The maximum timer setting is two hours. The timer is set when the digit stops flashing and the light in the top right corner of the controller is on. When the timer has reached the set time, a beep will sound, reminding the user to adjust his/her working position. Once a timer setting has expired, the unit's timer is cancelled. To de-activate the timer, press the "T" five times until the current height is displayed and the light found in the upper right side of the controller is off.

Screensaver Mode
You can prevent accidental operation by pressing and holding the "M" button for 3 seconds, placing the unit into Screensaver Mode. The screensaver is activated when the display shows " - - - ". The Screensaver Mode will also become active should if there is no activity over 90 seconds. To turn off the screensaver, touch and hold the "M" button for 3 seconds.

Switch Display from Centimeter to Inch
The preset measurement shown on the display is cm. If you would like to change cm to inch, please restart the system and press the button "T" for 8 seconds. After the buzzer beeps twice, the measurement is successfully reset. If you would like to switch inch back to cm, please restart the system and press the button "T" for 8 seconds. After the buzzer beeps once, the system is successfully switched to cm measurement again.

Notes

Self-protection function: The unit will enter protective mode should the system operate in excess of two minutes with "HOT" on the controller display. The system will reset and return to normal operation after approximately 18 minutes.
Over-current protection mode: While operating, should the load on the desk exceed rated specifications (1000N), the system will enter into an over-current protection mode. This will protect the system from any damage. When this happens, the desk will move downward approximately 30mm and come to a stop with the current height displayed.
Attention: NEVER remove or turn off the power in order to reset the unit when it is in a protective mode or "HOT" state.
Please reset in case two legs are different in height.

Troubleshooting Guide

Error Code	Description
ER1	Overload in downwards direction has occurred and needs to be reset.
ER2	Over-heating in the controller has occurred and needs to cool.
ER3	Motor cable connection fault.
ER4	Both legs have different heights and need to be reset.
ER5	Motor fault.
