Racelogic VBOX Video HD2 Quick Start Manual page 11

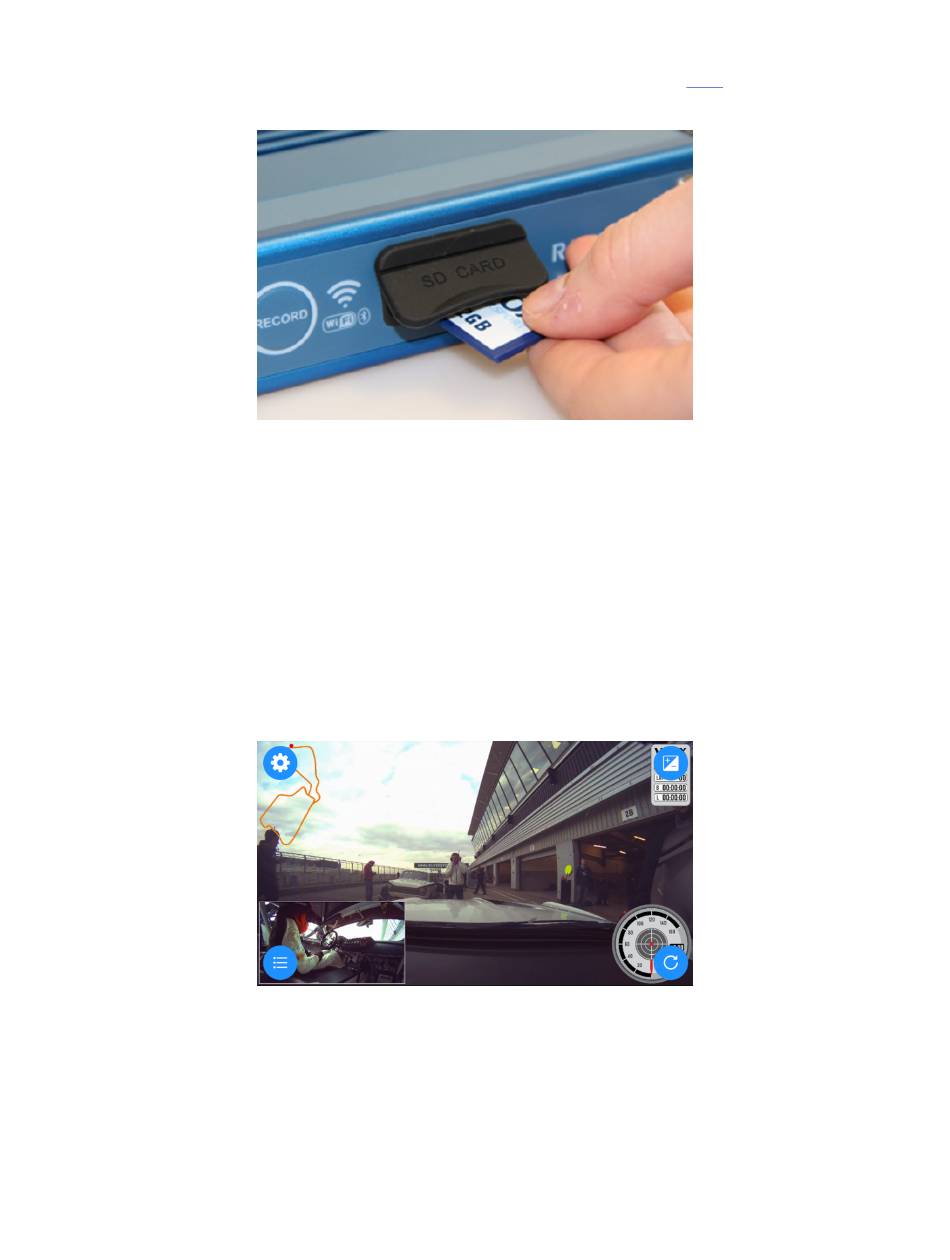

9. Insert the SD card into the SD card slot – the OK LED should show solid Green. If a scene file has been saved to
the card, the scene will be uploaded on to the unit, more information can be found here.
10. Connect your iOS or android device to the HD2 unit via WiFi. The WiFi name (SSID) of the VBOX Video will be
'VVH' followed by the serial number, eg. 'VVH00063'. The password will also be 'VVH' followed by the serial
number.
For customers not on the latest version of Firmware (V 1.2.45 onwards), the SSID of the unit will be 'VBoxVideo'
followed by the serial number and the password is 'racelogic'.
Note: We recommend that customers update to the latest firmware version as the Apps are not fully backwards
compatible.
Open the VBOX Video camera preview app on your phone and fine tune the setup of the two camera positions.
11. Take the car outside and wait for the VBOX Video HD2 to gain satellite lock. The GPS LED should show solid
Green.
11
