Sinfonia Technology CHC-S2245 Quick Manual

CHC-S2245 Quick Manual

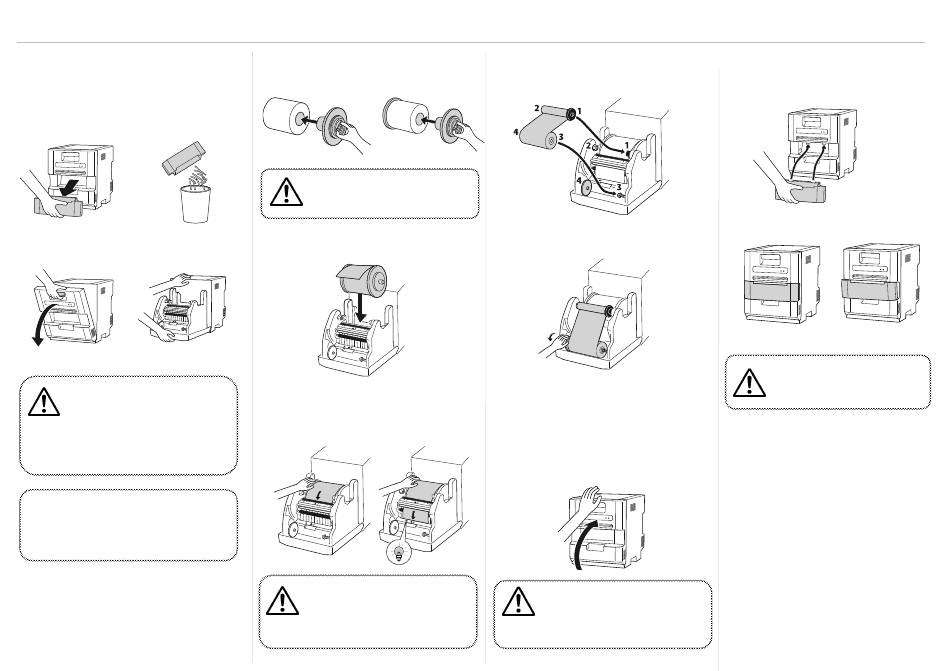

LOADING PAPER

Turn on the power by pressing "|" on the power
switch.
1. In case that trim dusts are stacked in the
dust box, make sure to throw them away.
2. Pull the lever to open the front cover.
CAUTION: Do not release the
hand's hold from the printing unit
until it is opened fully.
If the hand's hold is released while
the printing unit is opened, there is
a possibility that the printer falls
down.
ATTENTION: Do not open the front cover
quickly or with unnecessary force.
Do not press the front cover or place a heavy
object other than paper after opening the front
cover.
3. Install the paper flanges in the paper roll while
holding down the knob on the paper flanges.
CAUTION: The paper is not set
correctly if there is a gap of about
10mm between the paper flanges
and paper.
4. Set the paper roll in the printer.
After setting the paper, remove the seal from the
paper.
5. Insert the edge of paper under the guide roller by
rotating the paper flanges.
Insert the paper until the PEPERSET LED is
illuminated in blue.
CAUTION: The paper is not set
correctly if the PAPERSET LED is
blinking in red.
Please pull out the paper until the
PAPERSET LED turn off.

SETTING INK RIBBON

1. Set the ink ribbon to the printing unit as shown
2. Take the slack the ink ribbon by turning the ink
ribbon supply core.
3. Close the printing unit.
When close the printing unit, press on the center
of the front cover.
In case that both the paper and the ink ribbon
are loaded into the printer and the front cover is
closed, initialization starts and several sheets of
paper are ejected automatically.
CAUTION: Close the printing unit
carefully so as not to catch your
fingers.
Do not close the printing unit quickly.
YTE8-J0709E
4.Insert the claw of the dust box first and
insert the projected section of the printer in
the hole at the bottom of the dust box.
OK ×
CAUTION: The dust box is not set
correctly if there is a gap between
the front cover and the dust box.

TRANSPORTING THE PRINTER

The following cautions are necessary in
transportation of the printer.
Since an incorrect transportation method
causes a printer fault, follow the correct
method.
1. Remove the ink ribbon and paper
from the printer before transporting
the printer.
If the ink ribbon or paper cannot be
removed due to a fault, consult with
the distributor.
2. Use a genuine box.
If the box used at the purchase
cannot be used, consult with your
distributor and purchase a new box.
