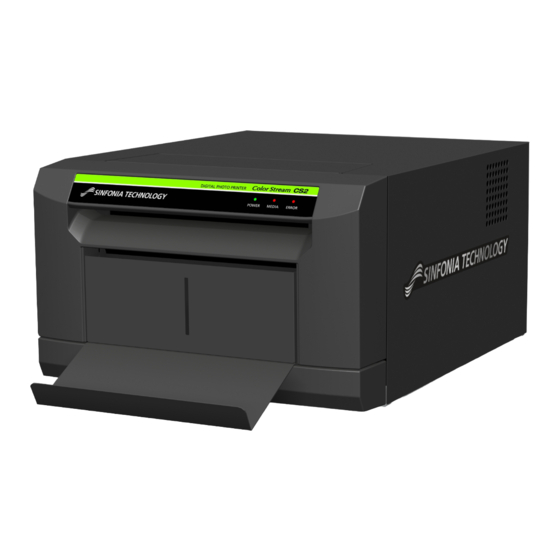

Sinfonia Technology CHC-S6145 Instruction Manual

Digital photo printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital Photo Printer
CHC-S6145
Printer Driver Ver.1
Instruction Manual
Contents
Using your printer with Windows computers---------------------------- 1
System requirements --------------------------------------------------------- 1
Notes------------------------------------------------------------------------------ 2
Installing the printer driver for Windows XP ----------------------------- 3
Installing the printer driver for Windows 7 ----------------------------- 16
Printing from application software --------------------------------------- 27
To cancel printing ------------------------------------------------------------ 32
Color adjustment------------------------------------------------------------- 33
Split Print----------------------------------------------------------------------- 37
Troubleshooting -------------------------------------------------------------- 38
YTE8-J0534E Rev.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHC-S6145 and is the answer not in the manual?

Questions and answers

Related Manuals for Sinfonia Technology CHC-S6145

Summary of Contents for Sinfonia Technology CHC-S6145

  • Page 1: Table Of Contents

    Digital Photo Printer CHC-S6145 Printer Driver Ver.1 Instruction Manual Contents Using your printer with Windows computers---------------------------- 1 System requirements --------------------------------------------------------- 1 Notes------------------------------------------------------------------------------ 2 Installing the printer driver for Windows XP ----------------------------- 3 Uninstalling the printer driver for Windows XP ------------------------- 6...
  • Page 2 PROVIDED, AND PROMPTLY RETURN THE WHOLE PRODUCT TO YOUR DEALER. 1. LICENSE SINFONIA TECHNOLOGY CO., LTD. ("SINFONIA") grants you the non-exclusive right to use one copy of the SOFTWARE under the terms and conditions of this Agreement. 2. RESTRICTIONS ON USE You may use the SOFTWARE on a single computer.

  • Page 3: Using Your Printer With Windows Computers

    Using your printer with Windows computers The supplied CHC-S6145 printer driver enables you to print an image stored on your computer with the CHC-S6145 digital photo printer. To print an image from the computer, you need appropriate application software that can open the image and print with the printer.

  • Page 4: Notes

    (2) Do not use the printer together with other USB devices except a USB keyboard or mouse. (3) Do not connect two or more CHC-S6145 digital photo printers at the same time. (4) Do not unplug the USB cable during data transferring or printing. To do so may cause the printer to not operate properly.

  • Page 5: Installing The Printer Driver For Windows Xp

    Installing the printer driver for Windows XP NOTES (1) Make sure that the printer is not connected to the computer. (2) The explanations in this section are based on Windows XP. On another version of Windows, the actual screen contents and procedures may vary from those shown.
  • Page 6 7. Click "Next". 8. Please wait while the wizard searches... 9. Click "Continue Anyway". 10. Copying Files…...
  • Page 7 11. Click "Finish". 12. The "SINFONIA CHC-S6145" printer icon appears in the "Printers and Faxes" window.

  • Page 8: Uninstalling The Printer Driver For Windows Xp

    1. Unplug the USB cable from your computer. 2. Select "Printers and Faxes" from the Windows Start menu. 3. Right-click on the "SINFONIA CHC-S6145" printer icon, and select "Delete" from the pop-up menu. 4. Click "Yes" for "Are you sure you want to delete the printer 'SINFONIA CHC-S6145'?"...
  • Page 9 7. Select the "Drivers" tab, select "SINFONIA CHC-S6145", and then click "Remove". 8. Click "Yes" for "Are you sure you want to delete SINFONIA CHC-S6145?" in the dialog box. 9. Open the Run window from Windows Start menu, and then write "regedit" and click "OK".
  • Page 10 10. Delete the folder of "HKEY_LOCAL_MACHINE\SYS TEM\CurrentControlSet\Control\ Print\Monitors\S6145 Language Monitor". 11. Click "Yes". 12. Reboot your computer.

  • Page 11: Installing The Printer Driver For Windows Vista

    Installing the printer driver for Windows Vista NOTES (1) The explanations in this section are based on Windows Vista Business. On another edition of Windows Vista, the actual screen contents and procedures may vary from those shown. （2） You need to uninstall before installing the latest printer driver, if a previous version printer driver is installed on your system.
  • Page 12 6. Click "Locate and install driver software (recommended)". 7. Click "Next". 8. Searching disc for software… 9. Click "Install this driver software anyway".
  • Page 13 10. Installing driver software… 11. Click "Close". 12. The "SINFONIA CHC-S6145" printer icon appears in the "Printers" window.

  • Page 14: Uninstalling The Printer Driver For Windows Vista

    1. Unplug the USB cable from your computer. 2. Open the Control Panel window from Windows Start menu, and then click "Hardware and Sound". 3. Click "Remove a printer" from the "Printers". 4. Select "SINFONIA CHC-S6145" icon, and then click "Delete this printer". 5. Click "Yes".
  • Page 15 Windows needs your permission to continue. Click "Continue" to allow the driver to install. 7. Select the "Drivers" tab, select "SINFONIA CHC-S6145", and then click "Remove..." 8. Select "Remove driver and driver package.", and then click "OK".
  • Page 16 9. Click "Yes". 10. Click "Delete". 11. Click "OK".
  • Page 17 12. Open the Start Search from Windows Start menu, and then write "regedit" and press the “Enter” key. 13. Click “Continue”. 14. Delete the folder of "HKEY_LOCAL_MACHINE\SYST EM\CurrentControlSet\Control\Pri nt\Monitors\S6145 Language Monitor". 15. Click "Yes". 16. Reboot your computer.

  • Page 18: Installing The Printer Driver For Windows 7

    Installing the printer driver for Windows 7 NOTES (1) The explanations in this section are based on Windows 7 Home Premium. On another edition of Windows 7, the actual screen contents and procedures may vary from those shown. （2） You need to uninstall before installing the latest printer driver, if a previous version printer driver is installed on your system.
  • Page 19 5. Click "Skip obtaining driver software from Windows Update". 6. Click "Yes". 7. Wait until the “No driver found” appears on the right of “SINFONIACHC-S6145”, and then click “Close”. 8. Click “Devices and Printers” from Windows Start menu.
  • Page 20 9. Right-click on “CHC-S6145” icon, and then click “Properties”. 10. Select the “Hardware” tab, select “SINFONIACHC-S6145”, and then click “Properties”. 11. Click "Change settings".
  • Page 21 12. Select the “Driver” tab, and then click “Update Driver…”. 13. Click “Browse my computer for driver software”. 14. Insert the Printer Driver CD-ROM into the CD-ROM drive. Click “Browse…” to select the “S6145” subfolder under the folder for Windows 7. For Windows 7 32bit: “F:\Driver\WinXP_Vista_7_32bit\Engli sh\S6145”...
  • Page 22 15. Installing driver software… 16. Click “Install this driver software anyway”. 17. Click “Close”. 18. The "SINFONIA CHC-S6145" printer icon appears in the "Devices and Printers" window. Eject the Printer Driver CD-ROM from the CD-ROM drive.

  • Page 23: Uninstalling The Printer Driver For Windows 7

    Uninstalling the printer driver for Windows 7 To uninstall the printer driver, follow the procedures below. 1. Unplug the USB cable from your computer. 2. Click “Devices and Printers” from Windows Start menu. 3. Select “SINFONIA CHC-S6145” icon, and then Click “Remove device”. 4. Click “Yes”.
  • Page 24 5. Select an icon from “Printers and Faxes”, and then click “Print server properties”. 6. Select the “Drivers” tab, and then click “Change Driver Settings”. 7. Select “SINFONIA CHC-S6145”, and then click “Remove…”.
  • Page 25 8. Select “Remove driver and driver package.”, and then click “OK”. 9. Click “Yes”. 10. Click “Delete”. 11. Click “OK”.
  • Page 26 12. Open the Start Search from Windows Start menu, and then write “regedit” and press the “Enter” key. Note: User Account Control message may appear stating that the Windows needs your permission to continue. Click "Yes" to allow the driver to uninstall.

  • Page 27: Printing From Application Software

    Printing from application software You can use the "Print" command of application software to print an image from your computer with CHC-S6145 digital photo printer. NOTES (1) Before printing, make sure that the printer is properly connected to your computer with a proper USB cable.
  • Page 28 The "Page Setup" dialog box appears. 3. Page Setup. Your application software may show a different appearance. 3-1. Click "Printer..." to show the "Page Setup" dialog box. 3-2. Select "SINFONIA CHC-S6145" 3-3. Click "Properties..." to show the "SINFONIA CHC-S6145 Properties" dialog box.
  • Page 29 3-10. Lamination Choose a lamination of prints from “Glossy” or “Matte” or “OP Skip” 3-11. Paper cut mode Set the “Paper cut mode” function to your CHC-S6145 printer. Check on: “Paper cut mode: on”. Check off: “Paper cut mode: off”.
  • Page 30 3-12. Remaining ink ribbon This item shows approximate number of available prints with the loaded ink ribbon. 3-13. Total print count This item shows total print counts stored in the internal memory of the printer. NOTES The actual number of prints may vary from the figure displayed depending on how the successive printing is performed.
  • Page 31 3-15. Click "OK" to return to the "Page Setup" dialog box. 3-16. Click "OK" to close the "Page Setup" dialog box. 4. Click "Print" from the "file" menu of the application software. The "Print" dialog box appears. 5. Click "Print" to start printing. Click "Cancel"...

  • Page 32: To Cancel Printing

    1. Select "Settings" from the Windows Start menu, and then click "Printers and Faxes". 2. Double-click on the "SINFONIA CHC-S6145" icon. The "SINFONIA CHC-S6145" window is displayed. The documents in the print queue are listed in the window. 3. Click the document you want to cancel.

  • Page 33: Color Adjustment

    Color adjustment Color adjustment window You can select various kinds of printing options for color adjustment in the "Color adjustment" window. Sample image The upper image will preview the effects of color adjustments. The lower image represents the original sample image. NOTES The preview image shows the approximate effects of color adjustment and may not represent the actual printing result.
  • Page 34 Output ICC Profile: The output ICC profile name is displayed to be used for the color matching process. Save settings button Clicking this button displays the open dialog window to save the settings of color adjustment to an external file. Load settings button Clicking this button displays the open dialog window to load the settings of color adjustment from an external file.

  • Page 35: Color Adjustment

    Magenta – Green editbox / slider bar This option adjusts the color balance between Magenta and Green elements. The higher you set the value, the more the Green element increase while the Magenta element decrease – and vice versa. Adjustable range: -20 ~ 20 (Default: 0) Yellow –...
  • Page 36 Color Matching window You can choose ICC profiles and a Rendering Intent. Input Profile: Current input ICC profile name in use is displayed. Output Profile: Current output ICC profile name in use is displayed. Set Profile... button Clicking this button allows you to load an input ICC profile or an output ICC profile respectively.

  • Page 37: Split Print

    4x6 inch & 4x6 inch 1240 x 1844 12 x 1844 1240 x 1844 2. The proper settings in the "SINFONIA CHC-S6145 Properties" dialog box are as follows. Print size: 6x8inch/15x20cm(Split-2UP) Split print: 4 x 6 & 4 x 6 [inch]...

  • Page 38: Troubleshooting

    Troubleshooting When the printer driver displays a Printer Status on the Printer Folder, refer to the following table below for its cause and correction. Printer Folder Printer Folder Possible Causes Possible Solutions A hardware malfunction may Consult the distributor of the printer have occurred in the printer.
