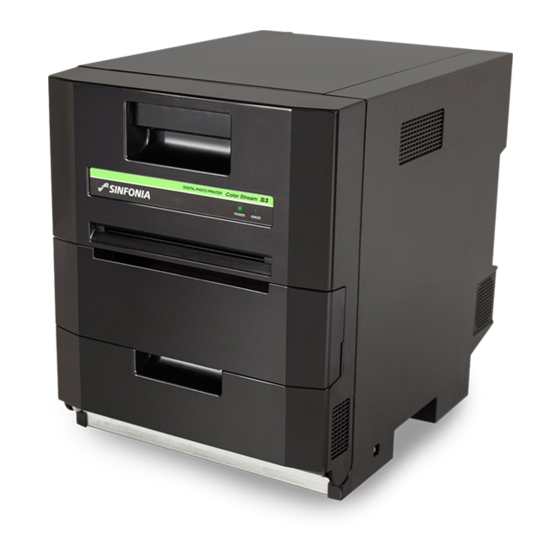

Sinfonia Technology Color Stream S3 CHC-S2245-5 Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
English
Digital Photo Printer
CHC-S2245-5
Operation Manual
http://www.sinfo-t.jp

Advertisement

loading
Need help?

Need help?

Do you have a question about the Color Stream S3 CHC-S2245-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sinfonia Technology Color Stream S3 CHC-S2245-5

Summary of Contents for Sinfonia Technology Color Stream S3 CHC-S2245-5

  • Page 1 English Digital Photo Printer CHC-S2245-5 Operation Manual http://www.sinfo-t.jp...
  • Page 2 1. All rights reserved. No part of this operation manual covered by the copyright herein maybe reproduced or copied in any form or by any means, including translation, without the written permission of SINFONIA TECHNOLOGY Co., Ltd. 2. The specifications in this operation manual are subject to change without prior notice.
  • Page 3 CONTENTS PREFACE Chapter 1. Important Safety Instruction ・・・・・・・・・・・・・・・・・ Environments ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Handling Instruction ・・・・・・・・・・・・・・・・・・・・・・・・・・ Handling Instruction for Consumable and Printed Output ・・・・・・ Chapter 2. Installing and Set Up ・・・・・・・・・・・・・・・・・・・・・ Unpacking and Checking the Accessories ・・・・・・・・・・・・・・・・ Parts Name and Function ・・・・・・・・・・・・・・・・・・・・・・・・ Printer Status Lamps Name and Printer Status ・・・・・・・・・・・・...
  • Page 4 Chapter 1. Important Safety Instruction Environments This manual provides detailed instructions for To use the printer safety, please pay attention the safety use of the printer. to the followings: Read this manual before operating the printer Caution: Do not let children to to ensure to have proper use.

  • Page 5: Handling Instruction

    Chapter 1. Important Safety Instruction Handling Instruction In handling the printer, please pay attention to the followings; Warning: Do not attempt to Warning: Lift the printer from its service the printer beyond the box and put it onto a flat table or instruction specified in this desk.
  • Page 6 ・Do not touch the paper surface before printing to avoid the fingerprints. Attention: Ink Ribbon Handling ・ Use the ink ribbon specified by SINFONIA TECHNOLOGY. ・ Store the ink ribbon in cool place to avoid the direct sunlight. (Temperature less than 30C, Humidity...
  • Page 7 Chapter 2. Installing and Set Up This chapter explains the unpacking and set up of the printer. Before proceeding to this chapter, please make sure to read Chapter 1. Important Safety Instruction. Unpacking and Checking the Accessories 1.Open the box and remove the box containing the accessories and protection materials. Attention: Keep the packaging materials.
  • Page 8 Chapter 2. Installing and Set Up Parts Name and Function ① ② ③ ⑤ ④ ⑥ ⑦ Front View Rear View ⑧ (Internal View) Name Function № Open Lever When open the Front Cover, hold this lever. ① Printer Status Lamps Printer status display lamps are located on the panel.
  • Page 9 Chapter 2. Installing and Set Up Printer Status Lamps Name and Printer Status ●: ○: Blink (Slow) Blink (Flashing) LED Display Group Status POWER ERROR Paper Set ○ ○ ○ The power of printer is off. － The printer is initializing after turn on the power, or the ○...
  • Page 10 Chapter 2. Installing and Set Up Connecting Power Cable Insert the power cable attached to the Warning: In case of not using the printer into the power connector located on printer for a long time, remove the rear of the printer. the power cable for safety.

  • Page 11: Loading Paper

    Chapter 2. Installing and Set Up Loading Paper 4. Set the paper in the printer. Turn on the power of the printer by After setting the paper, remove the seal pressing "|" on the power switch. from the paper. 1. In case that trim dusts are stacked in the dust box, make sure to throw them away.

  • Page 12: Transporting The Printer

    Chapter 2. Installing and Set Up Setting Ink Ribbon 4.Insert the claw of the dust box first and 1. Set the ink ribbon to the as shown Front Cover insert the projected section of the printer in the hole at the bottom of the dust box. 2.
  • Page 13 Chapter 3. Routine Maintenance Cleaning of Thermal Head and each Roller By using thermal transfer technology, daily maintenance is not really necessary if the printer is being use properly. However, in order to keep the best print quality, it is recommended to do the cleaning of Thermal Head, Peeling Roller, Platen, Main Pinch Roller and Cleaning Roller once in a month.
  • Page 14 Chapter 3. Routine Maintenance Using gauze dipped with isopropyl alcohol or ethyl alcohol, clean the rubber section of the Cleaning roller. Attention: Printing should be performed after the alcohol dried up completely (approx. 5 minutes) Cleaning of Outer Cover Wipe the printer outer cabinet with a soft cloth. If the stains are not removed, wet the cloth and apply weakened neutral Detergent to it.

  • Page 15: Failure Symptoms

    Chapter 4. Error Handling Printer Status lamps are displayed in red When the error happens, the details of the error can be confirmed with the printer status lamps. ●: ON ○: OFF *: Blink (Slow) x: Blink (Flashing) LED Display Corrective Action Status Paper...
  • Page 16 Chapter 4. Error Handling Paper Jam Power Supply Interrupted during Printing 1. Open the Front Cover. In case, power supply interrupted during the printing, Thermal Head will be kept pushing to Platen. Leaving this situation for a long time, 2. Cut off the folded section or printed section shape of Platen can be warped.
  • Page 17 Chapter 5. In order to more comfortably use For longer Printer usage Caution: Printing continuous pattern of high density image in limited part may cause uneven density print. Recommend not to print those images continuously.
  • Page 18 Chapter 5. In order to more comfortably use For the Customers in the U.S.A. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 19 Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: http://www.sinfo-t.jp/eng/printers/red The manufacturer of this product is Sinfonia Technology Co., Ltd. 1-1-30, Shiba-daimoncho, Minato-ku, Tokyo, Japan. If you want to dispose this product, do not mix with general household waste.
  • Page 20 Contact your dealers or service center for the details about after-sales service. YTE8-J0695E Prepared date : December 21, 2017 The manufacturer of this product is Revision date : - SINFONIA TECHNOLOGY CO ., LTD. Revision Number : First edition 1-1-30, Shiba-daimoncho, Minato-ku, Tokyo, Japan. Ⓒ 2017...
