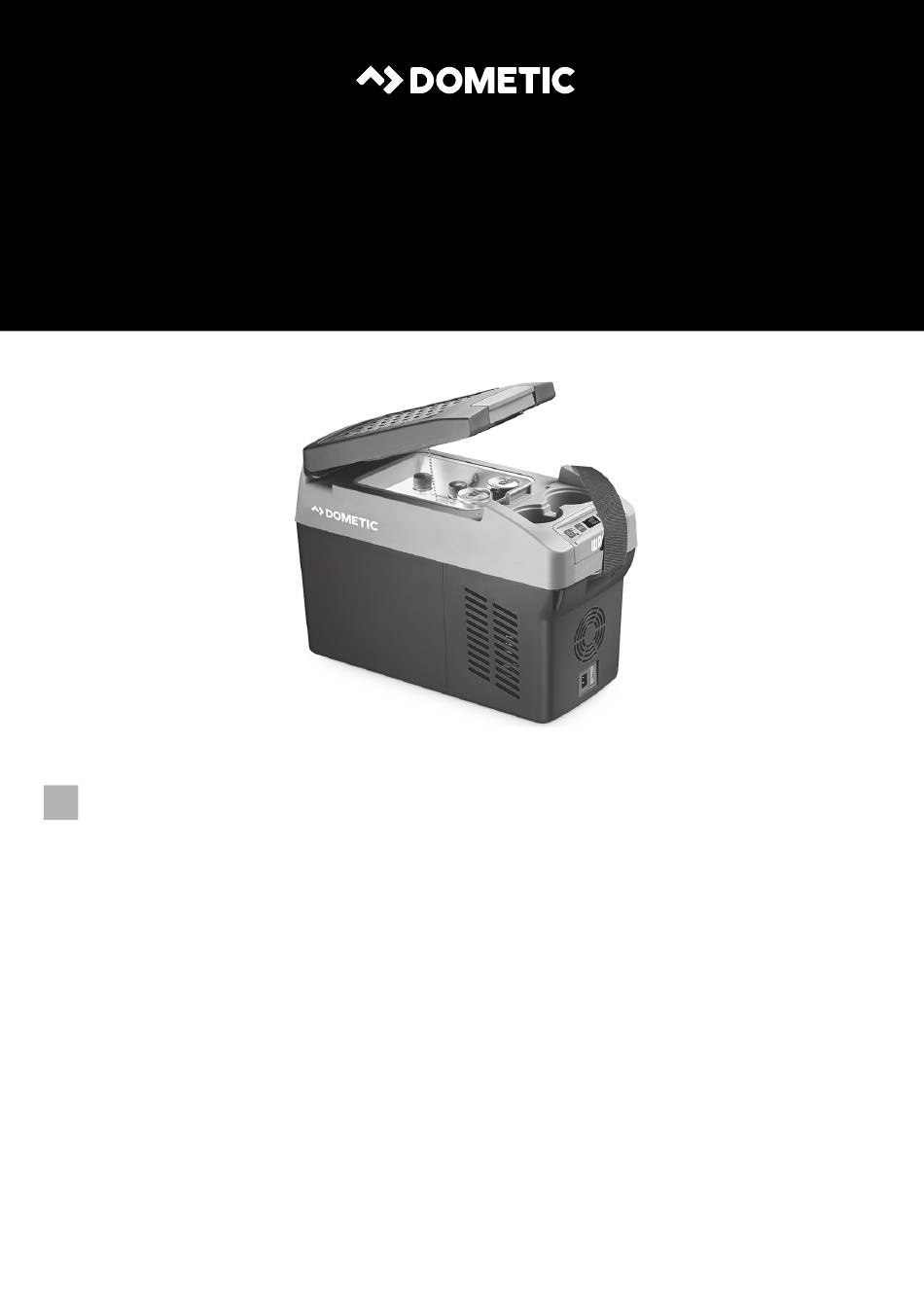

- Page 1 PORTABLE REFRIGERATION CDF SERIES CDF11 Compressor Cooler Operating manual...
-
Page 3: Table Of Contents
CoolFreeze CDF11 Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it. -
Page 4: Explanation Of Symbols
Explanation of symbols CoolFreeze CDF11 Explanation of symbols WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. -
Page 5: Safety Instructions
CoolFreeze CDF11 Safety instructions Safety instructions General safety WARNING! • Do not operate the cooling device if it is visibly damaged. • If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards. - Page 6 Safety instructions CoolFreeze CDF11 • Never pull the plug out of the socket by the cable. • Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device. • Disconnect the cooling device or switch it off when you turn off the engine.
-
Page 7: Scope Of Delivery
• Connection cable for 12/24 Vg connection • Carry strap Intended use The cooler CDF11 is suitable for cooling and freezing foodstuffs. The cooler is designed to be operated from: • a DC on-board power supply of a vehicle, boat or caravan •... -
Page 8: Technical Description

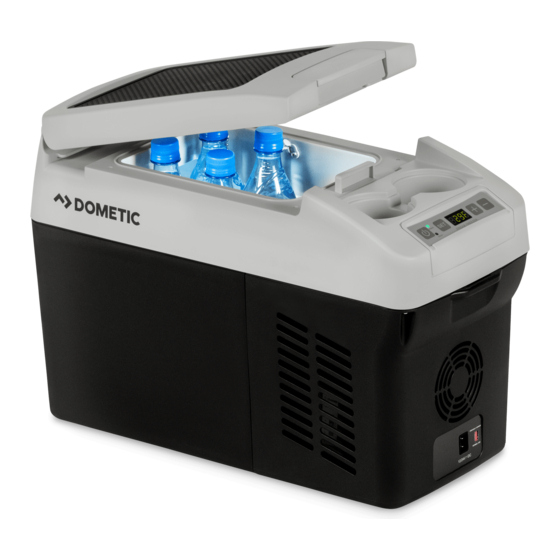

Technical description CoolFreeze CDF11 Technical description The cooler can chill products, keep them cool as well as freeze them. A maintenance-free refrigerant circuit with compressor provides the cooling. The cooler is suitable for mobile use. When used in vehicles the cooler can be secured with the seat belt. - Page 9 CoolFreeze CDF11 Technical description Item Description Control panel Cup holder Fixing position for seat belt Interior LED light Cooling compartment Freezer compartment Lock Skid proof pad Handles Carry strap Connection socket Emergency switch...
- Page 10 Technical description CoolFreeze CDF11 Control panel POWER FRIDGE FREEZER ERROR Item Description Explanation On/Off button Switches the cooler on or off when the button is pressed for between one and two seconds POWER Status indication LED lights up green Compressor is on; preset temperature isn’t reached...
-
Page 11: Operation
CoolFreeze CDF11 Operation Operation The device is equipped with an interior LED light which remains on whenever power is connected. The power consumption of this LED light is extremely low and insignificant compared to the overall power consumption of the device. - Page 12 Operation CoolFreeze CDF11 Connecting the cooler NOTICE! Danger of damage! • Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device. • For protection of the device the DC cable supplied includes a fuse inside the plug.
- Page 13 CoolFreeze CDF11 Operation In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and “MED” (see the following table). Battery monitor mode HIGH 10.1 V 11.4 V 11.8 V Switch-off voltage at 12 V 11.1 V 12.2 V 12.6 V...
- Page 14 Operation CoolFreeze CDF11 NOTICE! Danger from excessively low temperature! Ensure that the only those objects are placed in the cooler that are intended to be cooled at the selected temperature. NOTE During normal operation the emergency switch (fig. 1 12, page 8) has to be set to the “Normal”...
- Page 15 CoolFreeze CDF11 Operation 6.10 Using the emergency switch The emergency switch (fig. 1 12, page 8) is located below the control panel . For normal operation the switch is in the “NORMAL USE” position. ➤ If an electronic control failure occurs, slide the switch to “EMERGENCY OVERRIDE”...
-
Page 16: Cleaning And Maintenance
Cleaning and maintenance CoolFreeze CDF11 6.13 Replacing the DC plug fuse ➤ Pull the adapter sleeve (4) off of the plug. ➤ Unscrew the screw (5) out of the upper half of the housing (6). ➤ Carefully raise the upper half of the housing from the lower (1) half. -
Page 17: Troubleshooting
CoolFreeze CDF11 Troubleshooting Troubleshooting Fault Possible cause Suggested remedy Device does not function, No voltage was In most vehicles the ignition must be turned “POWER” LED does not detected in the on before power will be supplied to the DC glow. -
Page 18: Guarantee
Guarantee CoolFreeze CDF11 Guarantee The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer. For repair and guarantee processing, please include the following documents when you send in the device: •... -
Page 19: Technical Data
CoolFreeze CDF11 Technical data Technical data CDF11 Ref. no.: 9105330684 Connection voltage: 12/24 Vg Cooling capacity: +10 °C to –18 °C Power consumption: max. 30 W Storage capacity: 10.5 litres Climate class: Ambient temperature: 16 °C to 43 °C Refrigerant quantity:... - Page 20 Dometic (Pty) Ltd. Dometic Branch Office Belgium MEXICO Regional Office Zincstraat 3 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa B-1500 Halle Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park ...
