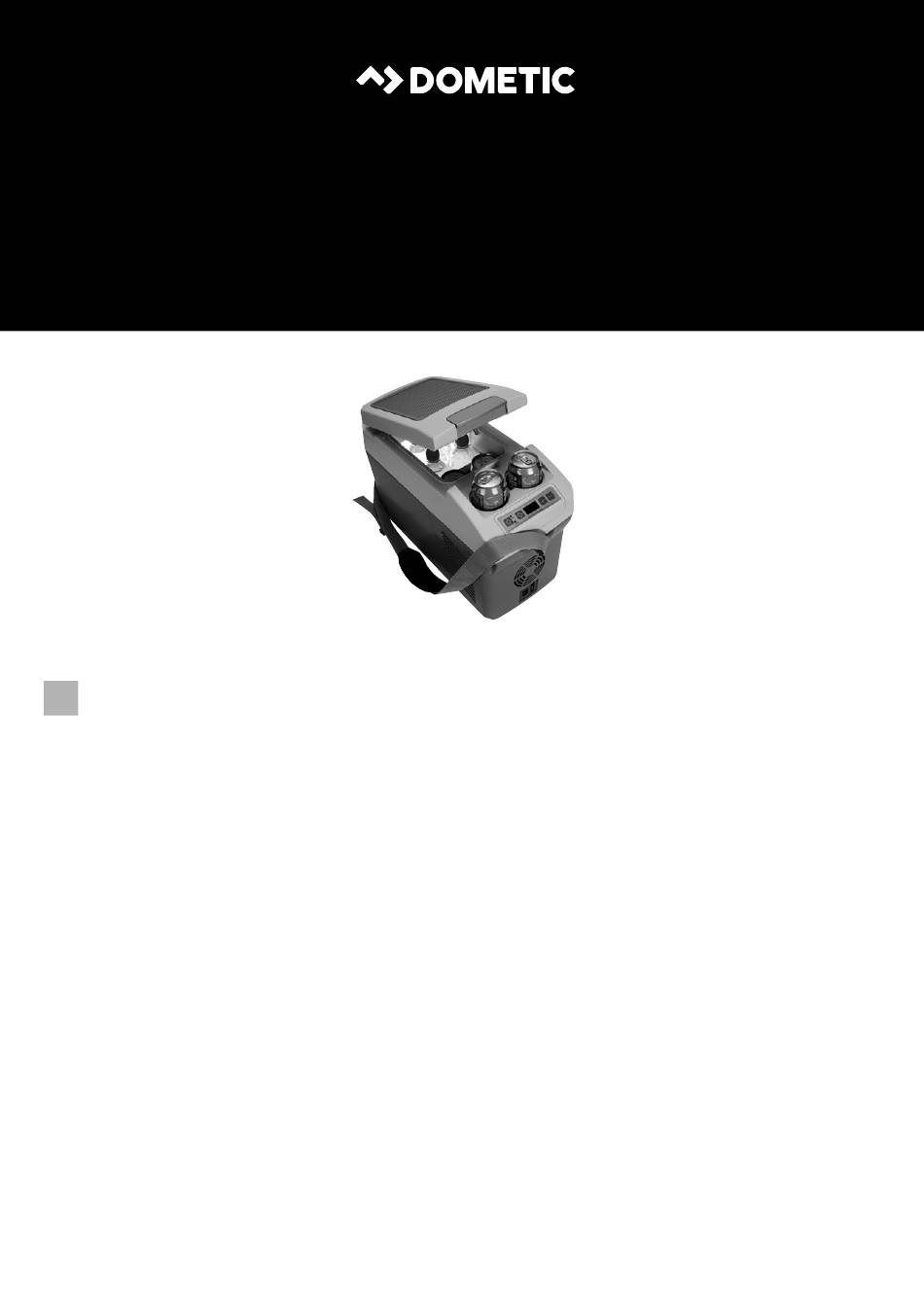

  • Page 1 COOLING BOXES BORDBAR CDF11 Compressor bordbar Operating manual...

  • Page 3: Table Of Contents

    BordBar CDF11 Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

  • Page 4: Explanation Of Symbols

    Explanation of symbols BordBar CDF11 Explanation of symbols WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product.

  • Page 5: Safety Instructions

    BordBar CDF11 Safety instructions Safety instructions General safety WARNING! • Do not operate the device if it is visibly damaged. • If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
  • Page 6 Safety instructions BordBar CDF11 • Only connect the device as follows: – With the DC cable to a DC plug socket in the vehicle (e. g. cigarette lighter) – Or with the 230 V connection cable to the 230 V AC mains supply •...

  • Page 7: Intended Use

    • Protect the device and the cable against heat and moisture. Intended use The cooler CDF11 (ref. no. 9105303076) is suitable for cooling and freezing foodstuffs. The device has been designed for use with a 12/24 Vg on-board power supply socket of a car (cigarette lighter) or caravan.

  • Page 8: Technical Description

    Technical description BordBar CDF11 Technical description The cooler can chill products, keep them cool as well as freeze them. A maintenance-free refrigerant circuit with compressor provides the cooling. The cooler is suitable for mobile use. When used in vehicles the cooler can be secured with the seat belt.
  • Page 9 BordBar CDF11 Technical description Item Description Control panel Cup holder Fixing position for seat belt Interior LED light Cooling compartment Freezer compartment Lock Skid proof pad Handles Carry strap Connection socket Emergency switch...
  • Page 10 Technical description BordBar CDF11 Control panel POWER FRIDGE FREEZER ERROR Item Description Explanation On/Off button Switches the cooler on or off when the button is pressed for between one and two seconds POWER Status indication LED lights up green Compressor is on; preset temperature isn’t reached...

  • Page 11: Operation

    BordBar CDF11 Operation Operation The device is equipped with an interior LED light which remains on whenever power is connected. The power consumption of this LED light is extremely low and insignificant compared to the overall power consumption of the device.
  • Page 12 Operation BordBar CDF11 Securing the cooler in the vehicle ➤ Open the lid of the cooler. ➤ Place the seat belt into the fixing position (fig. 1 3, page 8) of the cooler. ➤ Close the lid. ➤ Fasten the seat belt and tighten it.
  • Page 13 BordBar CDF11 Operation ➤ Press the “ON/OFF” button for three seconds. ✓ The “POWER” LED (fig. 2 2, page 10) lights up green. When the cooler reaches the preset temperature, the LED lights up orange. ✓ The display (fig. 2 5, page 10) switches on and shows the current cooling temperature.
  • Page 14 Operation BordBar CDF11 Selecting the temperature units You can switch the temperature display between Celsius and Fahrenheit. This is how to do it: ➤ Switch on the cooler. ➤ Press the “SET” button twice. ➤ Use the “+” and “–” buttons to select Celsius or Fahrenheit.
  • Page 15 BordBar CDF11 Operation This is how to select the battery monitor mode: ➤ Switch on the cooler. ➤ Press the “SET” button three times. ➤ Use the “+” and “–” buttons to select the battery monitor mode. ✓ The selected mode then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.
  • Page 16 Operation BordBar CDF11 6.10 Defrosting the cooler Humidity can form frost in the interior of the cooling device or on the vaporiser. This reduces the cooling capacity. Defrost the device in good time to avoid this. NOTICE! Danger of damaging the device! Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

  • Page 17: Cleaning And Maintenance

    BordBar CDF11 Cleaning and maintenance Cleaning and maintenance WARNING! Always disconnect the device from the power supply before you clean and service it. NOTICE! Risk of damage • Never clean the cooler under running water or in dish water. • Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

  • Page 18: Troubleshooting

    Troubleshooting BordBar CDF11 Troubleshooting Fault Possible cause Suggested remedy Device does not function, There is no voltage The ignition must be switched on in “POWER” LED does not present in the most vehicles to apply current to the glow. 12/24 V socket cigarette lighter.

  • Page 19: Disposal

    BordBar CDF11 Disposal Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
  • Page 20 Dometic (Pty) Ltd. Dometic Branch Office Belgium MEXICO Regional Office Zincstraat 3 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa B-1500 Halle Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park ...
