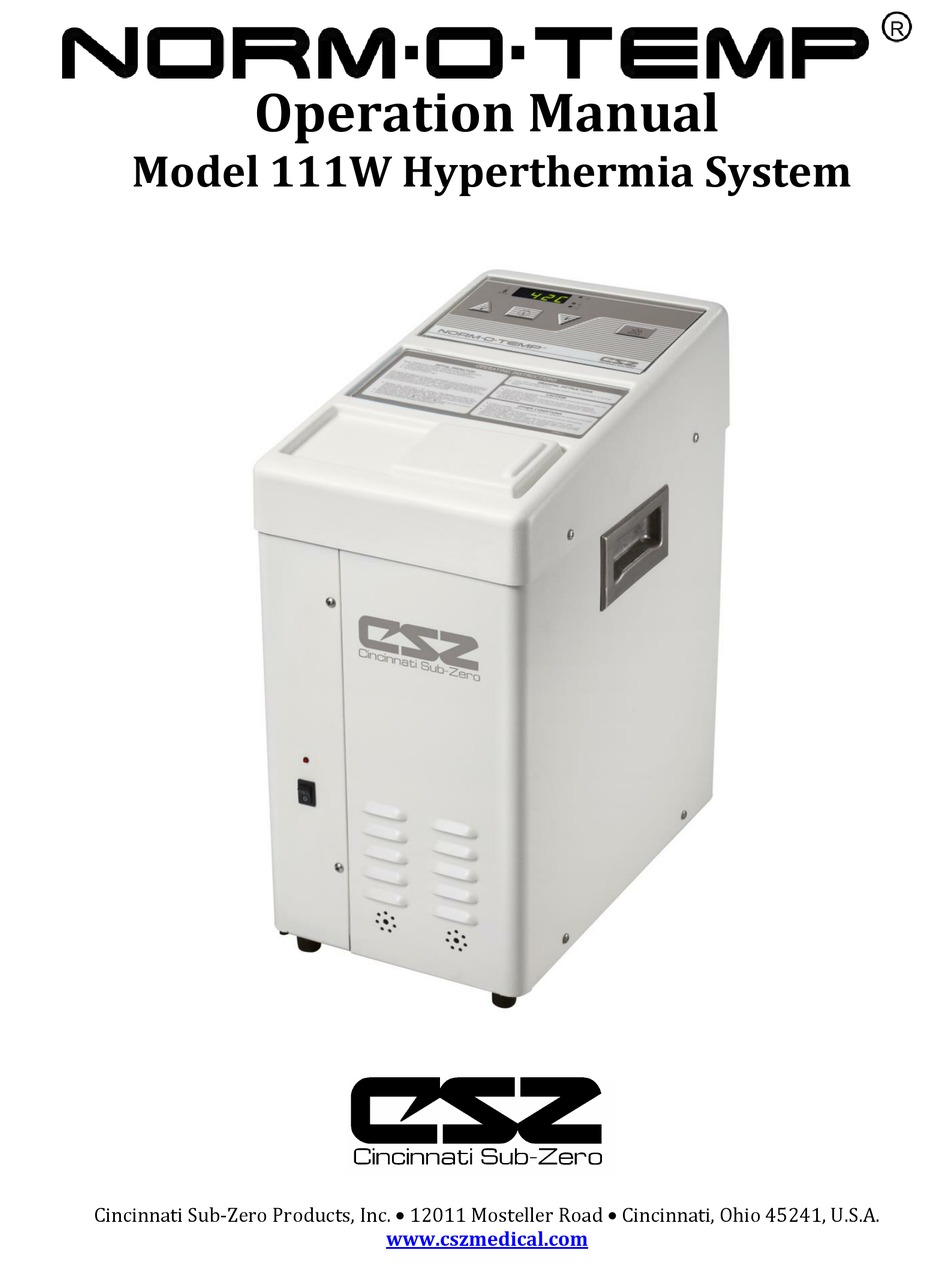

Operation Manual
Model 111W Hyperthermia System
Cincinnati Sub-Zero Products, Inc.  12011 Mosteller Road  Cincinnati, Ohio 45241, U.S.A.
www.cszmedical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORM-O-TEMP and is the answer not in the manual?

Questions and answers

Related Manuals for Cincinnati Sub-Zero NORM-O-TEMP

Summary of Contents for Cincinnati Sub-Zero NORM-O-TEMP

  • Page 1 Operation Manual Model 111W Hyperthermia System Cincinnati Sub-Zero Products, Inc.  12011 Mosteller Road  Cincinnati, Ohio 45241, U.S.A. www.cszmedical.com...
  • Page 2 , MAXI-THERM LITE, Gelli-Roll and PLASTI-PAD are registered ® ® ® ® ® trademarks of Cincinnati Sub-Zero Products, Inc., Cincinnati, Ohio USA. Copyright 2015 Cincinnati Sub-Zero Products, Inc. All rights reserved. Manual 57127 Rev. O ECN M409-4826 Page 2 of 26...

  • Page 3: Symbols

    Operation Manual NORM-O-TEMP, Model 111W SYMBOLS Caution: Read Fuse Temperature Set Operation Instructions and Manual Before Operating Increasing Silence Alarm Water Temperature Temperature Decreasing Fill to Strainer Temp. Set Point Temperature Indicator Inlet Heat Water Flow Indicator Outlet Risk of Explosion:...

  • Page 4: Warnings And Cautions

    Operation Manual NORM-O-TEMP, Model 111W Cincinnati Sub-Zero Products, Inc., reserves the right to make changes to the device, which may not be reflected in this manual. WARNING  A physician's order is required for the use of the device and setting the temperature of the blanket/pad.
  • Page 5 ® unit to patient use after repairs, the FIRST TIME SET- UP/SYSTEM TEST ROUTINE in the Operation/Technical Manual must always be performed. Improper repair and inadequate maintenance can result in damage to the NORM-O-TEMP ® system and patient injury. ...
  • Page 6 Do not overfill. Overfilling may result in overflow when the water in the blanket/pad drains back into the system when the system is turned off.  Always drain the NORM-O-TEMP system to a sanitary drain because bacteria may be present in ®...

  • Page 7: Table Of Contents

    Introduction ....................................21 3-1. Arranging the System Components ..........................21 3-2. Operating the NORM-O-TEMP System ........................22 ® 3-3. Concluding the Use of the NORM-O-TEMP System ....................22 ® Section 4. General Maintenance of the NORM-O-TEMP System ..................23 ® 4-0.

  • Page 8: Technical Help

    Visit our Web Site at http://www.cszmedical.com Before you call for Service... To help us better serve you, please have the serial number of your NORM-O-TEMP ® unit ready when you call for parts or service. The serial number is located on the specification label on the back of the unit.

  • Page 9: Norm-O-Temp ® System Operating Instructions "Quick Start" Guide

    Operation Manual NORM-O-TEMP, Model 111W NORM-O-TEMP System Operating Instructions “Quick Start” Guide ® Read Operation Manual before using this device First Time Use Cleaning: Refer to Section 4-2 for cleaning instructions. Initial Operation: 1. Fill reservoir with distilled water 2. Insert power cord plug into hospital grade outlet 3.
  • Page 10 Operation Manual NORM-O-TEMP, Model 111W Draining Instructions: 1. Turn “OFF” power switch. 2. Allow gravity to drain the water back into the unit from the blanket/pad. Alarm Conditions:  If an alarm sounds, check indicator lights or display for problem and take corrective action.

  • Page 11: Introduction

    NORM-O-TEMP, Model 111W Section 1. Introduction 1-0. General Safety Precautions To provide the patient maximum safety during the use of the NORM-O-TEMP hyperthermia ® system, a thorough knowledge and understanding of the system, and the correct application and operating use are required. Each person who is responsible for use or direction of use of the system, such as physicians, nurses, technicians and operators must read and understand this operating manual and all precautions and warnings prior to use.

  • Page 12: Physical Description Of The Norm-O-Temp ® System

    NORM-O-TEMP, Model 111W 1-3. Physical Description of the NORM-O-TEMP System ® See Section 2 for specifications and certifications of the NORM-O-TEMP system. ® 1-3.1. External Features and Descriptions – Front View The external features in Figure 1 of the NORM-O-TEMP unit are described as ®...

  • Page 13: 1-3.2. External Features And Descriptions - Left Side View

    Operation Manual NORM-O-TEMP, Model 111W 1-3.2. External Features and Descriptions – Left Side View The external features in Figure 2 of the NORM-O-TEMP unit are described as ® follows: A. The water flow indicator is a paddle wheel immersed in the path of the circulating water with a window to the outside.

  • Page 14: 1-3.3. External Features And Descriptions - Rear View

    Operation Manual NORM-O-TEMP, Model 111W 1-3.3. External Features and Descriptions – Rear View The external features in Figure 3 of the NORM-O-TEMP unit are described as follows: ® A. The specification label outlines the NORM-O-TEMP ® unit's electrical requirements. B. Sets of air vents provide air circulation for the internal components.

  • Page 15: 1-3.4. External Features And Descriptions - Right Side View

    Operation Manual NORM-O-TEMP, Model 111W 1-3.4. External Features and Descriptions – Right Side View The external features in Figure 4 of the NORM-O-TEMP unit are described as follows: ® A. The three sided enclosure panel, secured with eight screws, provides access to the interior.

  • Page 16: Figure 5. Norm-O-Temp ® Unit, Model 111W Top View

    Operation Manual NORM-O-TEMP, Model 111W E. The SILENCE ALARM button will silence the primary HI TEMP alarm and LO WATER audible alarms for five minutes and if the problem is not solved, the alarm will sound again until the button is pressed or the problem is solved.

  • Page 17: Required Accessories

    Operation Manual NORM-O-TEMP, Model 111W 1-4. Required Accessories Operation of the NORM-O-TEMP unit requires the use of the blanket/pad(s) designed to ® circulate warm water via a connecting hose with quick-disconnect male and female couplings. NORM-O-TEMP ® System Equipment and accessories are listed in the Operation/Technical Manual.

  • Page 18: Figure 6. Norm-O-Temp ® Unit, Model 111W Features

    Operation Manual NORM-O-TEMP, Model 111W Safety System Electrical System Maximum High Control Setting Electrical Characteristics: 42°C 230V, 50Hz, 4.8 Amps 240V, 50Hz, 4.6 Amps Primary Temperature Limit: 43.5°C ± 0.6°C Heater Power: Secondary Temperature Limit: 800 watts 44.5°C ± 0.6°C...

  • Page 19: Unit And Patient Related Precautions

    NORM-O-TEMP system. ® 2-1. Patient Preparation and Bedside Care Effective use of the NORM-O-TEMP hyperthermia system must include proper patient care prior ® to and while using the hyper-hypothermia blanket/pad(s). A. A base line recording should be made of vital signs, level of consciousness and responsiveness.
  • Page 20 Operation Manual NORM-O-TEMP, Model 111W C. Primary High Temperature Safety Alarm 1. If the circulating water reaches 43.5°C  0.6°C , the primary high temperature safety will activate to turn off the pump and turn off heater. In addition, the HI TEMP LED flashes and the audible alarm sounds.

  • Page 21: Operating The Norm-O-Temp ® System

    Section 3. Operating the NORM-O-TEMP System ® 3-0. Introduction This section describes how to operate the NORM-O-TEMP system in order to control the ® blanket/pad water temperature. For proper knowledge and understanding of the unit, in-service training is available upon request.

  • Page 22: Operating The Norm-O-Temp ® System

    ® The NORM-O-TEMP system operates based upon the actual temperature of the circulating ® water relative to the set point temperature. The NORM-O-TEMP ® system heats and circulates the water. Given the many variables such as patient size, weight, or condition, there is no direct relationship between the temperature of the circulating water and patient temperature.

  • Page 23: General Maintenance Of The Norm-O-Temp ® System

    NORM-O-TEMP system continues to operate within the ® manufacturer’s specifications. See the Operation/Technical Manual for maintenance procedures that should be performed quarterly. Dispose of the NORM-O-TEMP ® unit per hospital protocol. 4-1. Replenishing the Reservoir / Fixing a Low Water Alarm A.
  • Page 24 40% U 40% U ® recommended that the NORM-O-TEMP , Model 111W be (60% dip in U (60% dip in U powered from an uninterruptible power supply or a IEC 61000-4-11...
  • Page 25 ® ® location in which the NORM-O-TEMP , Model 111W is used exceeds the applicable RF compliance level above, the NORM-O-TEMP Model 111W should be observed to verify normal operation. If abnormal performance is observed, additional measures may be ®...
  • Page 26 , Model 111W can help prevent electromagnetic interference by maintaining a minimum ® distance between portable and mobile RF communications equipment (transmitters) and the NORM-O-TEMP , Model 111W as recommended below, according to the maximum output power of the communications equipment.
  • Page 28 Cincinnati Sub-Zero Products, Inc. 12011 Mosteller Road Cincinnati, OH 45241  Telephone: 1-800-989-7373 or (513)772-8810  Fax: (513)772-9119  E-Mail: cszinc@cszinc.com...
