L 2015
Bedienungsanleitung
Instruction manual
Notice d'emploi
Istruzioni per l'uso
Instrucciones de manejo
Gebruiksaanwijzing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L 2015 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sennheiser L 2015

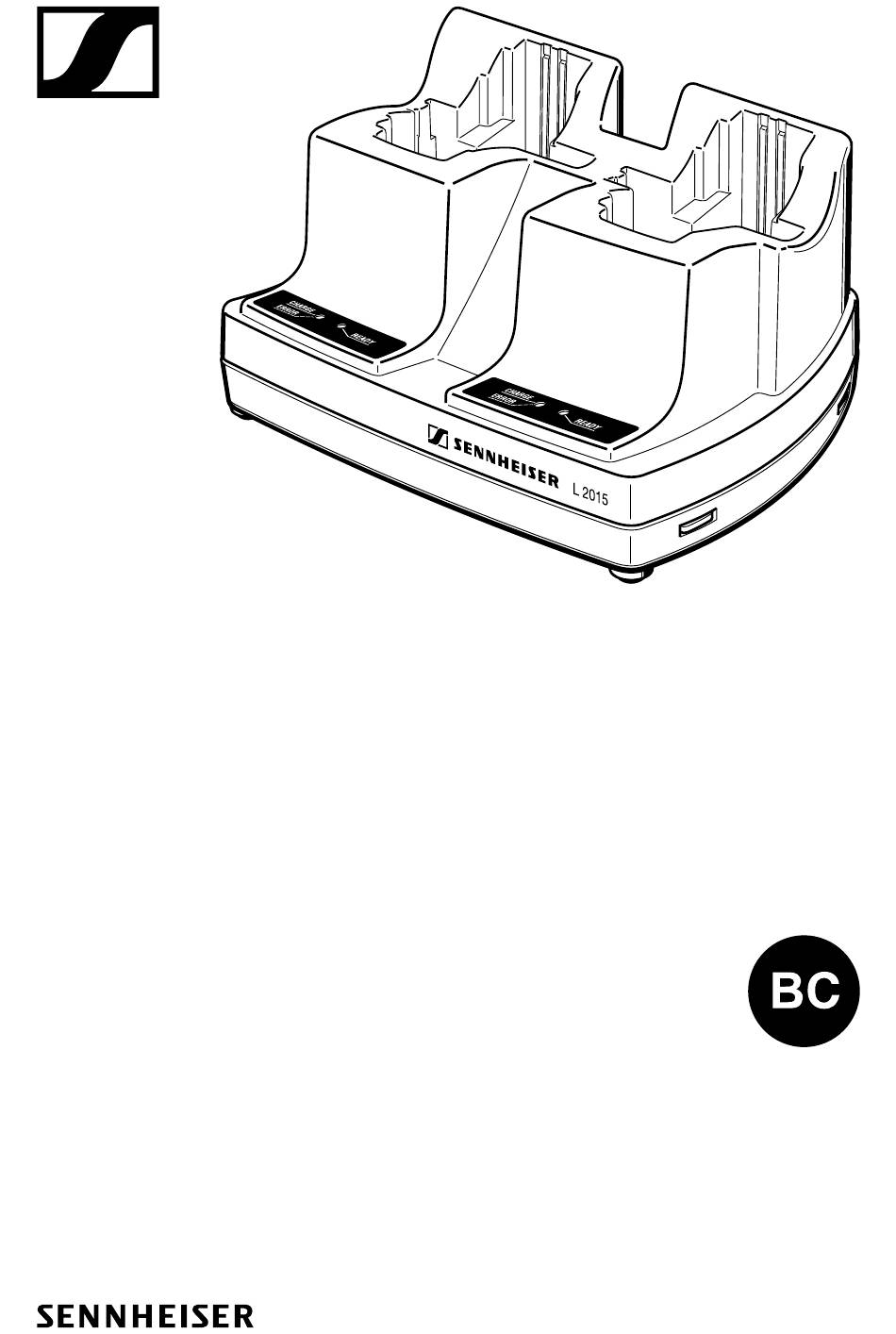

  • Page 1 L 2015 Bedienungsanleitung Instruction manual Notice d‘emploi Istruzioni per l‘uso Instrucciones de manejo Gebruiksaanwijzing...
  • Page 3: Important Safety Instructions

    13. Unplug the power supply unit from the wall socket, • to completely disconnect the product from the power supply system, • during lightning storms, • when not using the product for long periods of time. L 2015 | 17...
  • Page 4 Risk of fire due to overloading Do not overload wall outlets and extension cables as this may result in fire and electric shock. 18 | L 2015...
  • Page 5 Before putting the products into operation, please observe the respective country-specific regulations! Sennheiser is not liable for damages resulting from the loss of connection due to flat or overaged (rechargeable) batteries or exceeding the transmission range. Safety instructions for standard/rechargeable...

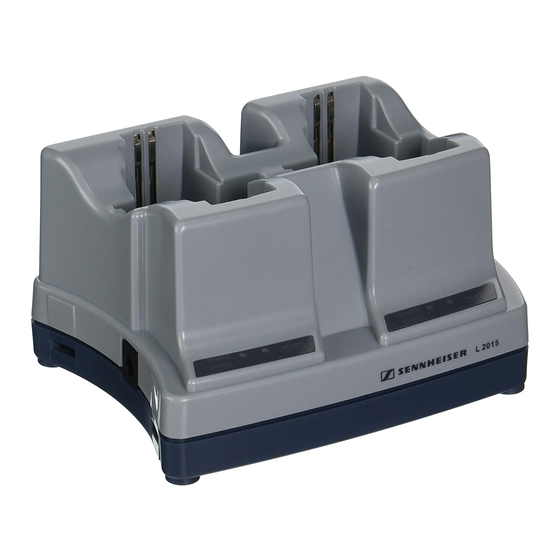

  • Page 6: The L 2015 Quick Charger

    The L 2015 quick charger The L 2015 quick charger The L 2015 quick charger must only be used for automati- cally charging BA 2015 accupacks – individual rechargeable battery cells or primary cells cannot be charged! The BA 2015 accupack is suitable for units of the Sennheiser ew G2, ew G3, ew  ...
  • Page 7: Operating Controls

    (2 x) Green LED READY (2 x) Charging compartment for BA 2015 accupack (2 x) Charging compartment for SK/EK (2 x) Air vents DC socket for connection of mains unit Guiding slot with internal rail (2 x) L 2015 | 21...
  • Page 8: Led Indications

    Slide the second charger onto the rails of the first charger and screw the rails tight using the two screws 9. Up to three chargers can be cascaded together with the rails and can by powered by a common mains unit. 22 | L 2015...
  • Page 9 Operating controls Numbers of chargers Mains unit required NT 1-1 up to 3 NT 3-1 L 2015 | 23...
  • Page 10: Setting Up The Charger

    To switch the charger on, insert the hollow jack plug on the cable of the mains unit (mains unit must be ordered sepa- rately) into socket 6. Connect the mains unit to the mains. All LEDs briefly light up one after the other. 24 | L 2015...
  • Page 11 • the ambient temperature is close to or over 40 °C, since, in order to protect the accupack, the charging process will be interrupted until the accupack temperature has fallen to an admissible value. L 2015 | 25...
  • Page 12 • an accupack cannot be fully charged within the max. charging time of 6 hours, e.g. due to overaged cells. Charging the BA 2015 accupack in the SK/EK/SKM LA 2 26 | L 2015...
  • Page 13: If A Problem Occurs

    Cleaning and maintenance CAUTION LIQUIDS CAN DAMAGE THE PRODUCTS’ ELECTRONICS. Liquids entering the product housing can cause a short-circuit and damage the electronics. Keep all liquids away from the products. Do not use any solvents or cleansing agents. L 2015 | 27...
  • Page 14: Specifications

    2.5 h with a totally discharged accupack and at room temperature, automatic security switch-off after 6 h at the latest Operating tem- 0 – 40 °C perature Dimensions approx. 145 x 80 x 110 mm Weight approx. 310   g 28 | L 2015...
  • Page 15 Accessories Accessories Art. No. BA 2015 Accupack for powering units of the 009950 Sennheiser ew G2, ew G3, ew G4 series, 2000er series, the system Tourguide 1039 and the System 2015 NT 1-1 Mains unit for powering a single 503158 L  ...
  • Page 16: Manufacturer Declarations

    Information about approvals and certifications can be found in the „Compliance“ section. Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.
  • Page 17: Eu Declaration Of Conformity

    • RoHS Directive (2011/65/EU) Hereby, Sennheiser electronic GmbH & Co. KG declares that the radio equipment type (accessory) L 2015 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.sennheiser.com/download.
  • Page 18 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause undesired operation. This Class A digital apparatus complies with the Canadian ICES-003. 32 | L 2015...
  • Page 19 Compliance Compliance Certified by Europe Canada CAN ICES-3 (A)/NMB-3(A) Australia L 2015...
  • Page 20 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 07/18, 093903/A02...
