JMA MULTICODE Manual page 76

6.3 CLEAN SWARF TRAY AREA
To remove the swarf tray, do the following:
1) Remove the swarf box, pulling it outwards.
2) Remove the swarf, using the brush.

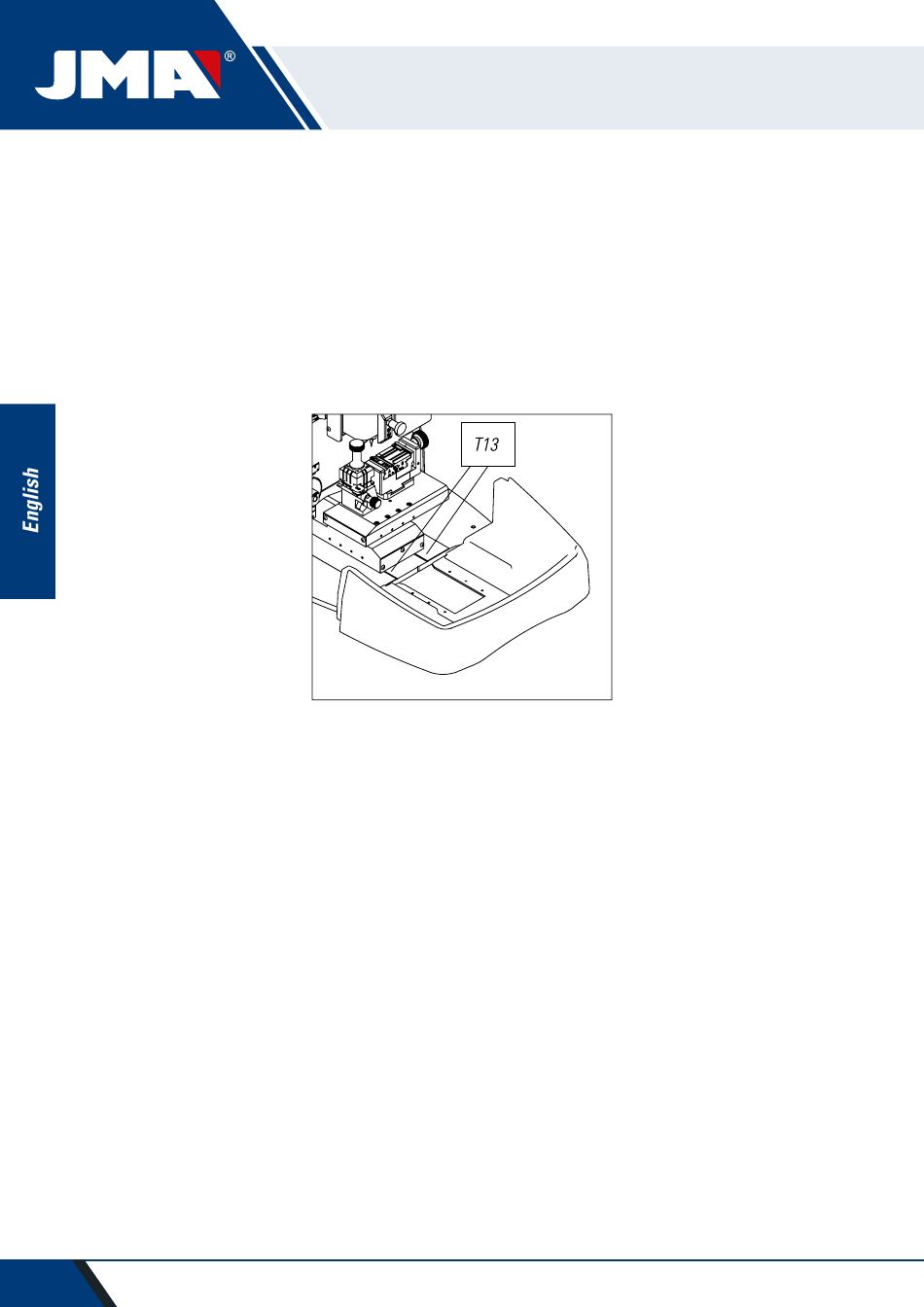

3) Re-introduce the tray taking it to the bottom following the two lines (T13) marked in black on the chassis (Fig. 30)
6.4 REPLACE PRISMATIC CUTTER.
To replace the cutter, do the following:
1) Switch the machine off using the emergency stop and disconnect the cable from the power supply.
2) Raise the front plastic guard.
3) Introduce the blocking rod (T14), which is in the accessory box (Fig. 31)
4) Unscrew the cutter fixing screw (T15) with the 18mm spanner.
Note: Thread to the left
5) Replace the cutter, block the nut, remove the rod from the hole and place the protection cover.
NOTE: In the case of installing a new cutter, the cutter will have to be adjusted
(See sect. 3.3.1)
76
FIG. 30
