3.3 Weather Protection

When the GD10P is mounted outdoors, the flow direction indicator must point
upwards
See "Flow Direction Indicator" in Figure 2 below. Orientation of the Weather Protection is
performed as follows:
Use a screwdriver to loosen the two screws on the Weather Protection
•
Rotate the Weather Protection to correct position
•
Tighten the screw with a torque of max. 0.5 Nm
•
Fixing screws

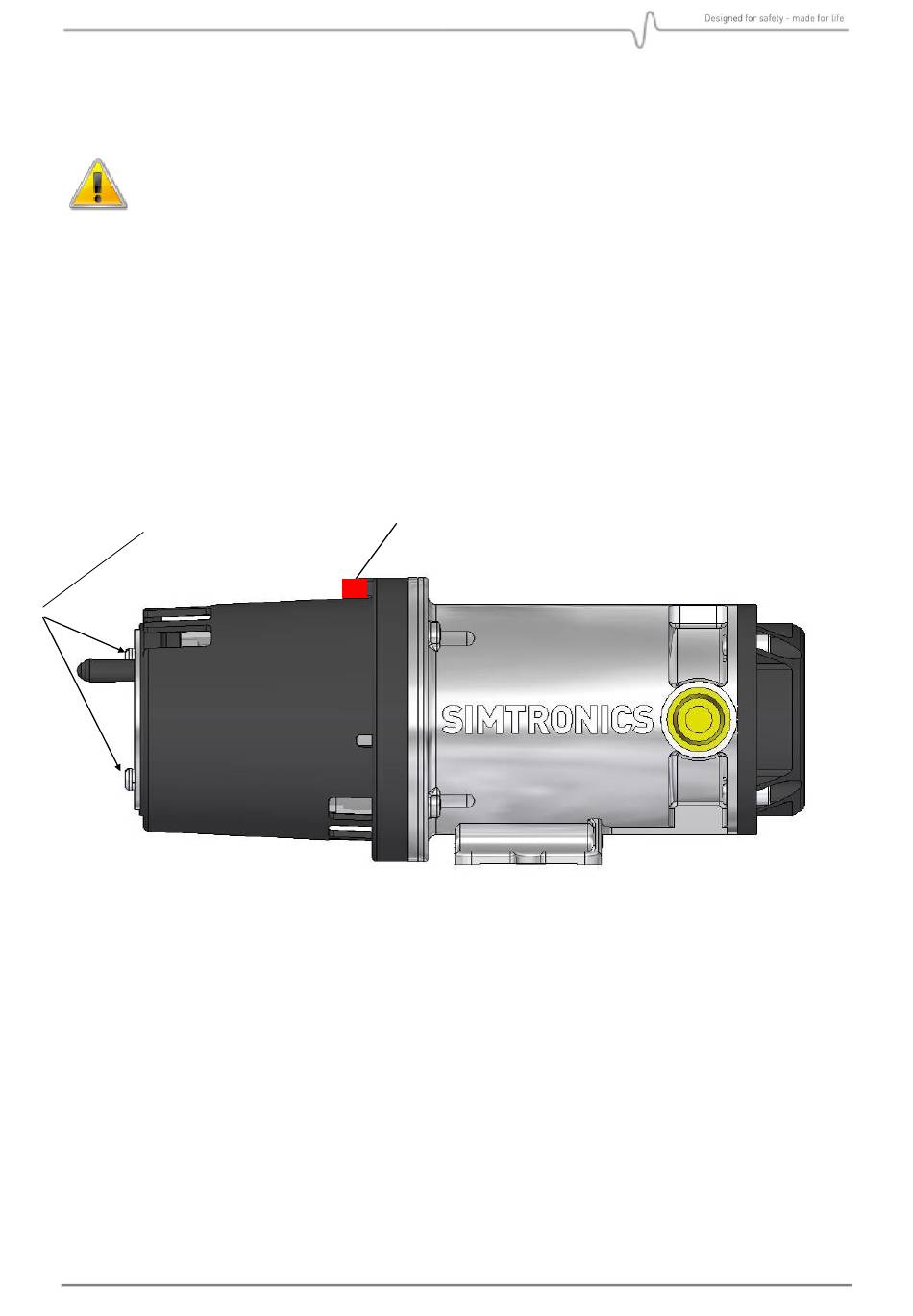

Figure 2 : Orientation of GD10P weather protection in relation to flow direction
GD10P User Manual
Flow direction indicator
