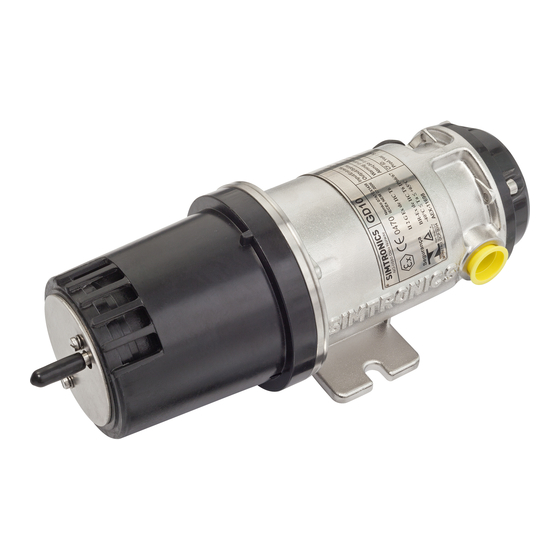

Simtronics GD10-P00 Operating Manual
  1. Manuals
  2. Brands
  3. Simtronics Manuals
  4. Other
  5. GD10-P00
  6. Operating manual

Simtronics GD10-P00 Operating Manual

Infrared point gas detector
Hide thumbs Also See for GD10-P00:
Table of Contents

Advertisement

Quick Links

Operating Manual
Infrared Point Gas Detector
GD10-P00
P/N : 850-811250-Rev.06b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD10-P00 and is the answer not in the manual?

Questions and answers

Related Manuals for Simtronics GD10-P00

Summary of Contents for Simtronics GD10-P00

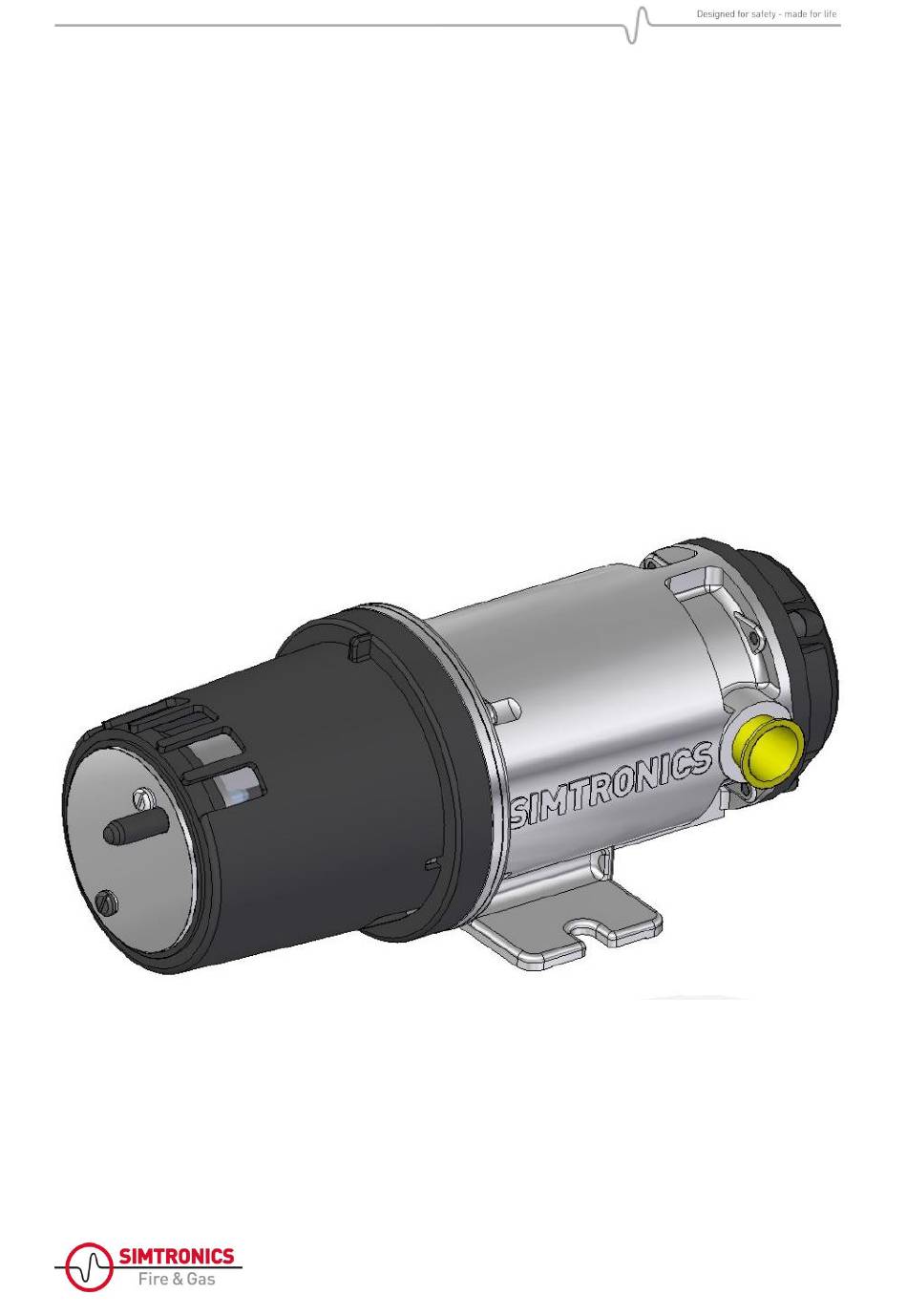

  • Page 1 Operating Manual Infrared Point Gas Detector GD10-P00 P/N : 850-811250-Rev.06b...
  • Page 2 Copyright  September 2018 by Simtronics A.S. All rights reserved. No reproduction of all or part of this document, in any form, is permitted without the written consent of Simtronics A.S. All of the information that is provided in this document is accurate to the best of our knowledge.
  • Page 3 SIMTRONICS products. SIMTRONICS shall not be responsible for any direct or indirect damage, or any direct or indirect consequence, resulting from the sale and use of any of its products UNLESS SUCH PRODUCTS HAVE BEEN SELECTED BY SIMTRONICS ACCORDING TO THE APPLICATION.
  • Page 4 The use of the unit has been projected for the applications specified in the technical characteristics. Exceeding the indicated values cannot in any case be authorized. SIMTRONICS recommends regular testing of fixed gas detection installations (read Chapter 6). Warranty Under normal conditions of use and on return to the factory, parts and workmanship are guaranteed for 5 years, IR sources are guaranteed for 15 years.

  • Page 5: Table Of Contents

    Table of contents PRODUCT DESCRIPTION ...................................... 7 TECHNICAL SPECIFICATIONS .................................... 9 INSTALLATION ........................................11 Positioning ........................................ 11 Fixing ..........................................11 Weather Protection ....................................12 Duct or pipe mounting ..................................13 External cable ......................................15 Electrical connection .................................... 15 COMMISSIONING ........................................ 17 Visual inspection ....................................
  • Page 6 GD10P User Manual Page 6 of 44 850-811250-Rev.06b...

  • Page 7: Product Description

    1 PRODUCT DESCRIPTION The GD10P has been designed with features that provide an effective response to the detection of gas hazards in a wide range of industrial environments from boiler plant rooms to offshore petrochemical installations. These infrared gas detectors differ from all other models, because they utilise silicon based solid- state infrared sources.
  • Page 8 GD10P User Manual Page 8 of 44 850-811250-Rev.06b...

  • Page 9: Technical Specifications

    2 TECHNICAL SPECIFICATIONS Version: 0-100%LEL Methane, 5 sec. response time. (Specification for other types on request) GENERAL Detection method IR-absorption, dual wavelength, dual path IR-Source Solid state IR source, 50Hz flash Gases detected Detector versions for several hydrocarbons as well as CO2. Self-test Continuous Calibration...
  • Page 10 OUTPUT SIGNAL Standard Current source 4 – 20 mA, max. load impedance 500 Ohm Option Current sink 4 – 20 mA Maintenance HART® interface ELECTRICAL Power supply 24 VDC, range 18-32 VDC Power consumption Approx. 3.5 W Connection 3 wires (0.5mm2 - 1.5mm2) Cable entry M20 Ex e cable gland TEMPERATURE RANGE...

  • Page 11: Installation

    3 INSTALLATION The area in which the detector may be installed must be in accordance with the certification of the detector and in accordance with the standards of the appropriate authority in the country concerned 3.1 Positioning The detector should be mounted where gas leakage is most likely to occur. To detect methane, which is lighter than air, inside an enclosed area the detector should be mounted high in the area to be protected or immediately above potential leakage sites.

  • Page 12: Weather Protection

    3.3 Weather Protection When the GD10P is mounted outdoors, the flow direction indicator must point upwards See “Flow Direction Indicator” in Figure 2 below. Orientation of the Weather Protection is performed as follows: Use a screwdriver to loosen the two screws on the Weather Protection •...

  • Page 13: Duct Or Pipe Mounting

    3.4 Duct or pipe mounting If installed in a ventilation duct or pipe, the mounting arrangement and accessories shown in Figure 3 and Figure 4 should be used. The Duct Mounting Bracket shown in Figure 3 allows the GD10P to be positioned in the core of the airflow in wide ducts or pipes. Avoid direct light on lens and mirror if the GD10P is mounted without the Weather Protection.
  • Page 14 O 150 O 115,8 O 8,5 4x M 4x Flange 599-811939 Duct wall O 170 Flow direction indicator > 126 mm Figure 4: Ventilation duct or pipe mounting using Duct Mounting Flange Kit (Refer to Figure 3 for details) GD10P User Manual Page 14 of 44 850-811250-Rev.06b...

  • Page 15: External Cable

    3.5 External cable The cable type must be chosen in accordance with applicable regulations. The table below indicates maximum cable lengths (2-wire) restrictions due to voltage drop over the power supply cable. Core size cable 0,5 mm 0,9-1 mm 1,5 mm Maximum length (with a 250m 500m...
  • Page 16 The installation wiring enters the terminal compartment via a single M20 Ex e cable gland, which can be mounted on either side of the compartment. The unused entry is blanked with an Ex e cover. The detector housing must be connected to local ground via the external earth point.

  • Page 17: Commissioning

    4 COMMISSIONING 4.1 Visual inspection The following should be checked before initial powering up: The axis of the detector shall be horizontal, • Correct cable gland installation, • Electrical connection, • Electrical grounding, • Termination of cable shield, • Orientation of the weather protection, •...
  • Page 18 2) Do a gas test To make sure the detector works fine you should as a minimum do a function check as described in paragraph 6.2 “Function test”. Optionally you may do a full calibration test as described in paragraph 6.3 “Calibration test”. GD10P User Manual Page 18 of 44 850-811250-Rev.06b...

  • Page 19: Operation

    Shows default factory settings. Can be configured via HART® terminal 5.2 HART® Interface 5.2.1 Introduction Simtronics GD10P detector supports HART® version 7. For proper operation between GD10P and the HART® communicator, a dedicated Device Descriptor (DD) should be loaded onto the communicator. If such DD is not present, the communicator will offer a proprietary generic interface, and the list of available functions may be limited and variable.
  • Page 20 5.2.2 Connection For access to the detectors HART® features, connect an industry standard HART® communicator as shown in the following figures depending on the type of analogue interface (source or sink). Note that for the HART® communication to work properly, a minimum loop resistance is required in the current loop.
  • Page 21 5.2.3 HART® Menu Map GD10P User Manual Page 21 of 44 850-811250-Rev.06b...
  • Page 22 The operator can write an alphanumeric text, max 32 characters. Default is empty. 5.2.4.3 Descriptor (Basic setup) The operator can write an alphanumeric text, max 16 characters. Default is “SIMTRONICS A/S”. 5.2.4.4 Date (Basic setup) The operator can write a date on the format MM/DD/YY. Default is “**/**/**”.
  • Page 23 5.2.4.8 SET FAULT OPTION (Detailed setup) The operator can choose between three options according to the following table. Early Dirty Optics Option Detector fault Dirty Optics (see note 1) <0.5 mA 1 mA 2 mA (default settings) 1 mA 2 mA 3 mA 1 (0 mA) 1 (0 mA)
  • Page 24 5.2.4.11 GD10 Loop Test (Diag/Service) A fixed analogue output level can be used to test the analogue output loop. Such fixed analogue output level can be obtained with this function. The operator can choose one of the pre-set levels, or specify a user defined level. GD10P User Manual Page 24 of 44 850-811250-Rev.06b...

  • Page 25: Maintenance

    6 MAINTENANCE The GD10P has no user adjustable parts. It is not recommended to open the GD10P, as this will change the internal atmosphere, and the initial calibration could be affected. Opening the GD10P voids all warranty offered at the time of sale. 6.1 Cleaning of optical lens/mirror Remove the weather protection by unscrewing the front cover plate (two screws), use a soft, clean tissue to rub off the contamination.

  • Page 26: Calibration Test

    The GD10 detector is calibrated and temperature tested in a controlled environment at the Simtronics factory. No further calibration is required during the life time of the product, as the zero point and calibration will stay inside the given tolerances. This implies that slight offsets from the zero point of 4.0mA (0%LEL) is to be expected and values up to 4.5mA at room...
  • Page 27 In some environments with excessive heat and/or vibration we have noticed that a higher percentage of the detectors develop an offset outside the specified tolerances. These detectors should normally be returned to the factory for service. An alternative is to do this re-zeroing on site with a dedicated hand held terminal, or HART®...

  • Page 28: Fault Finding

    6.5 Fault finding The internal microprocessor performs continuous self-testing of optical and Clean mirror and lens electronic functions. If a fatal error should occur in the electronics or optics, the processor will Connect power generate a 0mA output signal, indicating Connect current meter in series detector failure.

  • Page 29: Specific Instructions For Use In Explosive Atmospheres And Operational Safety

    7 SPECIFIC INSTRUCTIONS FOR USE IN EXPLOSIVE ATMOSPHERES AND OPERATIONAL SAFETY General comments GD10P gas detectors comply with the requirements of European Directive ATEX 2014/34/UE relating to gas explosive atmospheres. The information described below must be taken into account and fulfilled by the site manager. Refer to ATEX 1999/92/EC European Directive on requirements for improving the safety and health of workers potentially at risk from explosive atmospheres.
  • Page 30 Marking The GD10P identification labels are shown in the figures below. ATEX/IECEx/INMETRO markings (all variants) CSA marking (CO version) CSA marking (combustible gases version) GD10P User Manual Page 30 of 44 850-811250-Rev.06b...

  • Page 31: Declarations Of Conformity

    8 DECLARATIONS OF CONFORMITY GD10P User Manual Page 31 of 44 850-811250-Rev.06b...
  • Page 32 GD10P User Manual Page 32 of 44 850-811250-Rev.06b...
  • Page 33 GD10P User Manual Page 33 of 44 850-811250-Rev.06b...
  • Page 34 GD10P User Manual Page 34 of 44 850-811250-Rev.06b...

  • Page 35: Product Coding

    9 PRODUCT CODING GD10-P00-A-B-00 A: Calibration Gas (a selection of most common variants) B: Configuration UL – Not used anymore Example : GD10-P00-17DG-0XH-00: GD10P, Methane, 0-100 %LEL CH4 (5.0% vol.), ATEX/IECEx/INMETRO, 4-20mA source, HART® GD10P User Manual Page 35 of 44...
  • Page 36 GD10P User Manual Page 36 of 44 850-811250-Rev.06b...

  • Page 37: Accessories And Spare Parts

    10 ACCESSORIES AND SPARE PARTS Accessories Description Part Number Sample Flow Housing: Airtight chamber for 499-810874 sampling systems. Also used for calibration test. Duct Flange Tube Kit GD10 499-811938 Mosquito Set Assy GD10P: Insect protection in 499-813397 stainless steel mesh. Slides on the outside of the standard weather protection.
  • Page 38 Spare Parts Description Part Number Weather Protection Kit GD10 499-810913 Cap, cover for the gas test nozzle. 599-904176 Rear cover kit, composite 499-816584 GD10P User Manual Page 38 of 44 850-811250-Rev.06b...

  • Page 39: Appendix 1 - Generic Hart® Commands

    11 APPENDIX 1 - GENERIC HART® COMMANDS Current Gas reading Read Primary Variable (command #1), returns the current gas reading. Detector Variables “Read all dynamic Variables and Current” (Command #3), returns the following: • “Secondary Variable”: Current internal temperature of the detector •...
  • Page 40 Fixed Output A fixed analogue output level can be used to test the analogue output loop. Such fixed analogue output level can be obtained with the function “Enter/Exit Fixed Current Mode” (command #40). The possible level that may be fixed at the output is in the range (0.5-3) mA and (5.5-20) mA. Configuration of the fault levels Reconfiguration of the fault levels can be made by writing a Hash Code to the detector via the command “Write Message”...
  • Page 41 GD10P User Manual Page 41 of 44 850-811250-Rev.06b...
  • Page 42 GD10P User Manual Page 42 of 44 850-811250-Rev.06b...
  • Page 43 GD10P User Manual Page 43 of 44 850-811250-Rev.06b...
  • Page 44 EUROPEAN PLANT AND OFFICES Z.I. Est – rue Orfila CS 20417 – 62027 ARRAS Cedex FRANCE Tél.: +33 (0)3 21 60 80 80 – Fax: +33 (0)3 21 60 80 00 Web site: https://gasdetection.3M.com AMERICAS ASIA PACIFIC EUROPE Tel : +1-713-559-9280 Tel : +86-21-3127-6373 Tel : +33-321-608-080 Fax : +1-281-292-2860...
