Elkay LVRCHDTLDDSC Installation Instructions

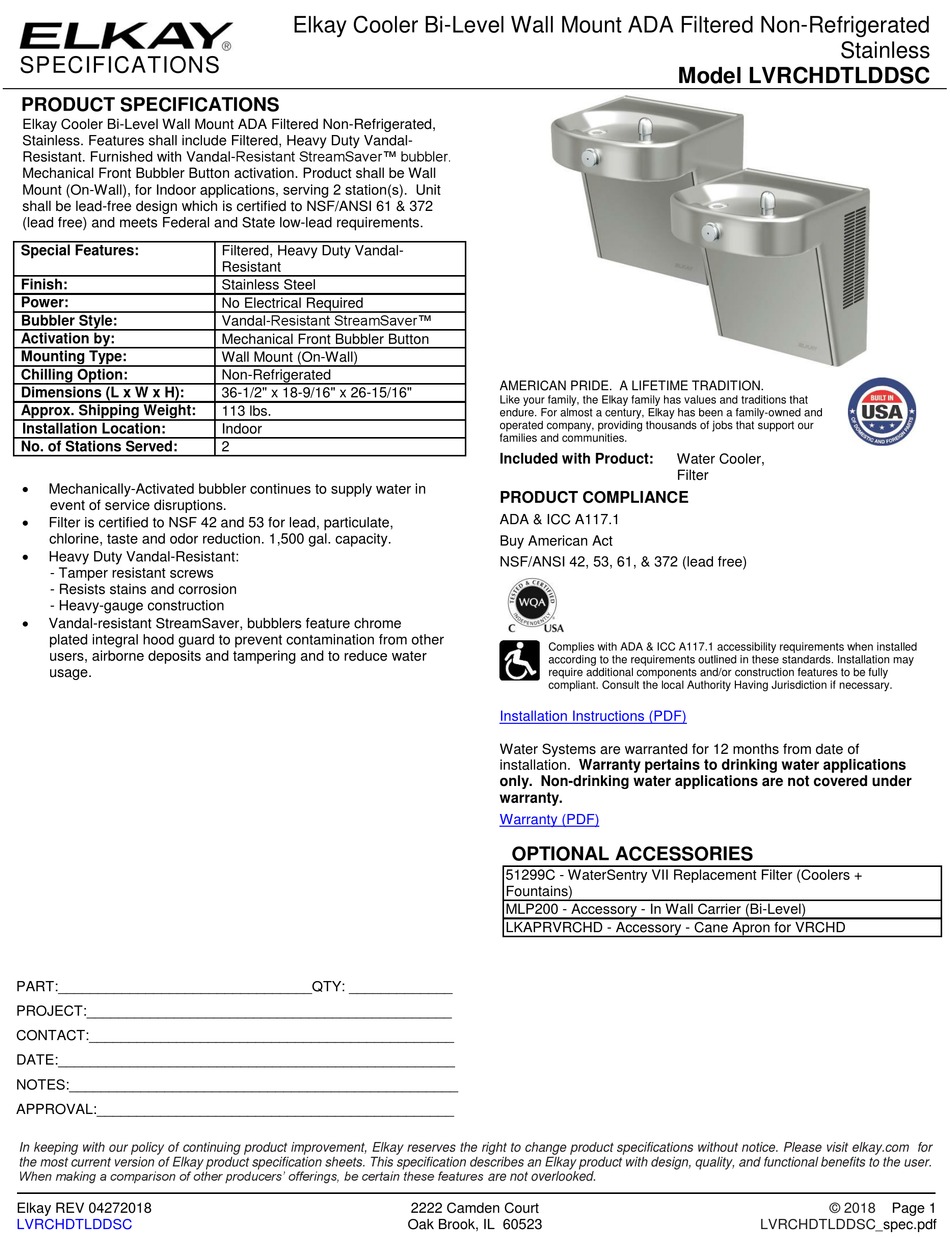

SPECIFICATIONS

PRODUCT SPECIFICATIONS

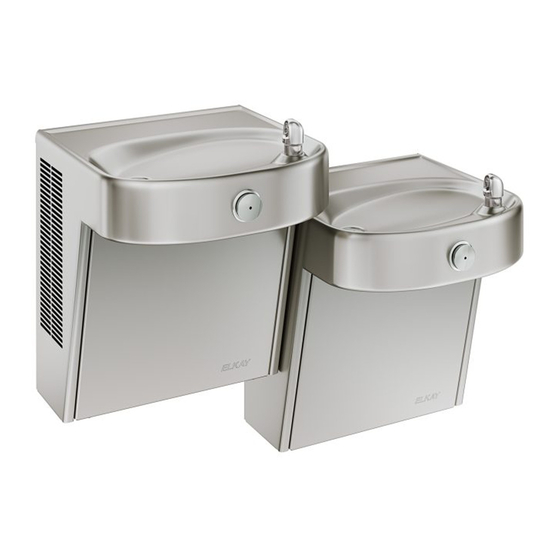

Elkay Cooler Bi-Level Wall Mount ADA Filtered Non-Refrigerated,
Stainless. Features shall include Filtered, Heavy Duty Vandal-
Resistant. Furnished with Vandal-Resistant StreamSaver™ bubbler.
Mechanical Front Bubbler Button activation. Product shall be Wall
Mount (On-Wall), for Indoor applications, serving 2 station(s). Unit
shall be lead-free design which is certified to NSF/ANSI 61 & 372
(lead free) and meets Federal and State low-lead requirements.
Special Features:
Finish:
Power:
Bubbler Style:
Activation by:
Mounting Type:
Chilling Option:
Dimensions (L x W x H):
Approx. Shipping Weight:
Installation Location:
No. of Stations Served:

Mechanically-Activated bubbler continues to supply water in
event of service disruptions.

Filter is certified to NSF 42 and 53 for lead, particulate,
chlorine, taste and odor reduction. 1,500 gal. capacity.

Heavy Duty Vandal-Resistant:
- Tamper resistant screws
- Resists stains and corrosion
- Heavy-gauge construction

Vandal-resistant StreamSaver, bubblers feature chrome
plated integral hood guard to prevent contamination from other
users, airborne deposits and tampering and to reduce water
usage.
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers' offerings, be certain these features are not overlooked.
Elkay REV 04272018
LVRCHDTLDDSC
Elkay Cooler Bi-Level Wall Mount ADA Filtered Non-Refrigerated
Filtered, Heavy Duty Vandal-
Resistant
Stainless Steel
No Electrical Required
Vandal-Resistant StreamSaver™
Mechanical Front Bubbler Button
Wall Mount (On-Wall)
Non-Refrigerated
36-1/2" x 18-9/16" x 26-15/16"
113 lbs.
Indoor
2
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Included with Product:
PRODUCT COMPLIANCE
ADA & ICC A117.1
Buy American Act
NSF/ANSI 42, 53, 61, & 372 (lead free)
Complies with ADA & ICC A117.1 accessibility requirements when installed
according to the requirements outlined in these standards. Installation may
require additional components and/or construction features to be fully
compliant. Consult the local Authority Having Jurisdiction if necessary.
Installation Instructions (PDF)
Water Systems are warranted for 12 months from date of
installation. Warranty pertains to drinking water applications
only. Non-drinking water applications are not covered under
warranty.
Warranty (PDF)

OPTIONAL ACCESSORIES

51299C - WaterSentry VII Replacement Filter (Coolers +
Fountains)
MLP200 - Accessory - In Wall Carrier (Bi-Level)
LKAPRVRCHD - Accessory - Cane Apron for VRCHD
2222 Camden Court
Oak Brook, IL 60523
Stainless
Model LVRCHDTLDDSC
Water Cooler,
Filter
© 2018
LVRCHDTLDDSC
Page 1
spec.pdf
