Elkay LVRCHDTL8SC Installation Instructions

SPECIFICATIONS

PRODUCT SPECIFICATIONS

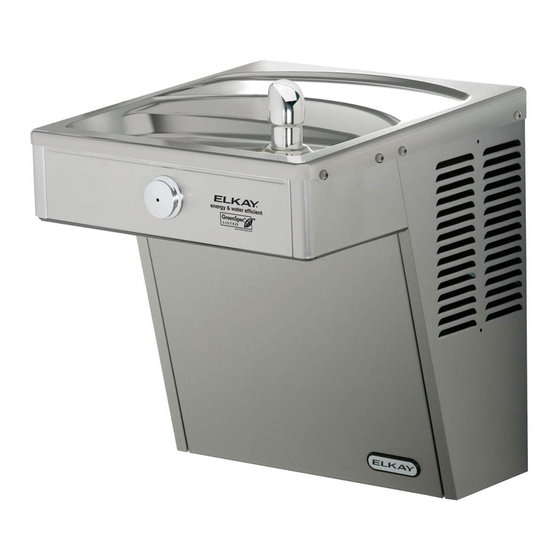

Elkay Cooler Bi-Level Wall Mount ADA Filtered 8 GPH Stainless.
Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking
water, based on 80 F inlet water and 90 F ambient, per ASHRAE
18 testing. Features shall include Filtered, Heavy Duty Vandal-
Resistant. Furnished with Vandal-Resistant StreamSaver™ bubbler.
Mechanical Front Bubbler Button activation. Product shall be Wall
Mount (On-Wall), for Indoor applications, serving 2 station(s). Unit
shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall
be lead-free design which is certified to NSF/ANSI 61 & 372 (lead
free) and meets Federal and State low-lead requirements.
Special Features:
Finish:
Power:
Bubbler Style:
Activation by:
Mounting Type:
Chilling Option*:
Full Load Amps
Rated Watts:
Dimensions (L x W x H):
Approx. Shipping Weight:
Installation Location:
No. of Stations Served:
*Based on 80° F inlet water & 90° F ambient air temp for 50° F
chilled drinking water.

Mechanically-Activated bubbler continues to supply water in
event of service disruptions.

Filter is certified to NSF 42 and 53 for lead, particulate,
chlorine, taste and odor reduction. 1,500 gal. capacity.

Heavy Duty Vandal-Resistant:
- Tamper resistant screws
- Resists stains and corrosion
- Heavy-gauge construction

Vandal-resistant StreamSaver, bubblers feature chrome
plated integral hood guard to prevent contamination from other
users, airborne deposits and tampering and to reduce water
usage.

COOLING SYSTEM


Compressor: Hermetically-sealed, reciprocating type,
single phase. Sealed-in lifetime lubrication.

Condenser: Fan cooled, copper tube with aluminum
fins. Fan motor is permanently lubricated.

Cooling Unit: Combination tube-tank type. Continuous
copper tubing with is fully insulated with EPS foam that
meets UL requirements for self-extinguishing material.
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers' offerings, be certain these features are not overlooked.
Elkay REV 04272018
LVRCHDTL8SC
Elkay Cooler Bi-Level Wall Mount ADA Filtered 8 GPH Stainless
Filtered, Heavy Duty Vandal-
Resistant
Stainless Steel
115V/60Hz
Vandal-Resistant StreamSaver™
Mechanical Front Bubbler Button
Wall Mount (On-Wall)
8.0 GPH
5
370
36-1/2" x 18-9/16" x 26-15/16"
113 lbs.
Indoor
2
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Included with Product:

PRODUCT COMPLIANCE

ADA & ICC A117.1
Buy American Act
CAN/CSA C22.2 No. 120
NSF/ANSI 42, 53, 61, & 372 (lead free)
UL 399
Complies with ADA & ICC A117.1 accessibility requirements when installed
according to the requirements outlined in these standards. Installation may
require additional components and/or construction features to be fully
compliant. Consult the local Authority Having Jurisdiction if necessary.
Installation Instructions (PDF)
5 Year Limited Warranty on the refrigeration system of the unit.
Electrical components and water system are warranted for 12
months from date of installation. Warranty pertains to drinking
water applications only. Non-drinking water applications are
not covered under warranty.
Warranty (PDF)

OPTIONAL ACCESSORIES

51299C - WaterSentry VII Replacement Filter (Coolers +
Fountains)
MLP200 - Accessory - In Wall Carrier (Bi-Level)
LKAPRVRCHD - Accessory - Cane Apron for VRCHD
2222 Camden Court
Oak Brook, IL 60523
Model LVRCHDTL8SC
Water Cooler,
Filter
© 2018
LVRCHDTL8SC
Page 1
