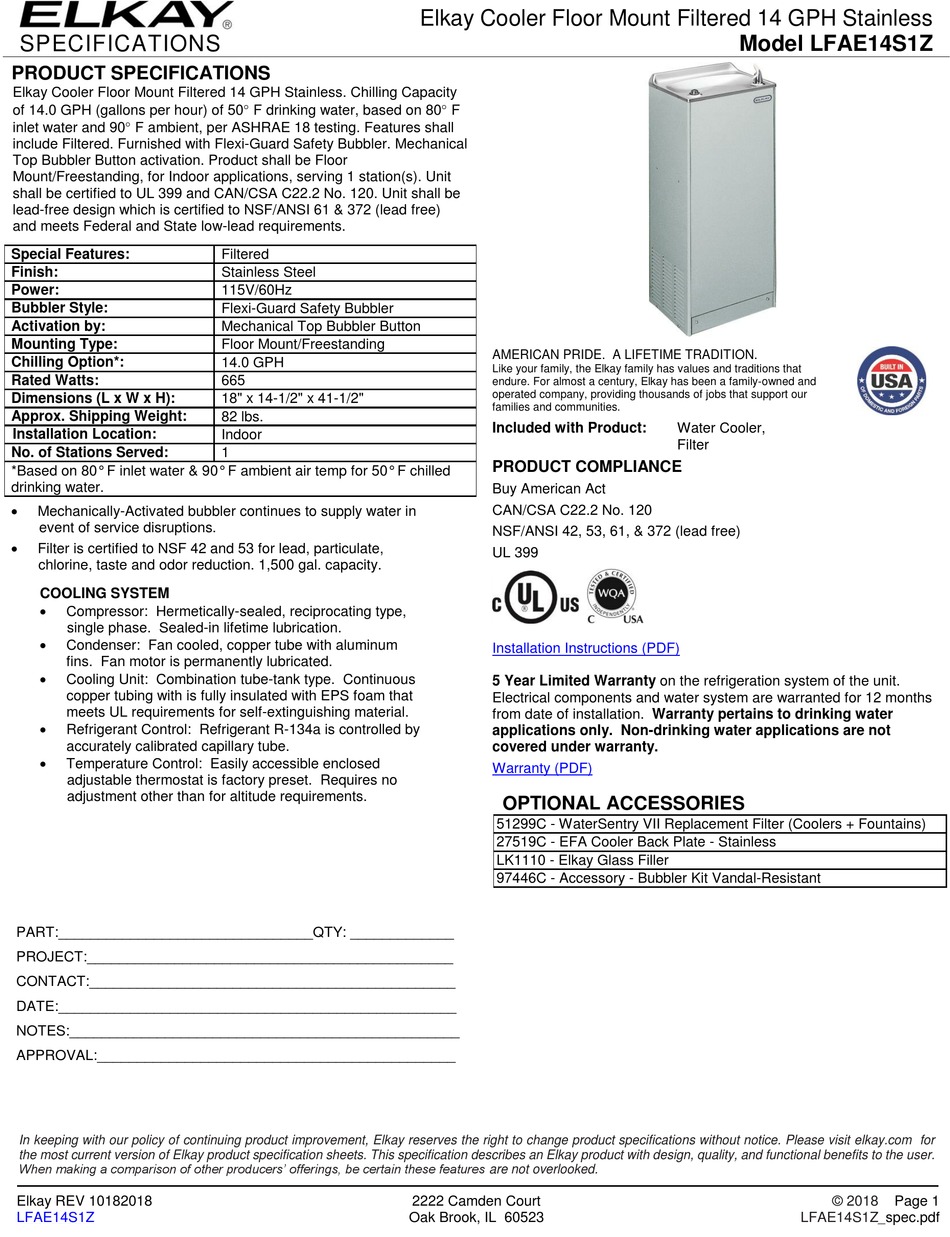

Elkay LFAE14S1Z Installation Instructions

SPECIFICATIONS

PRODUCT SPECIFICATIONS

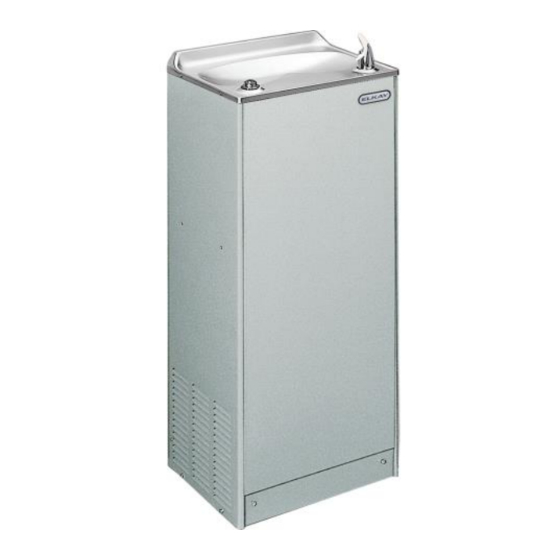

Elkay Cooler Floor Mount Filtered 14 GPH Stainless. Chilling Capacity
of 14.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F
inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall
include Filtered. Furnished with Flexi-Guard Safety Bubbler. Mechanical
Top Bubbler Button activation. Product shall be Floor
Mount/Freestanding, for Indoor applications, serving 1 station(s). Unit
shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be
lead-free design which is certified to NSF/ANSI 61 & 372 (lead free)
and meets Federal and State low-lead requirements.
Special Features:
Finish:
Power:
Bubbler Style:
Activation by:
Mounting Type:
Chilling Option*:
Rated Watts:
Dimensions (L x W x H):
Approx. Shipping Weight:
Installation Location:
No. of Stations Served:
*Based on 80° F inlet water & 90° F ambient air temp for 50° F chilled
drinking water.

Mechanically-Activated bubbler continues to supply water in
event of service disruptions.

Filter is certified to NSF 42 and 53 for lead, particulate,
chlorine, taste and odor reduction. 1,500 gal. capacity.

COOLING SYSTEM


Compressor: Hermetically-sealed, reciprocating type,
single phase. Sealed-in lifetime lubrication.

Condenser: Fan cooled, copper tube with aluminum
fins. Fan motor is permanently lubricated.

Cooling Unit: Combination tube-tank type. Continuous
copper tubing with is fully insulated with EPS foam that
meets UL requirements for self-extinguishing material.

Refrigerant Control: Refrigerant R-134a is controlled by
accurately calibrated capillary tube.

Temperature Control: Easily accessible enclosed
adjustable thermostat is factory preset. Requires no
adjustment other than for altitude requirements.
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers' offerings, be certain these features are not overlooked.
Elkay REV 10182018
LFAE14S1Z
Filtered
Stainless Steel
115V/60Hz
Flexi-Guard Safety Bubbler
Mechanical Top Bubbler Button
Floor Mount/Freestanding
14.0 GPH
665
18" x 14-1/2" x 41-1/2"
82 lbs.
Indoor
1
Elkay Cooler Floor Mount Filtered 14 GPH Stainless
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Included with Product:

PRODUCT COMPLIANCE

Buy American Act
CAN/CSA C22.2 No. 120
NSF/ANSI 42, 53, 61, & 372 (lead free)
UL 399
Installation Instructions (PDF)
5 Year Limited Warranty on the refrigeration system of the unit.
Electrical components and water system are warranted for 12 months
from date of installation. Warranty pertains to drinking water
applications only. Non-drinking water applications are not
covered under warranty.
Warranty (PDF)

OPTIONAL ACCESSORIES

51299C - WaterSentry VII Replacement Filter (Coolers + Fountains)
27519C - EFA Cooler Back Plate - Stainless
LK1110 - Elkay Glass Filler
97446C - Accessory - Bubbler Kit Vandal-Resistant
2222 Camden Court
Oak Brook, IL 60523
Model LFAE14S1Z
Water Cooler,
Filter
© 2018
LFAE14S1Z
