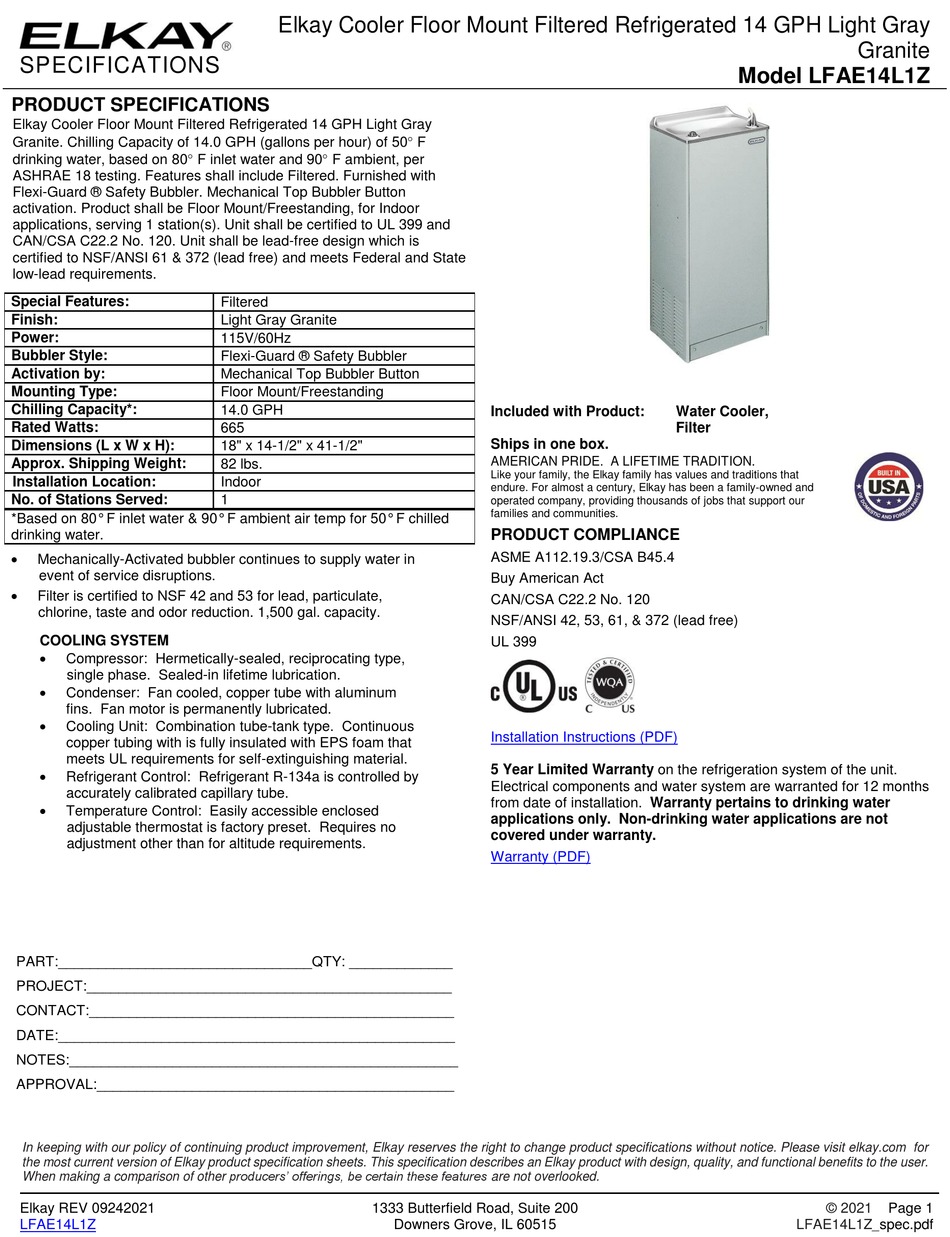

Elkay LFAE14L1Z Installation Instructions

SPECIFICATIONS

PRODUCT SPECIFICATIONS

Elkay Cooler Floor Mount Filtered Refrigerated 14 GPH Light Gray
Granite. Chilling Capacity of 14.0 GPH (gallons per hour) of 50 F
drinking water, based on 80 F inlet water and 90 F ambient, per
ASHRAE 18 testing. Features shall include Filtered. Furnished with
Flexi-Guard ® Safety Bubbler. Mechanical Top Bubbler Button
activation. Product shall be Floor Mount/Freestanding, for Indoor
applications, serving 1 station(s). Unit shall be certified to UL 399 and
CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is
certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State
low-lead requirements.
Special Features:
Finish:
Power:
Bubbler Style:
Activation by:
Mounting Type:
Chilling Capacity*:
Rated Watts:
Dimensions (L x W x H):
Approx. Shipping Weight:
Installation Location:
No. of Stations Served:
*Based on 80° F inlet water & 90° F ambient air temp for 50° F chilled
drinking water.

Mechanically-Activated bubbler continues to supply water in
event of service disruptions.

Filter is certified to NSF 42 and 53 for lead, particulate,
chlorine, taste and odor reduction. 1,500 gal. capacity.

COOLING SYSTEM


Compressor: Hermetically-sealed, reciprocating type,
single phase. Sealed-in lifetime lubrication.

Condenser: Fan cooled, copper tube with aluminum
fins. Fan motor is permanently lubricated.

Cooling Unit: Combination tube-tank type. Continuous
copper tubing with is fully insulated with EPS foam that
meets UL requirements for self-extinguishing material.

Refrigerant Control: Refrigerant R-134a is controlled by
accurately calibrated capillary tube.

Temperature Control: Easily accessible enclosed
adjustable thermostat is factory preset. Requires no
adjustment other than for altitude requirements.
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers' offerings, be certain these features are not overlooked.
Elkay REV 09242021
LFAE14L1Z
Elkay Cooler Floor Mount Filtered Refrigerated 14 GPH Light Gray
Filtered
Light Gray Granite
115V/60Hz
Flexi-Guard ® Safety Bubbler
Mechanical Top Bubbler Button
Floor Mount/Freestanding
14.0 GPH
665
18" x 14-1/2" x 41-1/2"
82 lbs.
Indoor
1
1333 Butterfield Road, Suite 200
Downers Grove, IL 60515
Included with Product:
Ships in one box.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.

PRODUCT COMPLIANCE

ASME A112.19.3/CSA B45.4
Buy American Act
CAN/CSA C22.2 No. 120
NSF/ANSI 42, 53, 61, & 372 (lead free)
UL 399
Installation Instructions (PDF)
5 Year Limited Warranty on the refrigeration system of the unit.
Electrical components and water system are warranted for 12 months
from date of installation. Warranty pertains to drinking water
applications only. Non-drinking water applications are not
covered under warranty.
Warranty (PDF)
Model LFAE14L1Z
Water Cooler,
Filter
© 2021
LFAE14L1Z
Granite
Page 1
spec.pdf
