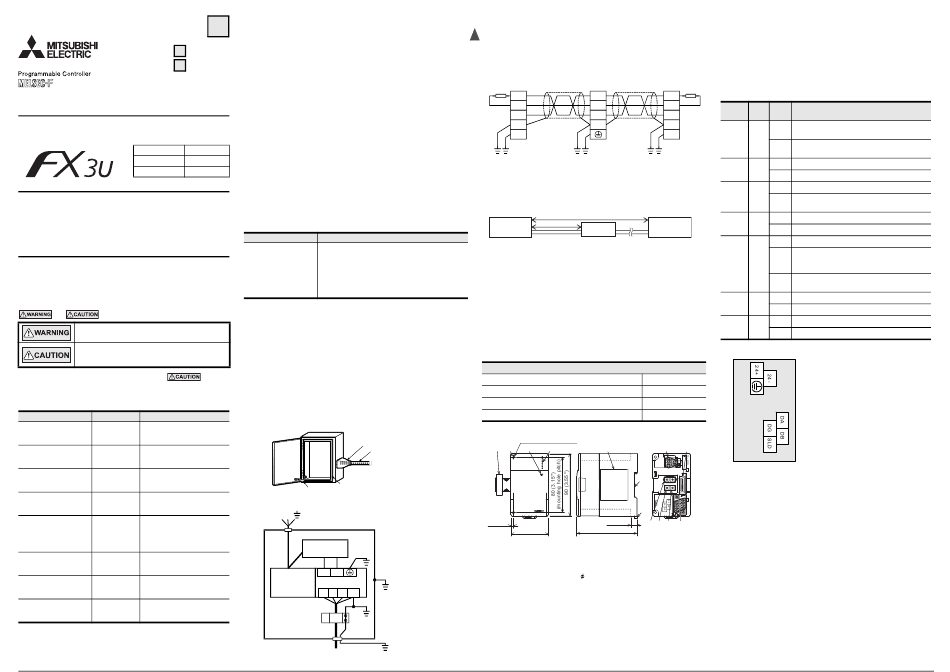

Mitsubishi Electric FX3U-64CCL Installation Manual

JY997D29801F
Side
JAPANESE
A
Side
ENGLISH
B
FX -64CCL
3U
INSTALLATION MANUAL
Manual Number JY997D29801
Revision F
Date May 2018
This manual describes the part names, dimensions, and specifications of the
product. Before use, read this manual and manuals of relevant products fully to
acquire proficiency in handling and operating the product. Make sure to learn all
the product information, safety information, and precautions.
Store this manual in a safe place so that it can be taken out and read whenever
necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this manual are the
registered trademarks or trademarks of each company.
Effective May 2018
Specifications are subject to change without notice.
©
2008 Mitsubishi Electric Corporation
Safety Precautions
(Read these precautions before use.)
This manual classifies the safety precautions into two categories:
and .
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury or
physical damage.
Depending on circumstances, procedures indicated by
cause severe injury.
It is important to follow all precautions for personal safety.
Associated Manuals
Manual name Manual No. Description
FX Series JY997D31301 Explains the FX Series PLC
3G 3G
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R521 installation, and maintenance.
FX Series JY997D45401 Explains the FX Series PLC
3GC 3GC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R533 installation, and maintenance.
FX Series JY997D16501 Explains the FX Series PLC
3U 3U
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R516 installation, and maintenance.
FX Series JY997D28701 Explains the FX Series PLC
3UC 3UC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R519 installation, and maintenance.
FX /FX /FX /FX /
3S 3G 3GC 3U
FX Series JY997D16601 Describes PLC programming for
3UC
Programming Manual MODEL CODE: basic/applied instructions and
- Basic & Applied 09R517 devices.
Instruction Edition
JY997D30401
FX 3U -64CCL Describes FX 3U -64CCL type
MODEL CODE:
User's Manual CC-Link interface block details.
09R718
MELSEC iQ-F FX5U JY997D55301 Explains the FX5U PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
(Hardware) 09R536 installation, and maintenance.
MELSEC iQ-F FX5UC JY997D61401 Explains the FX5UC PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
(Hardware) 09R558 installation, and maintenance.
Manuals for the FX PLC will be available in September 2008 or later.
3G
How to obtain manuals
For product manuals or documents, contact the Mitsubishi Electric dealer from
whom you purchased your product.
Side
B
Certification of UL, cUL standards
FX -64CCL units comply with the UL standards (UL, cUL).
3U
UL, cUL File Number: E95239
Regarding the standards that comply with the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive and LVD directive for the entire mechanical module
should be checked by the user / manufacturer. For more information please consult
with your nearest Mitsubishi product provider.
Regarding the standards that comply with the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (of the identified
standards below) and design analysis (through the creation of a technical construction
file) to the European Directive for Electromagnetic Compatibility (2014/30/EU) when
used as directed by the appropriate documentation.
Attention
This product is designed for use in industrial applications.
Type: Programmable Controller (Open Type Equipment)
Models: MELSEC FX series manufactured
3U
from March 1st, 2008 FX 3U -64CCL
Standard Remark
EN61131-2:2007 Compliance with all relevant aspects of the standard.
Programmable controllers EMI
- Equipment • Radiated Emission
r e q u i r e m e n t s a n d EMS
tests • Radiated electromagnetic field • Fast Transient burst
• Electrostatic discharge
• Voltage drops and interruptions • Conducted RF
• Power frequency magnetic field
Caution for EC Directive
• Installation in Enclosure
Programmable controllers are open-type devices that must be installed and
used within conductive control cabinets. Please use the programmable controller
while installed within a conductive shielded control cabinet. Please secure the
cabinet door to the control cabinet (for conduction). Installation within a control
cabinet greatly affects the safety of the system and aids in shielding noise from
the programmable controller.
• Control cabinet
- The control cabinet must be conductive.
may also - Ground the control cabinet with the thickest possible grounding cable.
- To ensure that there is electric contact between the control cabinet and its door,
connect the cabinet and its doors with thick wires.
- In order to suppress the leakage of radio waves, the control cabinet structure
must have minimal openings. Also, wrap the cable holes with a shielding cover
or other shielding devices.
- The gap between the control cabinet and its door must be as small as possible
by attaching EMI gaskets between them.
Shielding cover
Shielded cable
EMI gasket
Wires*
* These wires are used to improve the conductivity between the door and control cabinet.
• Configuration example inside control cabinet
L N
Power
cable
24V DC power
Ground
supply
cable
24+ 24-
Main unit FX -64CCL
3U
DA DB DG SLD
CC-Link dedicated cable
Cable clamp
(AD75CK,
MITSUBISHI) Ground
cable
Conductive control cabinet
• Wiring simplified diagram
Termi- Master
nating unit
FX
resistor
(Blue)
DA
(white)
DB
(yellow)
DG
CC-Link
SLD
Dedicated
FG
Cable
• Notes for compliance with EN61131-2:2007
General notes on the use of the power supply cable
- The FX -64CCL unit requires that the cable used for power supply is 30 m or less.
3U
- When the cable used for power supply exceeds 30 m, a noise filter (Ex. TDK-
Lambda MBS1205-22 or similar) should be placed on the 24 V DC power cabling
as close (within 500 mm) to the FX
refer to following figure.
Exceeding 30 m
FX -64CCL
3U
500 mm or less
24 V DC
1. Introduction
The CC-Link interface block FX 3U -64CCL (hereinafter called 64CCL) is a special
• Conducted Emission
function block to connect the FX 3G /FX 3GC
controller to a CC-Link network.
The 64CCL works as an intelligent device station on a CC-Link network.
• High-energy surge
Only one 64CCL unit can be connected to a single programmable controller main unit.
→ For system configuration, refer to the FX
1.1 Major Features of the FX -64CCL
3U
1) Compatible with CC-Link Ver. 2.00 and Ver. 1.10
The 64CCL is compatible with CC-Link Ver. 2.00, and enables expanded cyclic
transmission to facilitate the handling of applications requiring multiple data
processing.
In addition to Ver. 2.00, Ver. 1.10 is also supported with the 64CCL.
1.2 Incorporated Items
Check to ensure the following product and items are included in the package:
Included Item
CC-Link interface block FX -64CCL
3U
Special unit/block No. label
Dust proof protection sheet
Installation Manual (This manual)
1.3 External Dimensions and Part Names
2-φ4.5 mounting holes
[1] [2] [3] [4]
RUN
ERR.
L RUN
L ERR.
SD
RD
POWER
FX -64CCL
3U
4 (0.16")
55 (2.17")
Unit: mm (inches)
MASS (Weight): Approx. 0.3 kg (0.66 lbs)
[1] Extension cable
[2] Direct mounting hole: 2 holes of
4.5 (0.18") (mounting screw: M4 screw)
[3] POWER LED (green)
[4] Status LEDs
[5] Name plate
[6] DIN rail mounting groove (DIN rail: DIN46277, 35mm (1.38") width)
[7] DIN rail mounting hook
[8] Power supply terminal block
[9] Extension connector
[10] CC-Link connection terminal block
[11] Number of occupied stations and expanded cyclic setting switch
[12] Transmission rate setting switch
Other Termi- [13] Station number setting switch
station nating
-64CCL
3U
resistor
1.4 Power and status LEDs
DA DA
DB DB
LED
Color Status
display
DG DG
CC-Link
SLD SLD
Dedicated
FG
Cable
POWER Green
RUN Green
ERR. Red
-64CCL termination points as possible,
3U
L RUN Green
24 V DC power
Noise
supply
Filter
/FX 3U /FX 3UC /FX5U/FX5UC programmable L ERR. Red
3U -64CCL User's Manual.
SD Green
RD Green
1.5 Terminal layout
1 unit
1 sheet
1 sheet
1 manual
Without top cover
[5] [8] [9]
• Terminal screw and terminal block mounting screw size, and tightening torque
[6] 10 1 Power supply terminal block, CC-Link connection terminal block:
X X
STATION
NO.
M3 screw, 0.42 to 0.58 N
B RATE STATION
COM
SETTING
CC-Link connection terminal block mounting screw (black):
M3.5 screw, 0.66 to 0.91 N
Do not tighten the terminal block mounting screws with a torque outside the
[7]
above-mentioned range.
Failure to do so may cause equipment failures or malfunctions.
9 (0.36")
[13] [12] [11] [10]
CC-Link connection terminal block can be detached or attached. Make sure to cut
87 (3.43")
off all phases of the power supply externally.
For details on the wiring and the types of connection cables needed to connect to
the terminal blocks shown in the figure above, refer to the following manual.
1.6 Switch setting
With regard to the switch setting for station number, transmission rate, hardware
test, number of occupied stations and expanded cyclic transmission, the switch
settings become valid after 64CCL startup.
If the switch settings are changed after 64CCL startup, the L ERR. LED will flicker.
To change the switch setting, power OFF the 64CCL once, and power it ON again.
For details on the switch setting, refer to the following manual.
Description
Power is not being supplied from the external power
OFF
supply (24 V DC).
Power is being supplied from the external power
ON
supply (24 V DC).
OFF 64CCL has failed.
ON Under 64CCL normal operation.
OFF No errors.
Error in the settings, error in the parameter details,
ON
error with the communication, errors with the H/W.
OFF Offline.
ON Data link is being executed.
OFF No communication error.
The switch setting was changed after start.
Flicker There is no terminating resistor.
Influence from noise.
There is a data linking error.
ON
There is a setting error.
OFF Data is not being sent.
ON Data is being sent.
OFF Data is not being received.
ON Data is being received.
Power supply
terminal block
CC-Link connection
terminal block
•
m
• m
→ Refer to the FX
-64CCL User's Manual.
3U
→ Refer to the FX -64CCL User's Manual.
3U
